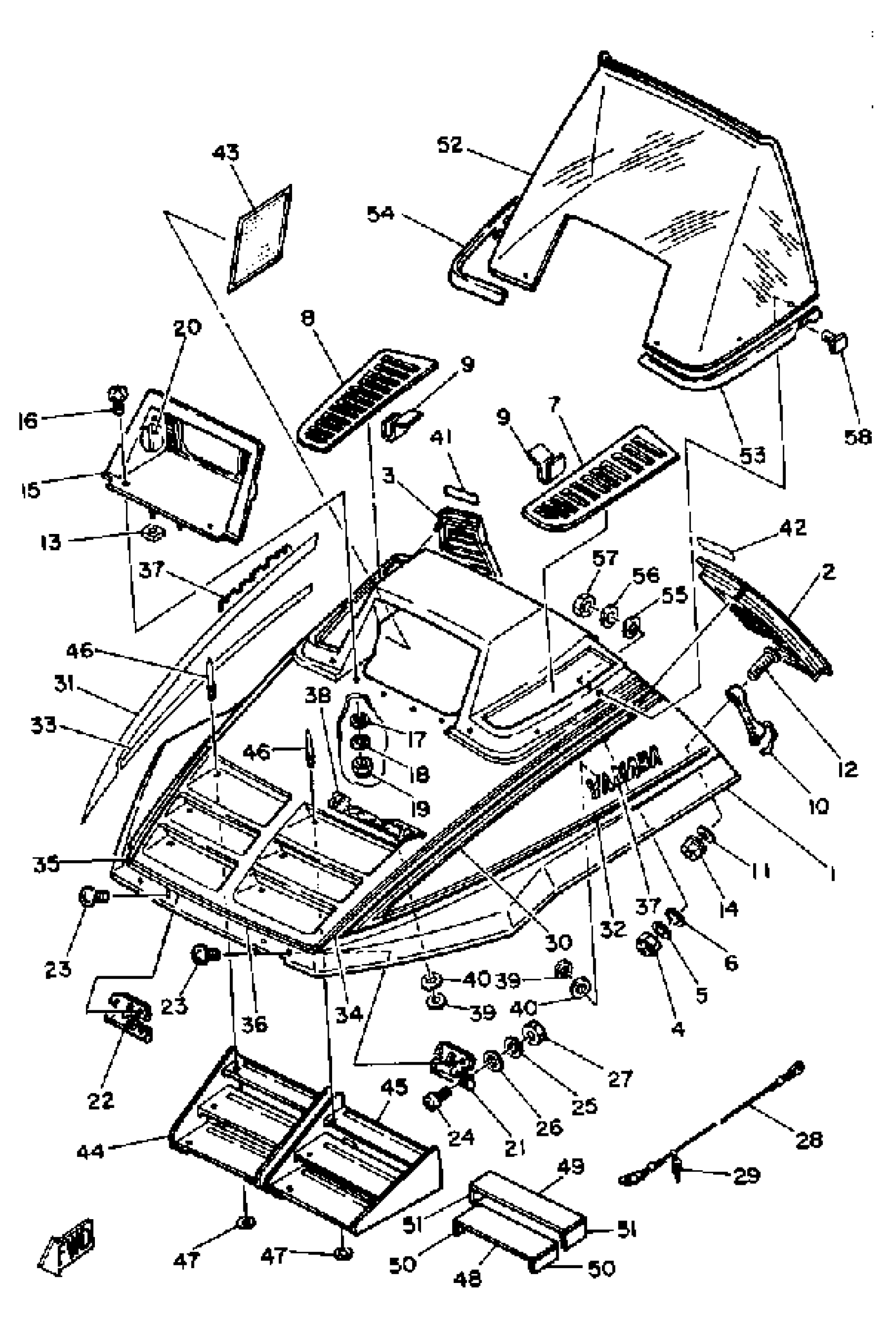

Find the part on the Shroud - Windshield EC540D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha EC540C Shroud - Windshield EC540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8K1-W7711-00-00

1
Out of stock

2

LOUVER 1

8H8-77131-01-00

1
Out of stock

3

LOUVER 2

8H8-77132-01-00

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

7

LOUVER 3

8H8-77133-00-00

1
Out of stock

8

LOUVER 4

8H8-77134-00-00

1
Out of stock

9

CLIP

90468-05094-00

1
Out of stock

10

LATCH ASSEMBLY

8K1-77170-00-00

1
Out of stock

11

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

12

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

13

NUT, SPRING (1L9)

90183-04012-00

1
Out of stock

14

NUT, NYLON

95707-06300-00

1

$3.20

In stock

15

BODY, HEADLIGHT

8H8-84311-00-00

1
Out of stock

16

SCREW, BINDING

98907-05020-00

—

$6.18

In stock

17

WASHER, PLAIN (3GDF)

90201-051K1-00

—

$6.46

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

20

INSULATOR

8H8-7712E-00-00

1
Out of stock

21

HINGE ASSEMBLY

8H8-77140-00-00

1
Out of stock

22

HINGE ASSEMBLY 2

8H8-7714A-00-00

1
Out of stock

23

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

24

SCREW, BINDING

98907-06020-00

—

$6.18

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

STOPPER, SHROUD

8K1-77118-00-00

1
Out of stock

29

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

30

ORNAMENT 1

(8K1-77163-00-00)

1
Out of stock

31

ORNAMENT 2

(8K1-77164-00-00)

1
Out of stock

32

ORNAMENT 3

(8K1-77169-00-00)

1
Out of stock

33

ORNAMENT 5

(8K1-77114-00-00)

1
Out of stock

34

STRIPE 1

8K1-77281-00-00

1
Out of stock

35

STRIPE 2

(8K1-77282-00-00)

1
Out of stock

36

STRIPE 4

8K1-77284-00-00

1
Out of stock

37

EMBLEM 1

8H8-77141-00-00

1
Out of stock

38

EMBLEM 2

(8H8-77142-00-00)

1
Out of stock

39

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

40

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

41

LABEL, SAFETY

288-21659-00-00

1
Out of stock

42

LABEL, WARNING 5

(8A5-77765-00-00)

1
Out of stock

43

INDICATOR 3

(8K1-77743-00-00)

1
Out of stock

44

LOUVER 5

8H8-77109-00-00

1
Out of stock

45

LOUVER 6

8H8-77108-00-00

1
Out of stock

46

RIVET, BLIND

(90267-48055-00)

1
Out of stock

47

WASHER, PLATE

90201-04027-00

—
Out of stock

48

DAMPER, NOISE 11

8H8-77271-00-00

1
Out of stock

49

DAMPER, NOISE 12

8H8-77272-00-00

1
Out of stock

50

DAMPER, NOISE 14

8H8-77274-00-00

1
Out of stock

51

DAMPER, NOISE 14

8H8-77274-00-00

1
Out of stock

52

WINDSHIELD

8N7-77210-00-00

1
Out of stock

53

TRIM, LOWER

8K1-77214-00-00

1
Out of stock

54

TRIM 3

8K1-77215-00-00

1
Out of stock

55

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

56

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

57

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

58

ORNAMENT SET

(8K1-70000-00-00)

1
Out of stock

58

BOLT

90109-05523-00

1
Out of stock
