1979 Yamaha EC540C Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

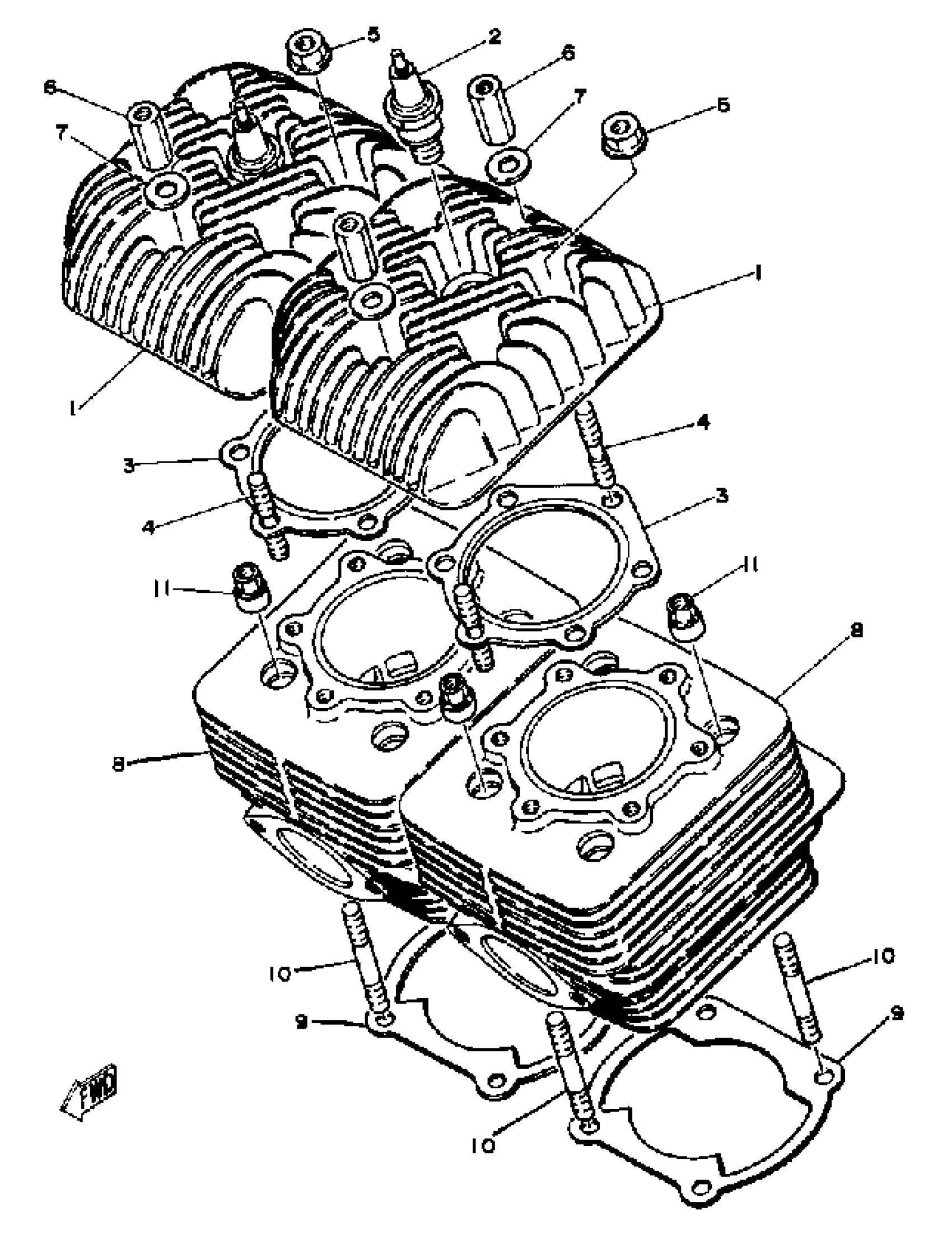

1979 Yamaha EC540C Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8H8-11111-00-00

1
Out of stock

2

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

1
Out of stock

3

GASKET, CYLINDER HEAD 1

83R-11181-00-00

1

$30.73

In stock

4

BOLT STUD 363111790000

90116-08104-00

1

$14.38

In stock

5

NUT, FLANGE

95704-08500-00

1
Out of stock

6

NUT (8H8)

90179-08269-00

1

$10.55

In stock

7

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

8

CYLINDER 1

8H8-11311-00-00

1
Out of stock

9

GASKET, CYLINDER

89N-11351-00-00

1

$7.80

In stock

10

BOLT, STUD (8H8)

90116-08302-00

1
Out of stock

11

NUT (8H8)

90179-08268-00

1

$9.23

In stock
