1979 Yamaha EC540C Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

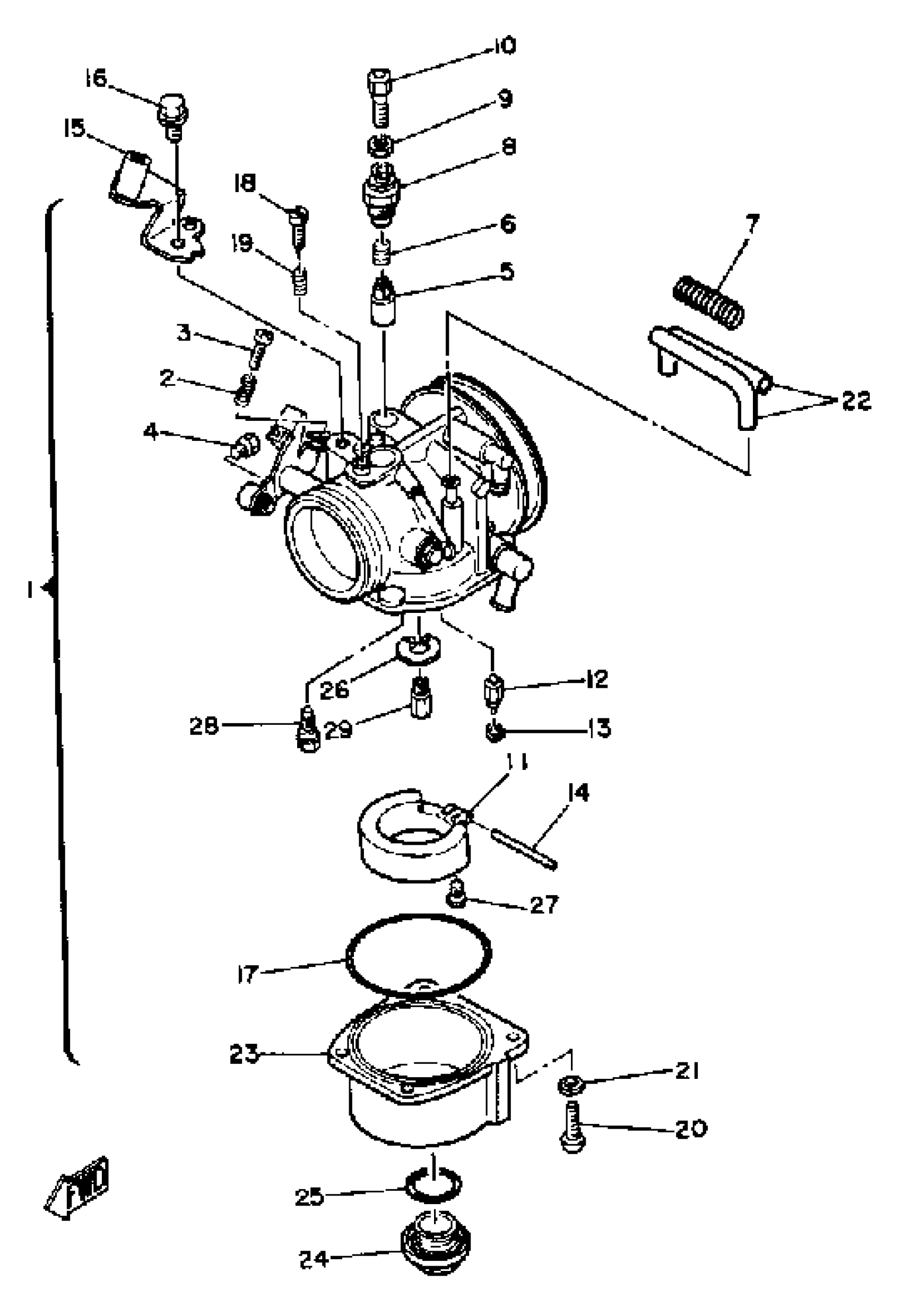

1979 Yamaha EC540C Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

8H8-14101-01-00

1
Out of stock

2

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

3

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

4

SCREW

(8F3-14591-00-00)

1
Out of stock

5

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

6

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

7

. SPRING, COMPRESSION

90501-08535-00

1
Out of stock

8

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

9

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

10

1

$19.06

In stock

11

FLOAT

8G6-14985-01-00

1

$32.43

In stock

12

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

13

CLIP

633-14159-00-00

1

$13.88

In stock

14

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

15

. PLATE, STAY

8G6-14572-00-00

1
Out of stock

16

. SCREW

8G6-14592-00-00

1
Out of stock

17

WASHER, FLOAT CHAMBER

8G6-14984-00-00

—

$16.62

In stock

18

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

19

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

20

SCREW, PN/HD.W/WSHR

(97602-04114-00)

1
Out of stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

22

. NET, FILTER

8G6-14994-01-00

1
Out of stock

23

BODY, FLOAT CHAMBER

(8H6-14980-00-00)

1
Out of stock

24

. ROD

8M7-14992-00-00

1
Out of stock

25

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

26

CLIP

(8A5-14159-00-00)

1
Out of stock

27

SCREW, FLAT

98707-04008-00

1
Out of stock

28

. JET

8G6-14948-25-00

1
Out of stock

29

. JET, MAIN #135

8A6-14516-35-00

1
Out of stock

29

. JET, MAIN #140

8A6-14516-40-00

1
Out of stock

29

. JET, MAIN #145

8A6-14516-45-00

1
Out of stock
← Shroud EC540C Carburetor EC540C →
