1979 Yamaha EC540C Exhaust EC540C - D Diagram

← All diagrams

Find the part on the Exhaust EC540C - D diagram for your 1979 Yamaha EC540C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

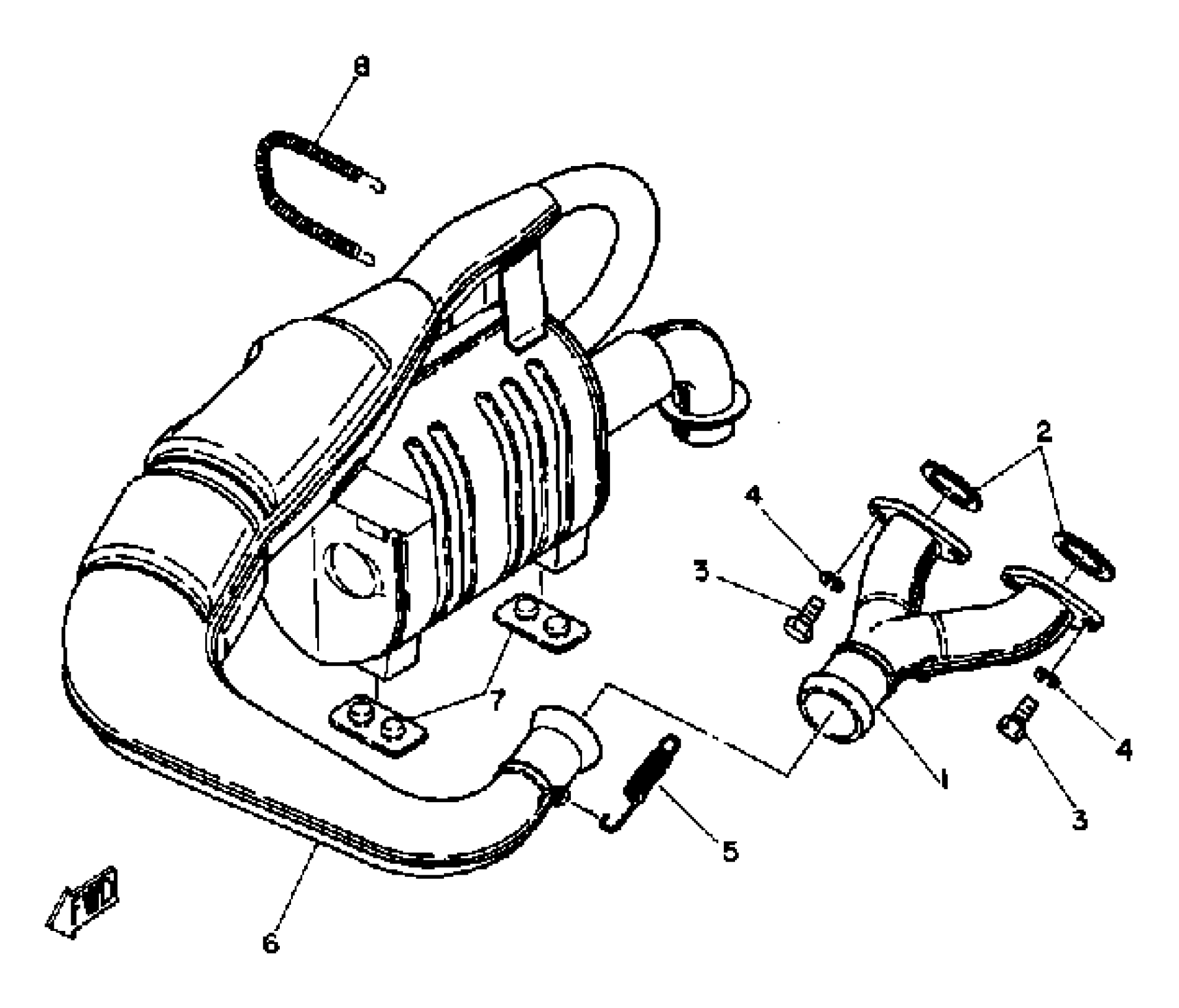

1979 Yamaha EC540C Exhaust EC540C - D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

8H8-14610-00-00

1
Out of stock

3

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

6

MUFFLER ASSEMBLY L

(8H8-14710-00-00)

1
Out of stock

7

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock

8

SPRING, TENSION

90506-16198-00

1
Out of stock
← Engine Bracket EC540D OIL Pump EC540C - D →
