1991 Suzuki DR650SM OIL Pump Diagram

← All diagrams

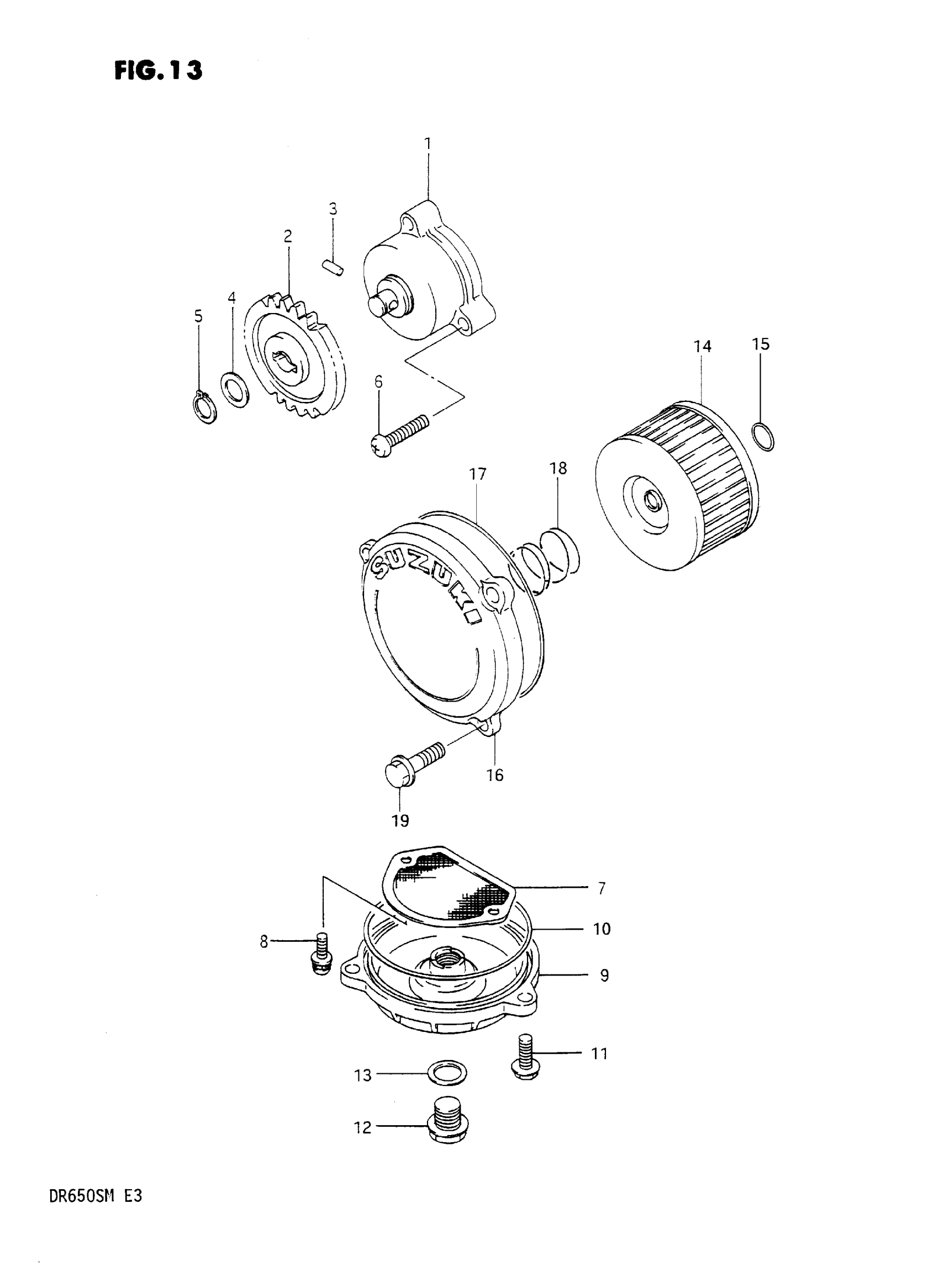

Find the part on the OIL Pump diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki DR650SM OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-12D00

1
Out of stock

2

GEAR, DRIVEN (NT:22) This part replaces 16331-12D00.

16331-12D10

1
Out of stock

3

PIN

09261-04009

1
Out of stock

4

WASHER

08221-10185

1
Out of stock

5

CIRCLIP

08331-31109

1
Out of stock

6

SCREW This part replaces 02112-06258.

02112-06257

3
Out of stock

7

STRAINER, ENGINE OIL

16520-14A00

1
Out of stock

8

SCREW This part replaces 02112-75126.

02112-7512A

2
Out of stock

9

CAP, OIL STRAINER

16523-37402

1
Out of stock

10

O RING (D:2.4,ID:82)

09280-82001

1

$5.01

In stock

11

BOLT This part replaces 01517-06207.

01550-06207

3
Out of stock

12

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

13

GASKET

09168-14004

1
Out of stock

14

FILTER, ENGINE OIL This part replaces 16510-37440.

16510-37450

1
Out of stock

15

O RING (D:2.4,ID:15.8)

09280-16005

1
Out of stock

16

CAP, OIL FILTER

16512-12D00

1
Out of stock

17

.O RING (D:2.4,ID:73)

09280-72001

1
Out of stock

18

SPRING

09440-21004

1
Out of stock

19

BOLT This part replaces 01547-06165.

01547-0616B

3
Out of stock
