1991 Suzuki DR650SM AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

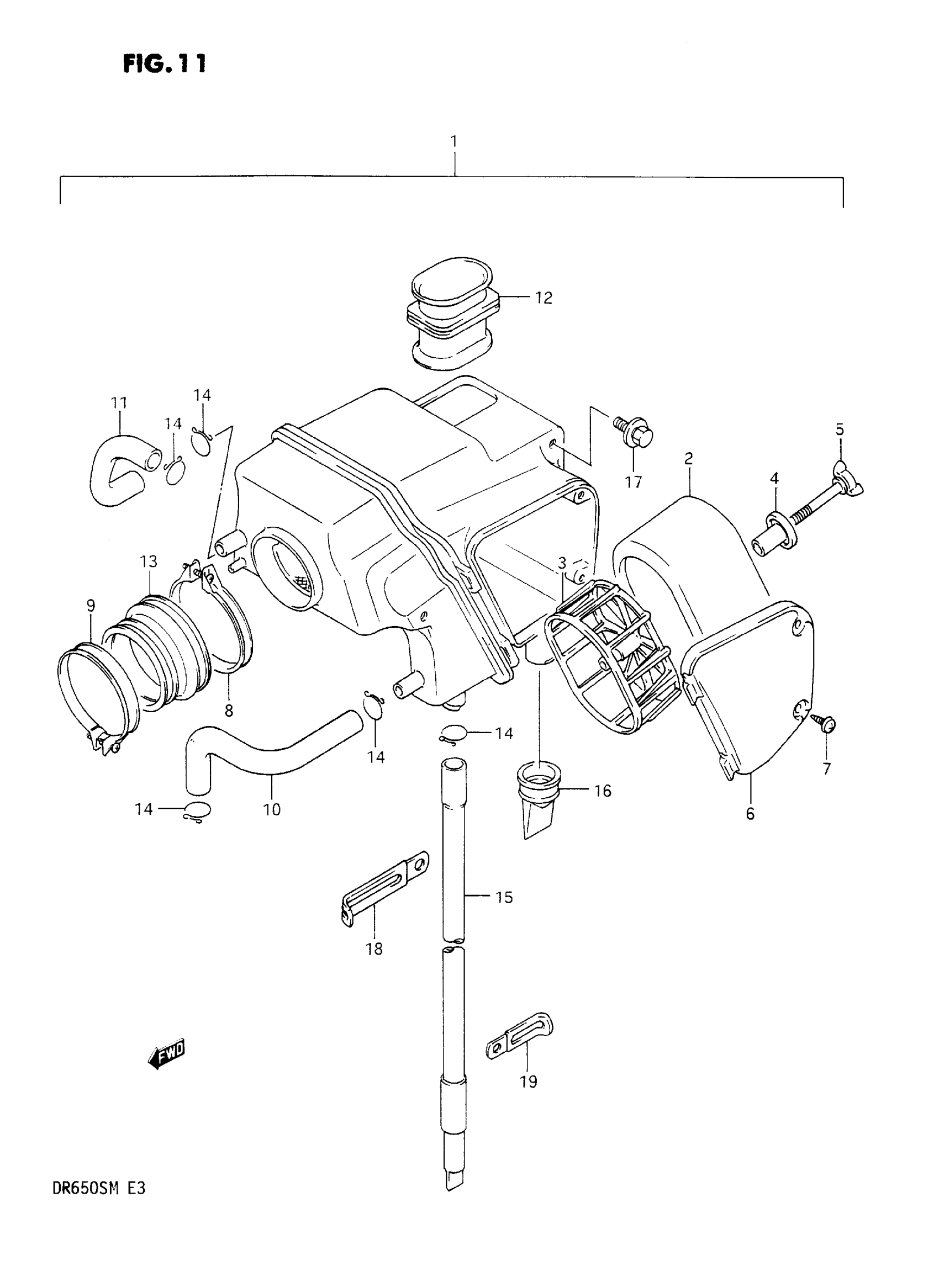

1991 Suzuki DR650SM AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 16 This part replaces 13700-12D00.

13700-12D20

1
Out of stock

2

FILTER

13780-12D00

1
Out of stock

3

HOLDER

13791-12D00

1
Out of stock

4

SPACER

13796-12D00

1
Out of stock

5

1

$3.70

In stock

6

CAP

13740-12D00

1
Out of stock

7

SCREW This part replaces 02142-05164.

02142-0516A

2
Out of stock

8

CLAMP This part replaces 09402-74207.

09402-74208

1
Out of stock

9

CLAMP This part replaces 09402-64208.

09402-64203

1
Out of stock

10

TUBE, BREATHER This part replaces 13851-12D00.

13851-12D10

1
Out of stock

11

TUBE, CONNECTING

13771-12D00

1
Out of stock

12

TUBE, INLET

13891-12D00

1
Out of stock

13

TUBE, OUTLET

13881-12D00

1
Out of stock

14

CLIP

09401-14301

5
Out of stock

15

TUBE,DRAIN This part replaces 13870-12D00.

13870-11459

1
Out of stock

16

CAP, DRAIN

13878-12D00

1
Out of stock

17

BOLT (6X14)

09116-06151

3
Out of stock

18

CLAMP This part replaces 09404-08403.

09404-08420

1
Out of stock

19

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock
