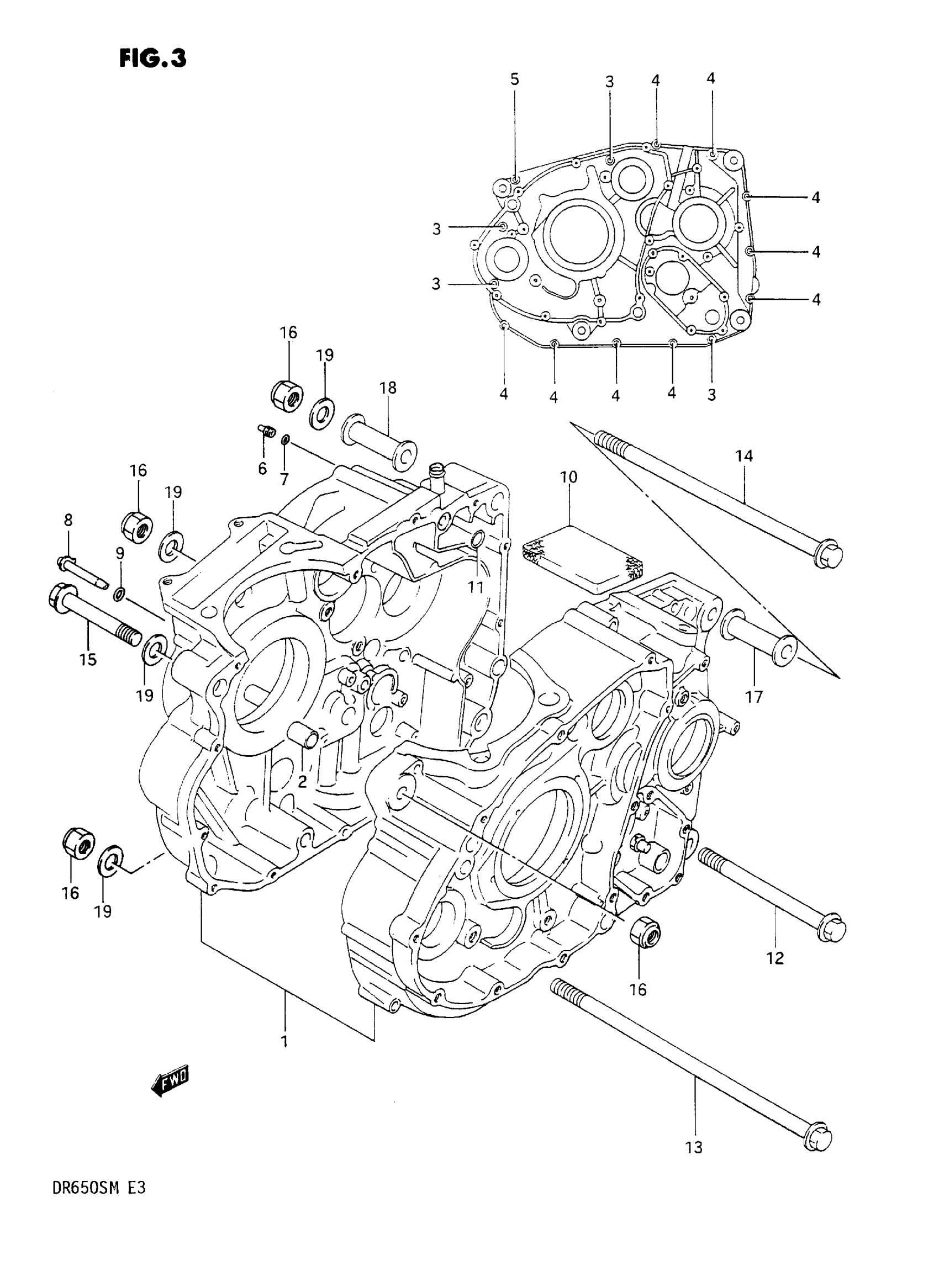

Suzuki DR650SM (1991) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 11301-12830.

11301-12832

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06605.

01547-0660B

$2.87

4

BOLT This part replaces 01547-06404.

01547-0640B

$2.74

5

BOLT This part replaces 01547-06304.

01547-06307

$2.06

6

JET, OIL

09493-24012

Unavailable

7

O RING

09280-04004

$1.76

8

PIPE, PISTON COOLING This part replaces 11390-12D00.

11390-12D01

Unavailable

9

O RING, CRANKCASE (ID:7.8) This part replaces 09280-08016.

09280-08012

$3.32

10

SEPARATOR, OIL BREATHER This part replaces 11328-14A02.

11328-14A03

Unavailable

11

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.33

12

BOLT (10X130) | MODEL L This part replaces 09103-10065.

09103-10237

$10.53

12

BOLT (10X130) | MODEL M

09103-10237

$10.53

13

BOLT,10X230 | MODEL L This part replaces 09103-10099.

09103-10238-XC0

$21.85

13

BOLT,10X230 | MODEL M This part replaces 09103-10238.

09103-10238-XC0

$21.85

14

BOLT (10X235) | MODEL L This part replaces 09103-10084.

09103-10239

$22.70

14

BOLT (10X235) | MODEL M

09103-10239

$22.70

15

BOLT (10X80) | MODEL L This part replaces 09103-10098.

09103-10240

$5.75

15

BOLT (10X80) | MODEL M

09103-10240

$5.75

16

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.21

17

SPACER (L:55)

11610-14A00

Unavailable

18

SPACER (L:65)

11610-45410

Unavailable

19

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.83
