1991 Suzuki DR650SM CAM Chain Diagram

← All diagrams

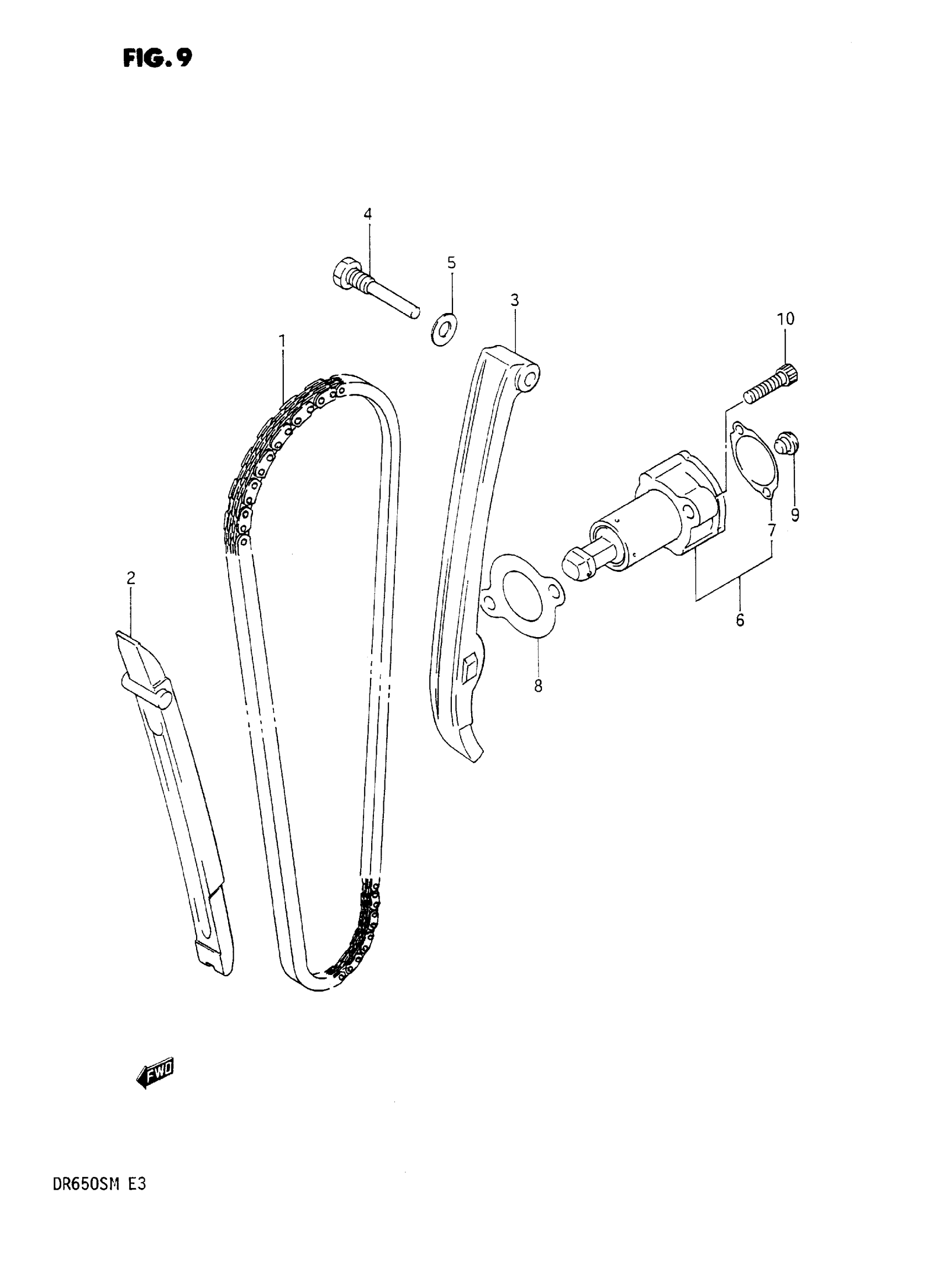

Find the part on the CAM Chain diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki DR650SM CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE | 124LE

12760-37400

1
Out of stock

2

GUIDE, CAM CHAIN

12771-37400

1
Out of stock

3

TENSIONER,CAM C This part replaces 12811-37401.

12811-37402

1
Out of stock

4

BOLT

12812-32410

1
Out of stock

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 This part replaces 12830-15500.

12830-33C10

1
Out of stock

7

GASKET This part replaces 12838-38200.

12838-38200-H17

1
Out of stock

8

.GASKET,TENSIONER ADJUSTER This part replaces 12837-24A00-H17.

12837-24A10

1
Out of stock

9

PLUG

12839-38200

1
Out of stock

10

BOLT This part replaces 07110-06255.

07130-0625B

2
Out of stock
