1991 Suzuki DR650SM Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

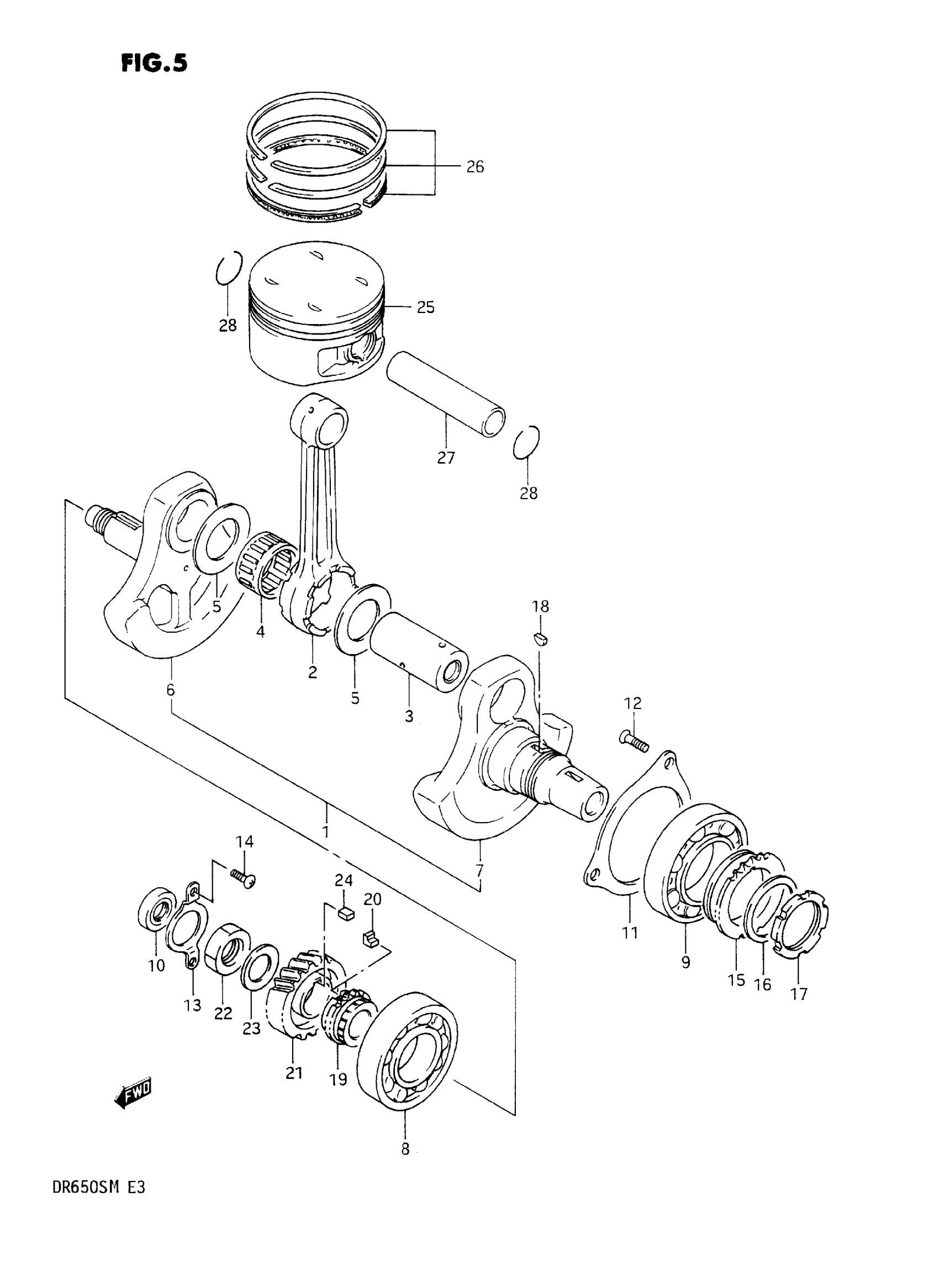

1991 Suzuki DR650SM Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-12D00

1
Out of stock

2

ROD, CONNECTING

12161-12D00

1
Out of stock

3

PIN, CRANK This part replaces 12210-12D00.

12210-12D10

1
Out of stock

4

RN 35X45X25 BRG This part replaces 09263-35029.

09263-35032

1
Out of stock

5

WASHER

09160-35005

2
Out of stock

6

CRANKSHAFT, RH

12221-12D01

1
Out of stock

7

CRANKSHAFT, LH

12261-12D01

1
Out of stock

8

BEARING, RH (35X80X21)

09262-35009

1
Out of stock

9

BEARING, LH This part replaces 09262-45003.

09262-45011

1
Out of stock

10

OIL SEAL (16X30X6)

09282-16002

1
Out of stock

11

PLATE, LH

12541-37400

1
Out of stock

12

SCREW

02122-06167

3
Out of stock

13

PLATE, RH

12548-37400

1
Out of stock

14

SCREW

02112-05087

2

$1.55

In stock

15

SPROCKET, BALANCER DRIVE NT:2 | NT:25 This part replaces 12662-37401.

12662-37402

1
Out of stock

16

WASHER

09164-40003

1
Out of stock

17

NUT This part replaces 12664-37401.

12664-44B00

1
Out of stock

18

KEY

08341-31039

1
Out of stock

19

SPROCKET, DRIVE (NT:21)

12731-37400

1
Out of stock

20

KEY

12749-32400

1
Out of stock

21

GEAR, PRIMARY DRIVE (NT:30)

21111-12D00

1
Out of stock

22

NUT This part replaces 09140-20008.

09140-20013

1
Out of stock

23

LOCK WASHER

09164-20003

1
Out of stock

24

KEY, GEAR

09421-07002

1
Out of stock

25

PISTON This part replaces 12111-12D02-0E0.

12111-12D09-0F0

1
Out of stock

25

PISTON SET,OS:0 | OPT This part replaces 12111-12D02-050.

12100-12D01-050

1
Out of stock

25

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-12D02-100.

12100-12D01-100

1
Out of stock

26

RING SET, PISTON This part replaces 12140-12D30.

12140-12D11

1
Out of stock

26

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-12D30-050.

12140-12D11-050

1
Out of stock

26

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-12D30-100.

12140-12D11-100

1
Out of stock

27

PIN, PISTON

12151-14A01

1
Out of stock

28

CIRCLIP

09381-23003

2
Out of stock
