1991 Suzuki DR650SM Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1991 Suzuki DR650SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

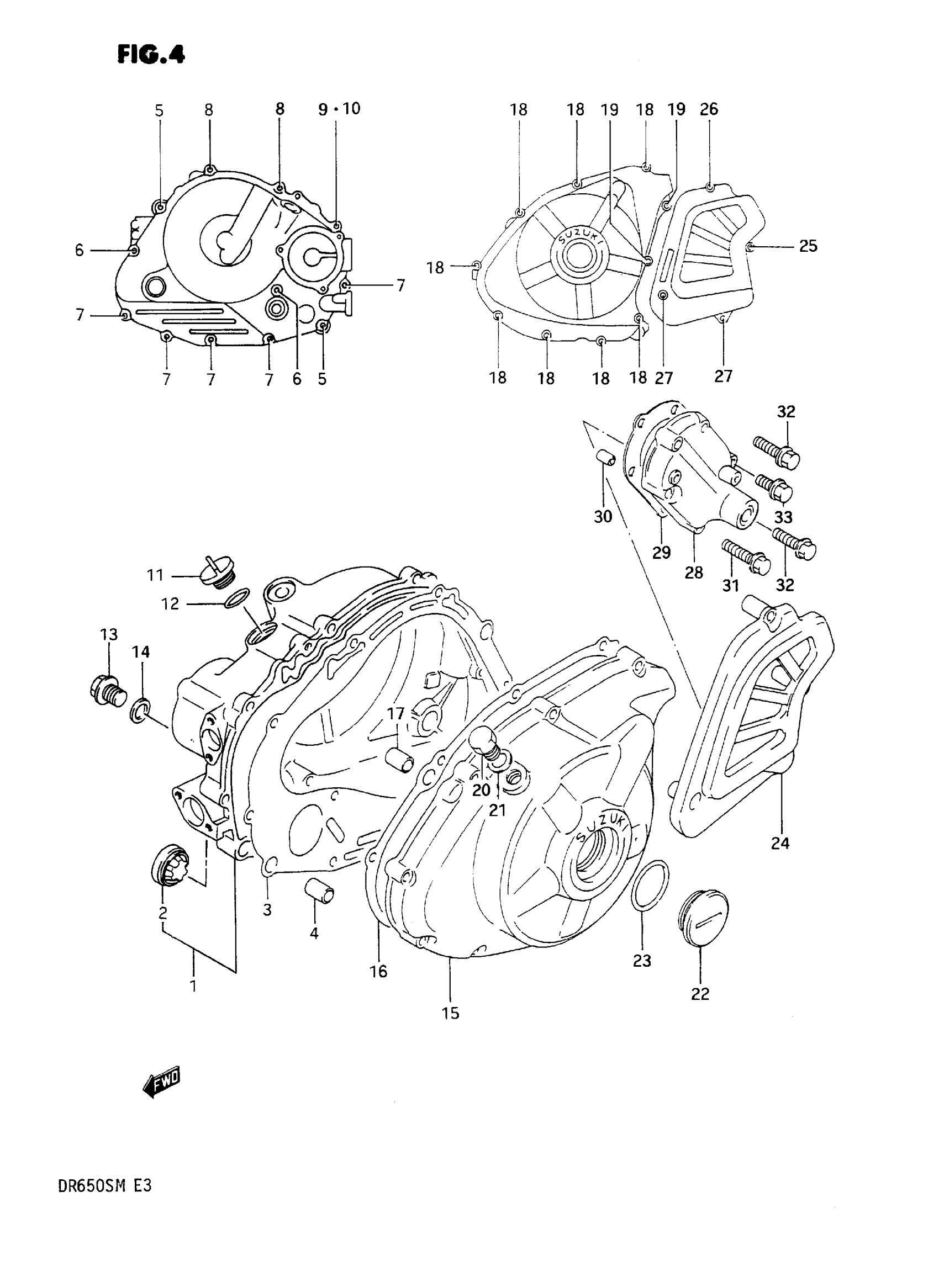

1991 Suzuki DR650SM Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-12D00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER This part replaces 11482-12D00.

11482-12D01

1
Out of stock

4

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

5

BOLT This part replaces 01547-06505.

01547-0650B

2
Out of stock

6

BOLT This part replaces 01547-06404.

01547-0640B

2
Out of stock

7

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

5
Out of stock

8

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

2
Out of stock

9

BOLT (6X25)

09103-06141

1
Out of stock

10

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

11

PLUG (20X10) This part replaces 09259-20016.

09259-20019

1
Out of stock

12

O RING

09280-17003

1
Out of stock

13

PLUG, OIL CHECK

09247-14015

1
Out of stock

14

GASKET

09168-14004

1
Out of stock

15

COVER, MAGNETO

11351-12D00

1
Out of stock

16

GASKET, MAGNETO INNER COVER This part replaces 11483-12D00.

11483-12D10

1
Out of stock

17

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

18

BOLT This part replaces 01547-06304.

01547-06307

8
Out of stock

19

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

2
Out of stock

20

PLUG, T.D.C

09247-12103

1
Out of stock

21

GASKET

09168-12002

1
Out of stock

22

PLUG, SHAFT HOLE This part replaces 09259-36013.

09259-36016-20H

1
Out of stock

23

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

24

COVER, ENGINE SPROCKET This part replaces 11361-12D00.

11361-14A01

1
Out of stock

25

BOLT This part replaces 01547-06454.

01547-0645B

1
Out of stock

26

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

1
Out of stock

27

..BOLT This part replaces 01547-06205.

01547-0620B

2
Out of stock

28

COVER, GEAR SHIFT

11371-12D10

1
Out of stock

29

GASKET, GEAR SHIFT COVER This part replaces 11485-12D00.

11485-12D01

1
Out of stock

30

PIN

04211-09129

2
Out of stock

31

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

1
Out of stock

32

BOLT This part replaces 01547-06304.

01547-06307

4
Out of stock

33

..BOLT This part replaces 01547-06205.

01547-0620B

1
Out of stock
