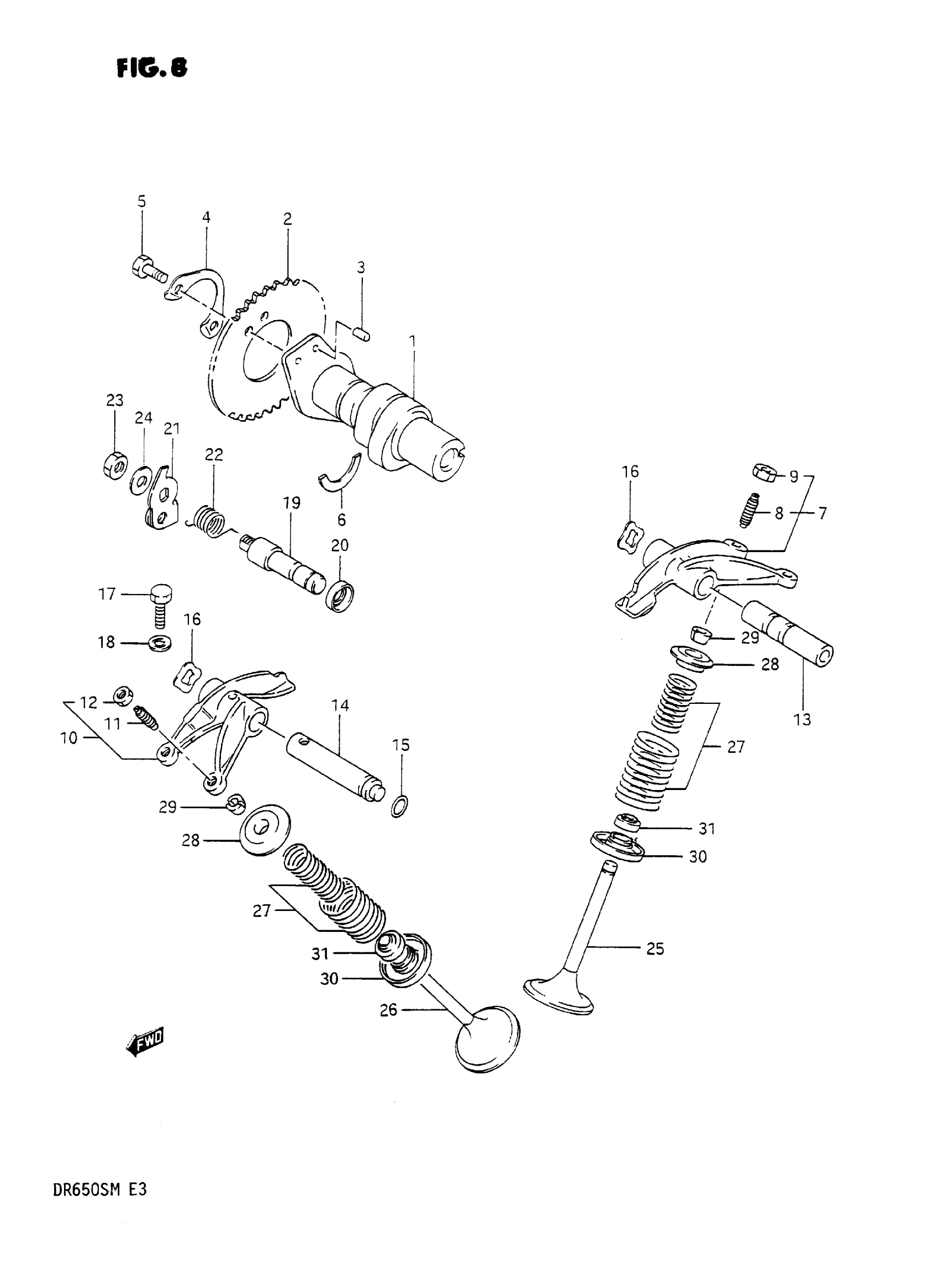

Suzuki DR650SM (1991) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-12D00

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.60

5

BOLT (6X12.5)

09111-06027

$1.87

6

C RING

09390-25003

$2.56

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9

12840-12D00

$117.75

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-37401

$109.50

11

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, ROCKER ARM IN | L:73

12861-12D00

$33.02

14

SHAFT, ROCKER ARM EX | L:78.5

12871-14A00

$33.02

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

16

WASHER

09164-12018

$1.41

17

BOLT This part replaces 01517-06305.

01550-0630A

$2.31

18

GASKET

09168-06023

$2.01

19

SHAFT, DECOMP

12941-12D00

Unavailable

20

OIL SEAL

09282-10014

$6.04

21

LEVER, DECOMP SHAFT

12942-12D00

Unavailable

22

SPRING This part replaces 09448-17028.

09448-17028-XC0

Unavailable

23

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.87

24

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

25

VALVE, INTAKE

12911-12D00

Unavailable

26

VALVE, EXHAUST

12912-37400

$92.57

27

SPRING SET, VALVE

12920-37402

$20.33

28

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$9.17

29

COTTER, VALVE

12932-45010

$2.60

30

SEAT,VALVE SPRI This part replaces 12933-37400.

12933-37401

$3.39

31

OIL SEAL

09289-07002

$7.31
