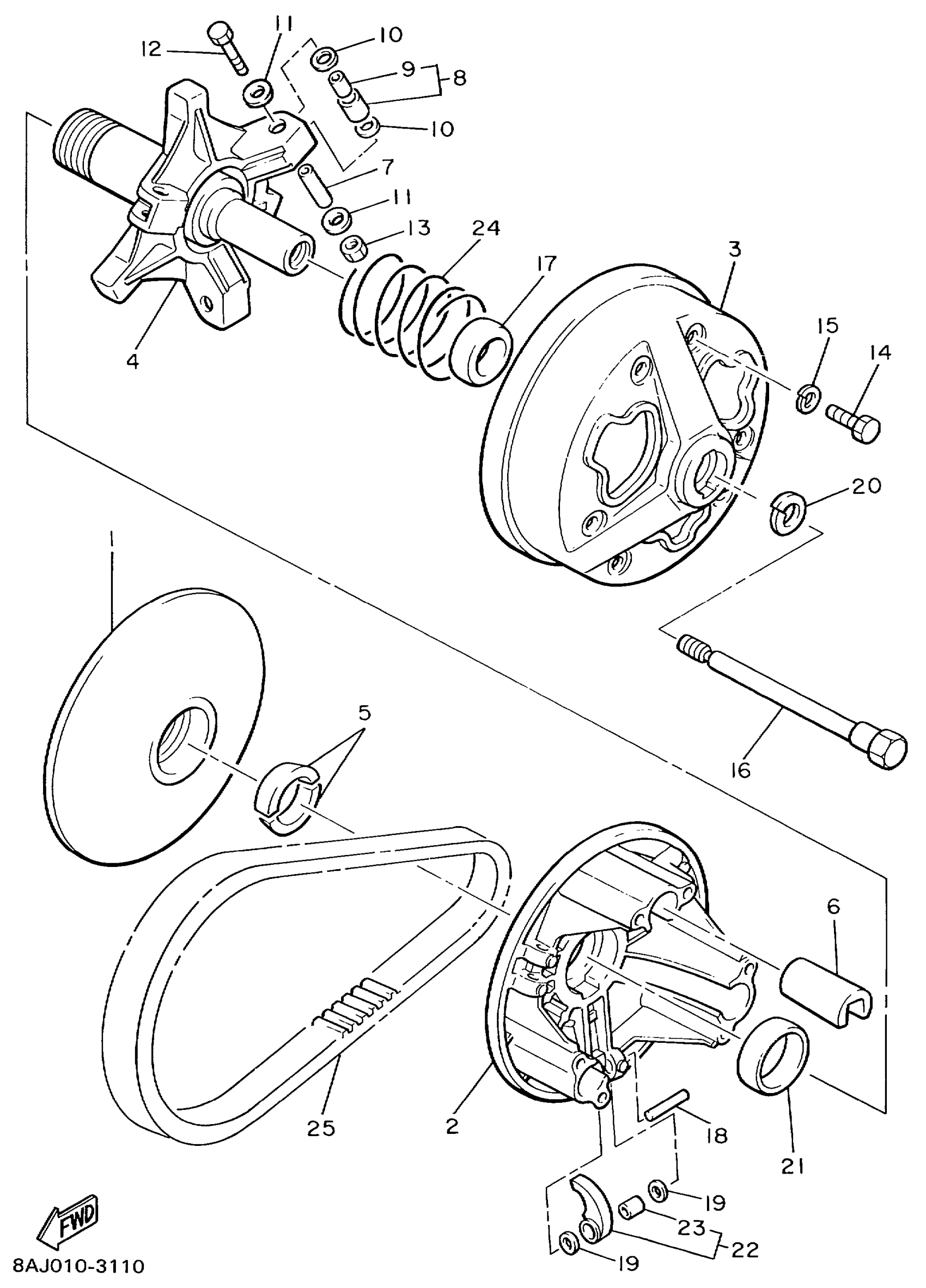

Yamaha CS340EC (OVATION LE) 8BE6 1999 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

84J-17611-00-00

Unavailable

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

Unavailable

3

CAP

8V0-17631-00-00

Unavailable

4

. SPIDER COMPLETE

8V0-17640-02-00

Unavailable

5

STOPPER

8V0-17639-00-00

$10.02

6

SLIDER

88X-17653-00-00

$10.97

7

COLLAR(83R)

90387-057W5-00

$11.42

8

ROLLER, WITH BUSH

87M-W176B-10-00

$43.39

9

. BUSH

90386-08179-00

Unavailable

10

WASHER, PLATE(87G)

90202-08205-00

$6.47

11

WASHER, PLATE(83R)

90201-050P9-00

$2.09

12

BOLT, HEXAGON

97027-05035-00

Unavailable

13

NUT, U

95617-05100-00

$6.35

14

BOLT, HEXAGON

97017-06030-00

$2.86

15

WASHER(6TA)

92907-06600-00

$1.49

16

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

17

BUSH(83R)

90389-28032-00

Unavailable

18

PIN, DOWEL (8V8)

93607-44190-00

Unavailable

19

WASHER, PLATE (8V8)

90201-077F5-00

Unavailable

20

WASHER(JN5)

92907-16100-00

Unavailable

21

BUSH (81H)

90389-40029-00

Unavailable

22

WEIGHT,WITH BUSH

85L-W176A-00-00

Unavailable

23

BUSH(83V)

90386-07152-00

Unavailable

24

SPRING, COMPRESSION

90501-520A9-00

Unavailable

24

SPRING, COMPRESSION

90501-55485-00

Unavailable

24

SPRING, COMPRESSION

90501-554F6-00

Unavailable

25

V-BELT

820-17641-01-00

$28.77
