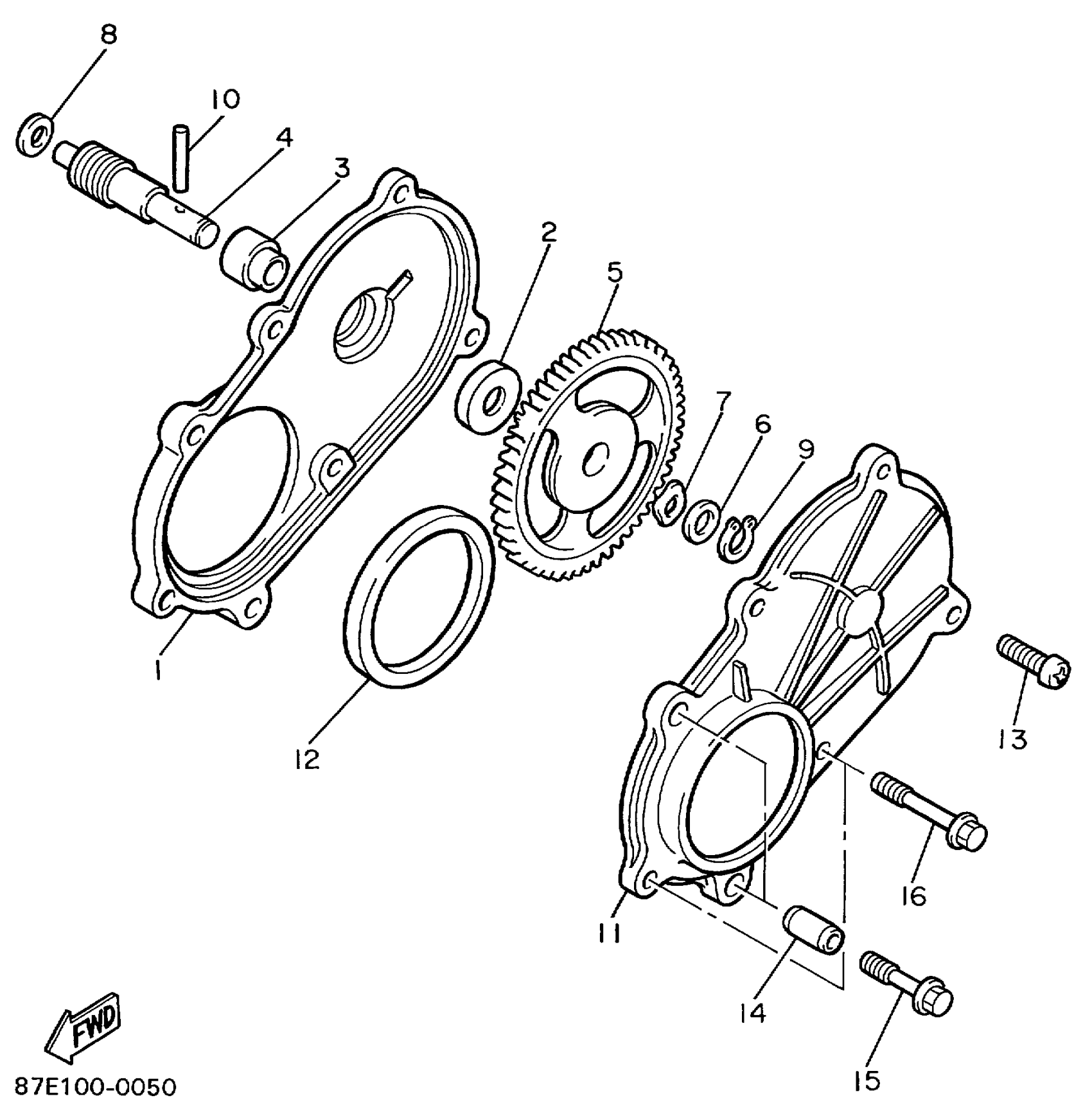

Yamaha CS340EC (OVATION LE) 8BE6 1999 PUMP DRIVE GEAR Diagram

COVER, OIL PUMP

85L-15416-00-00

Unavailable

OIL SEAL (J10)

93101-10090-00

$5.87

METAL, WORM SHAFT OUTER

821-13176-00-00

$6.04

SHAFT, WORM

85L-13175-00-00

Unavailable

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

PLATE, CAM THRUST

137-13148-00-00

Unavailable

WASHER, WAVE (137)

90206-11016-00

Unavailable

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

CIRCLIP(10W)

99009-10400-00

$3.72

PIN,DOWEL (137)

93603-22028-00

$2.20

COVER, OIL PUMP 2

85L-15426-02-00

Unavailable

OIL SEAL (8V0)

93104-52079-00

$11.66

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.32

PIN, DOWEL(8AH)

91808-22019-00

$6.53

BOLT, FLANGE

95817-06035-00

$5.12

BOLT, FLANGE

95817-06025-00

Unavailable
