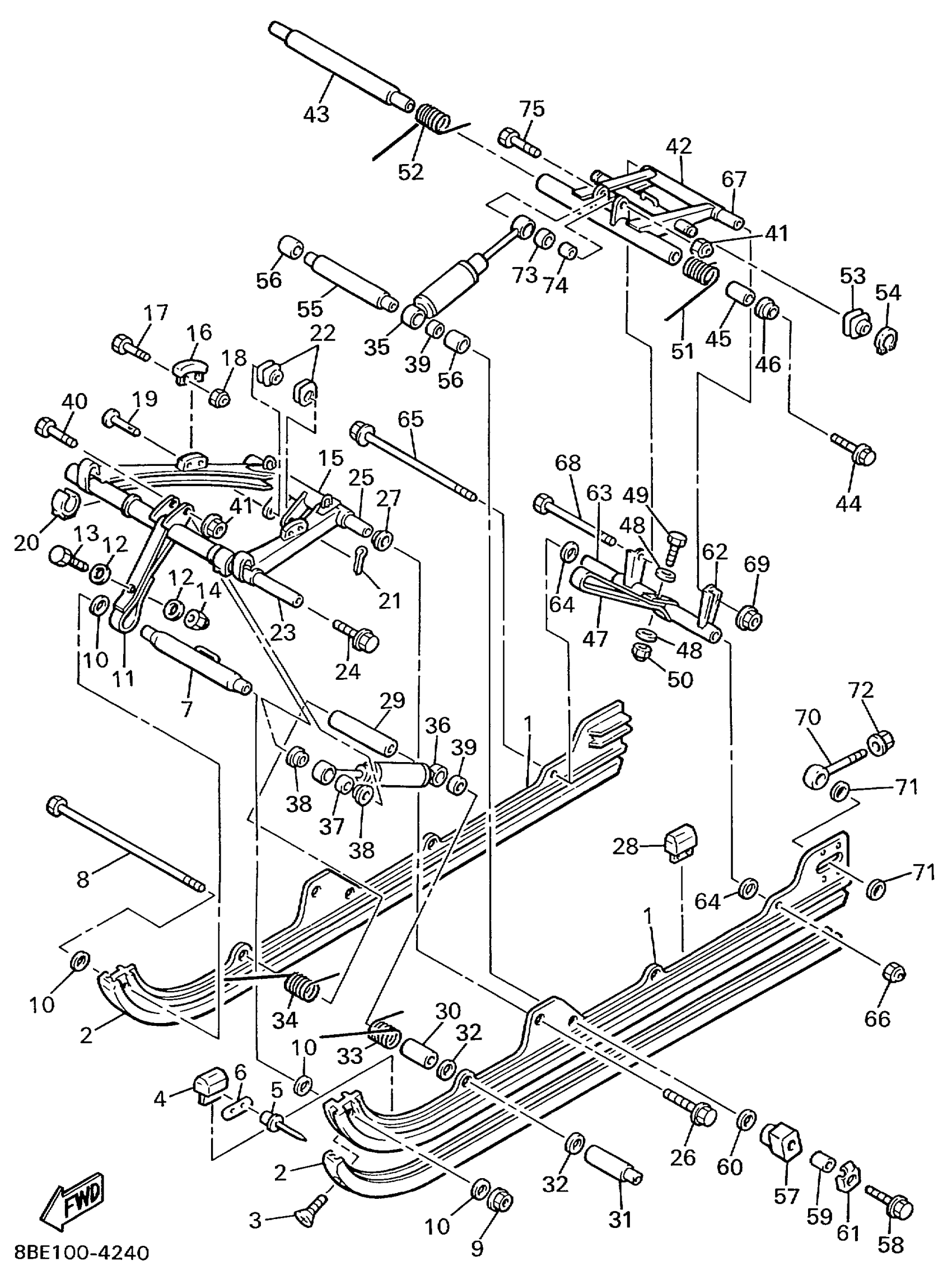

Yamaha CS340EC (OVATION LE) 8BE6 1999 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME,SLIDING

85L-W4741-00-00

Unavailable

2

RUNNER, SLIDING 1 (8Y3-47421-00-00)

8Y3-47421-00-XX

Unavailable

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

4

DAMPER 1

8V0-47456-00-00

Unavailable

5

RIVET, BLIND (8K4)

90267-48062-00

$3.38

6

PLATE, DAMPER

8K2-47458-01-00

$2.45

7

BRACKET 1

8V0-47415-00-00

Unavailable

8

BOLT,HEXAGON

97027-08255-00

Unavailable

9

NUT, NYLON

95717-08300-00

$2.57

10

WASHER(6TA)

92907-08600-00

$2.52

11

STOPPER 1

8Y3-47495-00-00

Unavailable

12

WASHER, PLATE

90201-06747-00

$6.17

13

BOLT, HEXAGON

97017-06025-00

$2.98

14

NUT, NYLON

95707-06300-00

$3.20

15

ARM, PIVOT 1

85L-47331-00-00

Unavailable

16

RUNNER, SLIDING 2

8F3-47422-01-00

$15.63

17

BOLT, HEXAGON

97017-06025-00

$2.98

18

NUT, NYLON

95707-06300-00

$3.20

19

PIN, CLEVIS (90240-12107-00)

90240-12136-00

Unavailable

20

HOOK 2

8V0-47447-01-00

$18.52

21

PIN COTTER

91490-30025-00

Unavailable

22

HOOK 2

8R4-47447-00-00

Unavailable

23

SHAFT 1

8A5-47465-02-00

$46.62

24

BOLT (8V0)

90109-10771-00

$5.00

25

SHAFT 3

8K2-47485-00-00

Unavailable

26

BOLT, FLANGE

95817-10030-00

$6.17

27

COLLAR (8U7)

90387-105G6-00

$6.48

28

DAMPER 1

8V0-47456-00-00

Unavailable

29

COLLAR

90387-160M7-00

Unavailable

30

COLLAR

8V0-47319-00-00

Unavailable

31

COLLAR

90387-166M8-00

Unavailable

32

WASHER, PLATE

90201-161E5-00

Unavailable

33

SPRING, FRONT 1

85L-47471-00-00

Unavailable

34

SPRING,FRONT.2

85L-47472-00-00

$54.54

35

SHOCK ABSORBER

85L-47480-00-00

Unavailable

36

SHOCK ABSORBER 2

85L-47481-00-00

Unavailable

37

COLLAR

90387-084J8-00

Unavailable

38

COLLAR (8U7)

90387-123G4-00

$3.55

39

BUSH, PIVOT

8V0-47371-00-00

Unavailable

40

BOLT(3HN)

97017-08045-00

$5.80

41

NUT, NYLON

95717-08300-00

$2.57

42

ARM, PIVOT 2

85L-47332-00-00

Unavailable

43

SHAFT 2

8K2-47475-00-00

Unavailable

44

BOLT (8V0)

90109-10771-00

$5.00

45

COLLAR 1

8V0-47365-00-00

Unavailable

46

WASHER

8V0-47384-00-00

Unavailable

47

STOPPER 2

8Y3-47496-00-00

Unavailable

48

WASHER, PLATE

90201-06747-00

$6.17

49

BOLT, HEXAGON

97017-06025-00

$2.98

50

NUT, NYLON

95707-06300-00

$3.20

51

SPRING, REAR 1

85L-47473-00-00

Unavailable

52

SPRING, REAR 2

85L-47474-00-00

Unavailable

53

HOOK 1

86S-47446-01-00

Unavailable

54

CIRCLIP(13H)

99009-14400-00

$2.48

55

SHAFT 4

83T-47486-00-00

Unavailable

56

COLLAR

8Y3-47319-00-00

Unavailable

57

HOOK 2

85K-47447-01-00

$10.78

58

BOLT, FLANGE

95817-10060-00

$5.20

59

COLLAR

90387-103U7-00

Unavailable

60

WASHER, PLATE (17K)

90201-106F2-00

$7.66

61

PLATE, GUIDE

84J-47467-00-00

Unavailable

62

BRACKET 3

8V0-47417-00-00

Unavailable

63

COLLAR

90387-08632-00

Unavailable

64

WASHER (1T1)

90201-08649-00

$6.29

65

BOLT, WASHER BASED(51X)

90105-08346-00

Unavailable

66

NUT, SELF-LOCKING

90185-08169-00

$7.09

67

COLLAR

90387-084J9-00

Unavailable

68

BOLT,HEXAGON

97027-08165-00

Unavailable

69

NUT, NYLON

95717-08300-00

$2.57

70

COLLAR 3

8K2-47479-01-00

$25.69

71

WASHER, PLATE(89W)

90201-205R6-00

$10.68

72

NUT, NYLON

95707-10300-00

$6.68

73

BUSH, SOLID

90380-12161-00

Unavailable

74

COLLAR(82M)

90387-084R5-00

$6.74

75

BOLT (8K4)

90101-08499-00

$21.95
