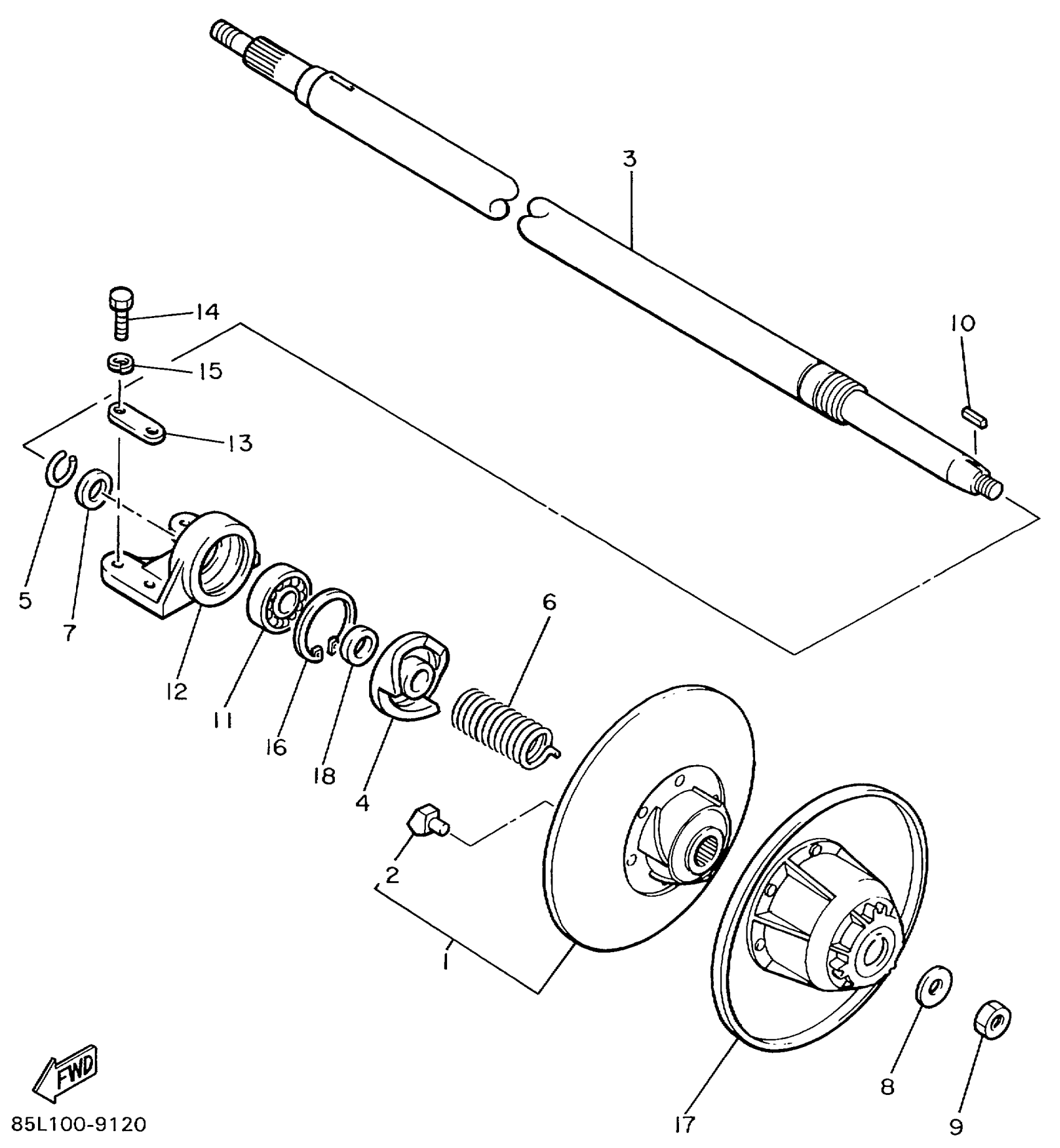

Yamaha CS340EC (OVATION LE) 8BE6 1999 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY SLIDING SHEAVE

85L-17670-01-00

Unavailable

2

SHOE, RAMP

85L-17688-01-00

$3.98

3

SHAFT, SECONDARY

85L-17681-01-00

Unavailable

4

SEAT, SECONDARY SPRING

85L-17684-00-00

Unavailable

5

CIRCLIP (8R4)

93440-25100-00

$2.20

6

SPRING, TORSION

90508-45763-00

Unavailable

7

COLLAR(85L)

90387-260W3-00

Unavailable

8

WASHER, PLATE (35T)

90201-122H1-00

$6.82

9

NUT, SELF LOCKING (23X)

90185-12119-00

$8.63

10

KEY, STRAIGHT (8R4)

90282-05047-00

$8.31

11

BEARING(83R)

93306-20582-00

$48.01

12

HOUSING, BEARING

85L-47631-00-00

Unavailable

13

PLATE 3

85L-17691-00-00

Unavailable

14

BOLT, HEXAGON

97017-08025-00

$7.46

15

WASHER(6TA)

92907-08600-00

$2.52

16

CIRCLIP(26H)

99009-52500-00

$10.68

17

SECONDARY FIXED SHEAVE COMP.

8R4-17660-00-00

$191.03

18

COLLAR

90387-250V1-00

Unavailable
