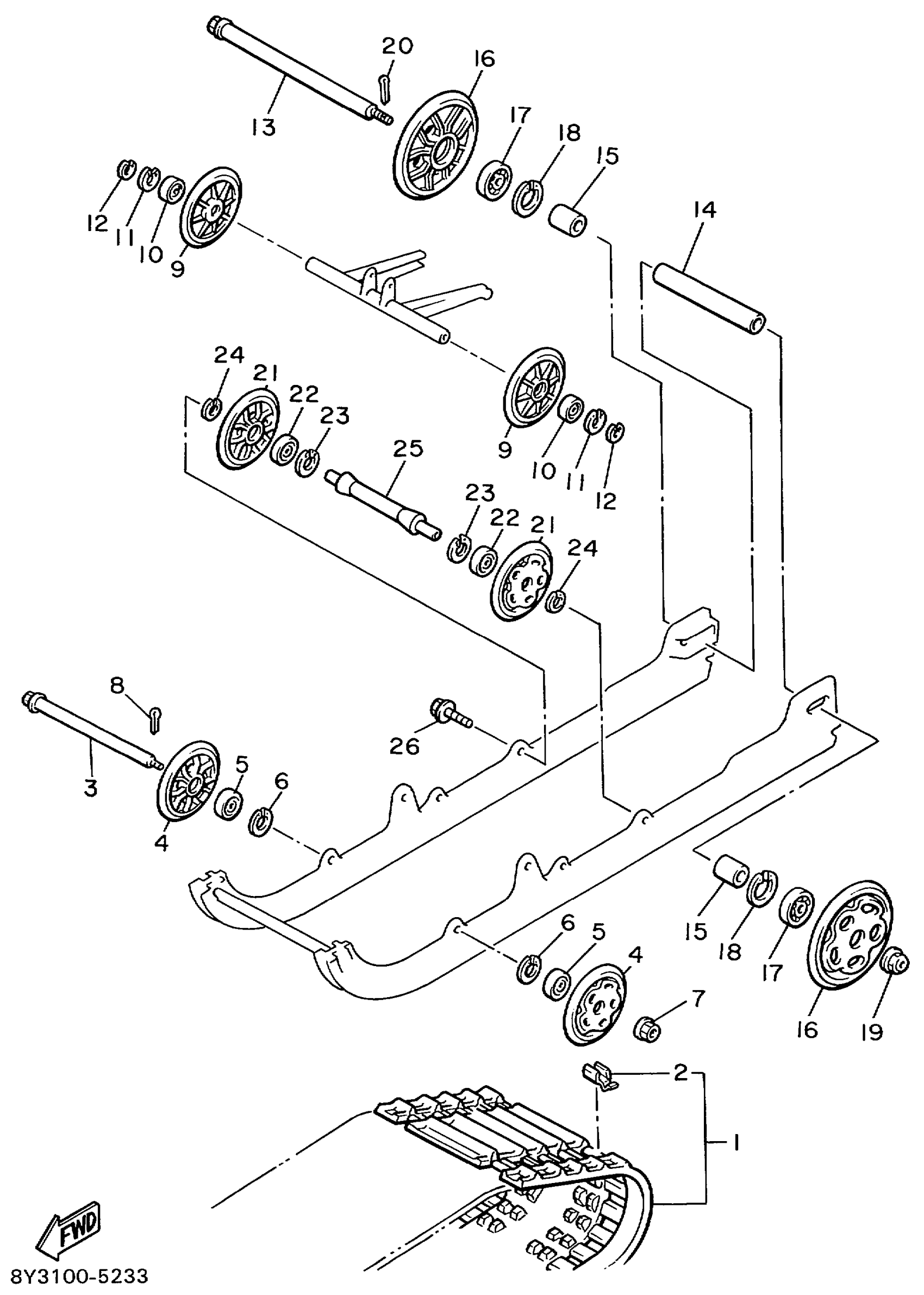

Yamaha CS340EC (OVATION LE) 8BE6 1999 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8J6-47110-02-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SHAFT 5 (80X-47487-00-00)

90891-50061-00

Unavailable

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

5

BEARING(8AB)

93306-00444-00

$35.70

6

CIRCLIP(5U8)

99009-42500-00

$6.77

7

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

8

PIN, COTTER

91401-30025-00

$6.18

9

SUSPENSION WHEEL COMP

885-47320-01-00

$67.65

10

BEARING(8AB)

93306-00444-00

$35.70

11

CIRCLIP(5U8)

99009-42500-00

$6.77

12

CIRCLIP(1AR)

99009-20400-00

$6.17

13

REAR AXLE COMP.

8L8-47520-02-00

$83.57

14

COLLAR

90387-200M8-00

Unavailable

15

COLLAR

90387-20022-00

$21.23

16

GUIDE WHEEL COMP.

8K2-47530-00-00

$117.57

17

BEARING(8AE)

93306-20469-00

$35.49

18

CIRCLIP(48Y)

99009-47500-00

$7.66

19

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

20

PIN, COTTER

91401-30025-00

$6.18

21

SUSPENTION WHEEL COMP

87M-47320-00-00

$77.13

22

BEARING(8AB)

93306-00444-00

$35.70

23

CIRCLIP(5U8)

99009-42500-00

$6.77

24

CIRCLIP(1AR)

99009-20400-00

$6.17

25

SHAFT 6

8V0-47488-00-00

Unavailable

26

BOLT, FLANGE(8AB)

95817-08020-00

$7.00
