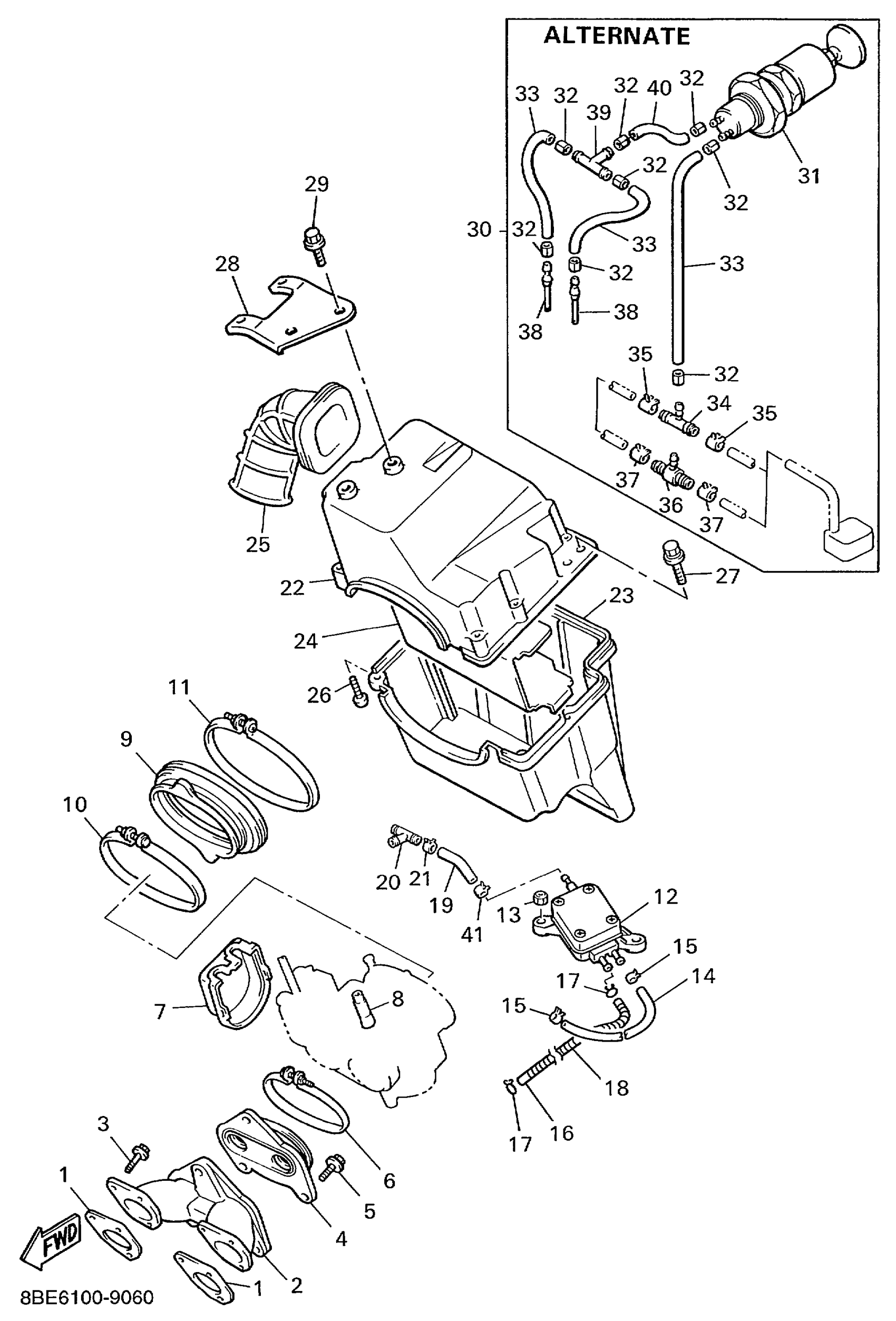

Yamaha CS340EC (OVATION LE) 8BE6 1999 INTAKE Diagram

#

Description
Price

1

GASKET

8Y2-13563-02-00

$7.88

2

JOINT, CARBURETOR

85L-13565-00-00

Unavailable

3

BOLT, FLANGE

95817-06020-00

$2.69

4

MANIFOLD, INTAKE

89X-13555-00-00

Unavailable

5

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

6

HOSE CLAMP ASSY

90450-25026-00

Unavailable

7

CAP, CARBURETOR

85L-14471-00-00

Unavailable

8

BOOT

8J5-26352-00-00

Unavailable

9

JOINT, AIR CLEANER 1

85L-14453-00-00

Unavailable

10

HOSE CLAMP ASSY

90450-25027-00

Unavailable

11

HOSE CLAMP ASSY

90450-25028-00

Unavailable

12

FUEL PUMP ASSY

85L-24410-00-00

Unavailable

13

NUT, NYLON

95707-06300-00

$3.20

14

HOSE (L420)

90445-092K1-00

$10.63

15

CLIP (8A1)

90467-09026-00

$2.72

16

HOSE (L400)

90445-116K9-00

$19.08

17

CLIP (7K7)

90467-11044-00

$5.10

18

SPRING, COMPRESSION (27Y)

90501-08728-00

$11.38

19

HOSE (L210)

90445-110F5-00

$14.08

20

PIPE, JOINT

815-24379-00-00

$19.74

21

CLIP

90467-11028-00

$5.14

22

SILENCER, INTAKE 1

87D-14431-00-00

Unavailable

23

SILENCER, INTAKE 2

85L-14441-00-00

Unavailable

24

PLATE

87D-14477-00-00

Unavailable

25

PIPE, SUCTION 1

87D-14423-00-00

Unavailable

26

SCREW, PAN TAP.2

97707-50525-00

$6.18

27

BOLT, WITH WASHER(8V7)

90119-06108-00

$6.68

28

STAY 1

87D-14493-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

$1.49

30

PRIMER PUMUP KIT

85L-W2431-00-00

Unavailable

31

PRIMER PUMP ASSY

8X8-24360-01-00

$127.32

32

CLIP(42X)

90467-07093-00

$1.72

33

. HOSE

90445-084K1-00

Unavailable

34

PIPE, JOINT

815-24379-00-00

$19.74

35

CLIP (8J7)

90467-11009-00

$7.55

36

WAY 3 (8U0)

90413-05011-00

$2.74

37

CLIP (8A1)

90467-09026-00

$2.72

38

. NOZZLE

8U0-13552-00-00

Unavailable

39

. JOINT

8H0-24379-00-00

Unavailable

40

HOSE (L360)

90445-084K0-00

$3.80

41

CLIP (3G0)

90467-10039-00

$6.57
