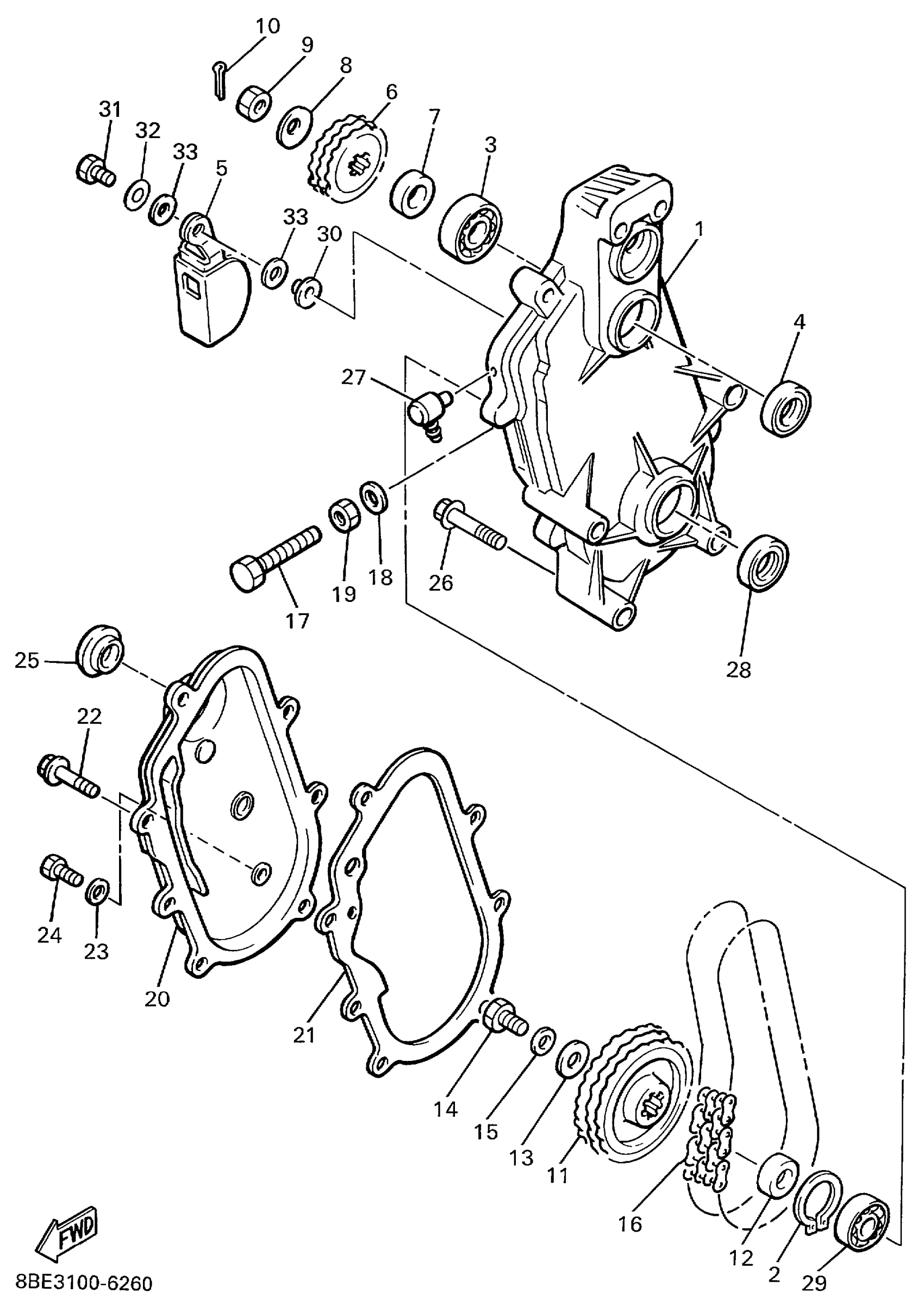

Yamaha CS340EC (OVATION LE) 8BE6 1999 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, CHAIN

8V0-47541-01-00

Unavailable

2

CIRCLIP(26H)

99009-52500-00

$10.68

3

BRG,R-B 6304 52MM 144G NT

93306-30407-00

$58.51

4

OIL SEAL

93102-25418-00

Unavailable

5

TENSIONER

85L-47611-00-00

Unavailable

5

TENSIONER

85L-47611-90-00

Unavailable

6

SPROCKET, CHAIN DRIVE (10T)

802-17682-10-00

Unavailable

6

SPROCKET, CHAIN DRIVE (11T)

802-17682-20-00

Unavailable

6

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

Unavailable

6

SPRKT,CHAIN DR

806-17682-30-00

Unavailable

6

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

Unavailable

7

COLLAR

90387-190V2-00

Unavailable

8

WASHER, PLATE (35T)

90201-122H1-00

$6.82

9

NUT, SELF LOCKING (23X)

90185-12119-00

$8.63

10

PIN, COTTER(6L5)

91490-25030-00

$2.85

11

SPROCKET, CHAIN DRIVEN (22T)

85T-47548-20-00

Unavailable

11

SPROCKET, CHAIN DRIVEN (23T)

85T-47548-30-00

Unavailable

11

SPROCKET, CHAIN DRIVEN

85T-47548-40-00

$48.68

12

COLLAR

90387-256V3-00

Unavailable

13

WASHER, PLATE(8BV)

90201-100S7-00

$9.75

14

BOLT(6TD)

97017-10025-00

$6.82

15

WASHER(6TA)

92907-10600-00

$6.18

16

CHAIN

94880-01048-00

Unavailable

17

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

18

WASHER SEAL 256111730200

90210-10004-00

$4.11

19

NUT (3WP1)

95317-10700-00

$6.17

20

CAP, HOUSING

8V0-47543-00-00

$124.54

21

GASKET

86F-47592-01-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

$1.46

23

WASHER, SEAL (7G5)

90210-06006-00

$5.72

24

BOLT(3JP)

97017-06010-00

$2.62

25

PLUG(83R)

90338-30219-00

$11.09

26

BOLT, WASHER BASED

90105-084A1-00

$9.38

27

BREATHER

583-15371-00-00

$5.35

28

OIL SEAL (25X44X6-810)

93102-25081-00

$4.11

29

BEARING (3Y1)

93306-20541-00

$33.15

30

COLLAR (8K4)

90387-08301-00

$2.62

31

BOLT, HEXAGON

97017-08025-00

$7.46

32

WASHER(6TA)

92907-08600-00

$2.52

33

WASHER, PLATE (33N)

90201-094G1-00

$6.98
