1991 Kawasaki Concours Turn Signal Diagram

← All diagrams

Find the part on the Turn Signal diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

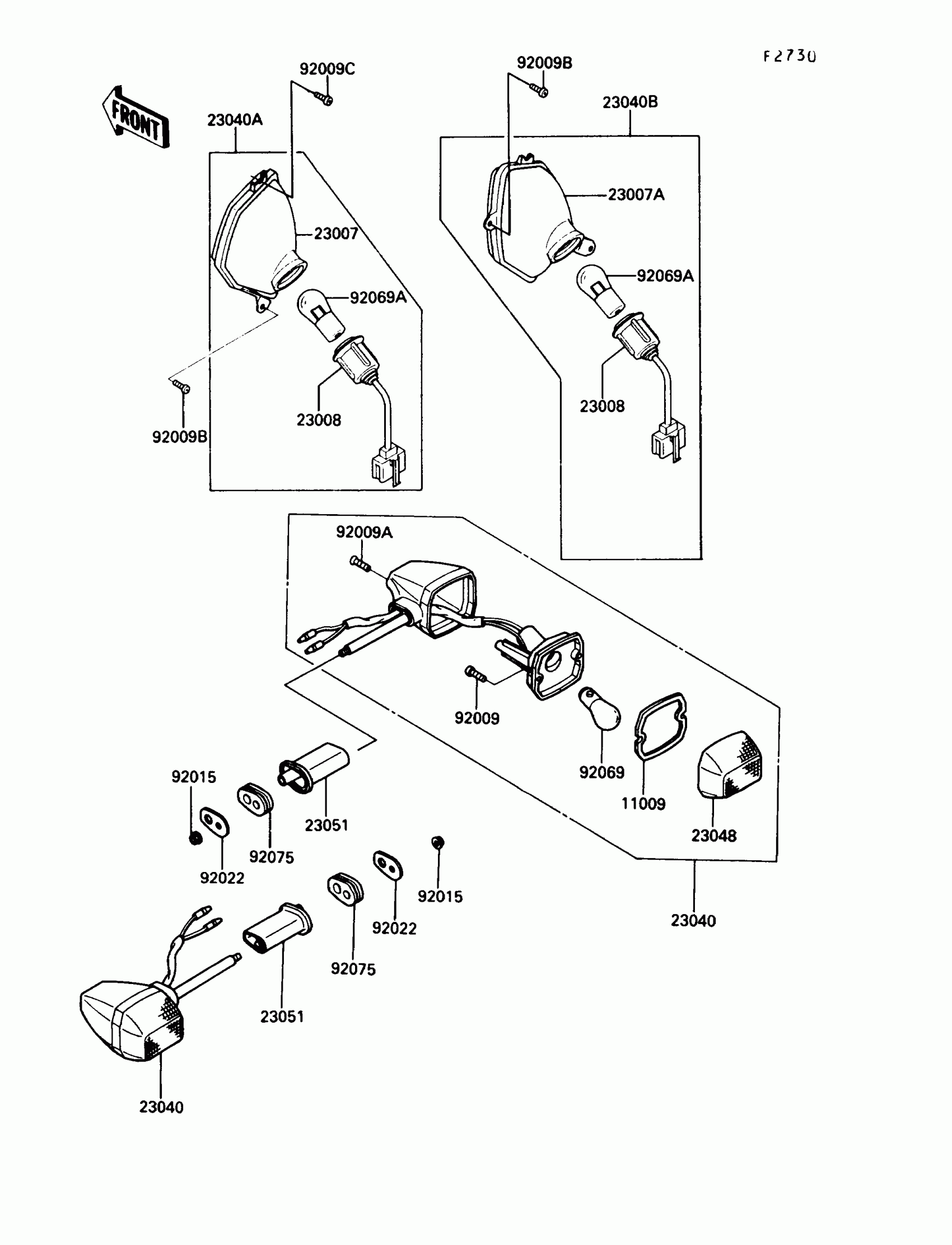

1991 Kawasaki Concours Turn Signal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1402

1
Out of stock

23007

LENS-COMP,SIGNAL LAMP,FR,LH

23007-1142

1
Out of stock

23007A

LENS-COMP,SIGNAL LAMP,FR,RH

23007-1143

1
Out of stock

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-1299

1
Out of stock

23040

LAMP-SIGNAL,RR

23040-1108

1
Out of stock

23040A

LAMP-SIGNAL,FR,LH

23040-1136

1
Out of stock

23040B

LAMP-SIGNAL,FR,RH

23040-1137

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-1054

1
Out of stock

23051

BRACKET-SIGNAL LAMP

23051-1165

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92009B

SCREW,4X18

92009-1355

1
Out of stock

92009C

SCREW,TAPPING,4X12

92009-1444

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92022

WASHER,SIGNAL LAMP

92022-1672

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92075

DAMPER,SIGNAL LAMP

92075-1698

1
Out of stock
