1988 Kawasaki Concours Starter Motor Diagram

← All diagrams

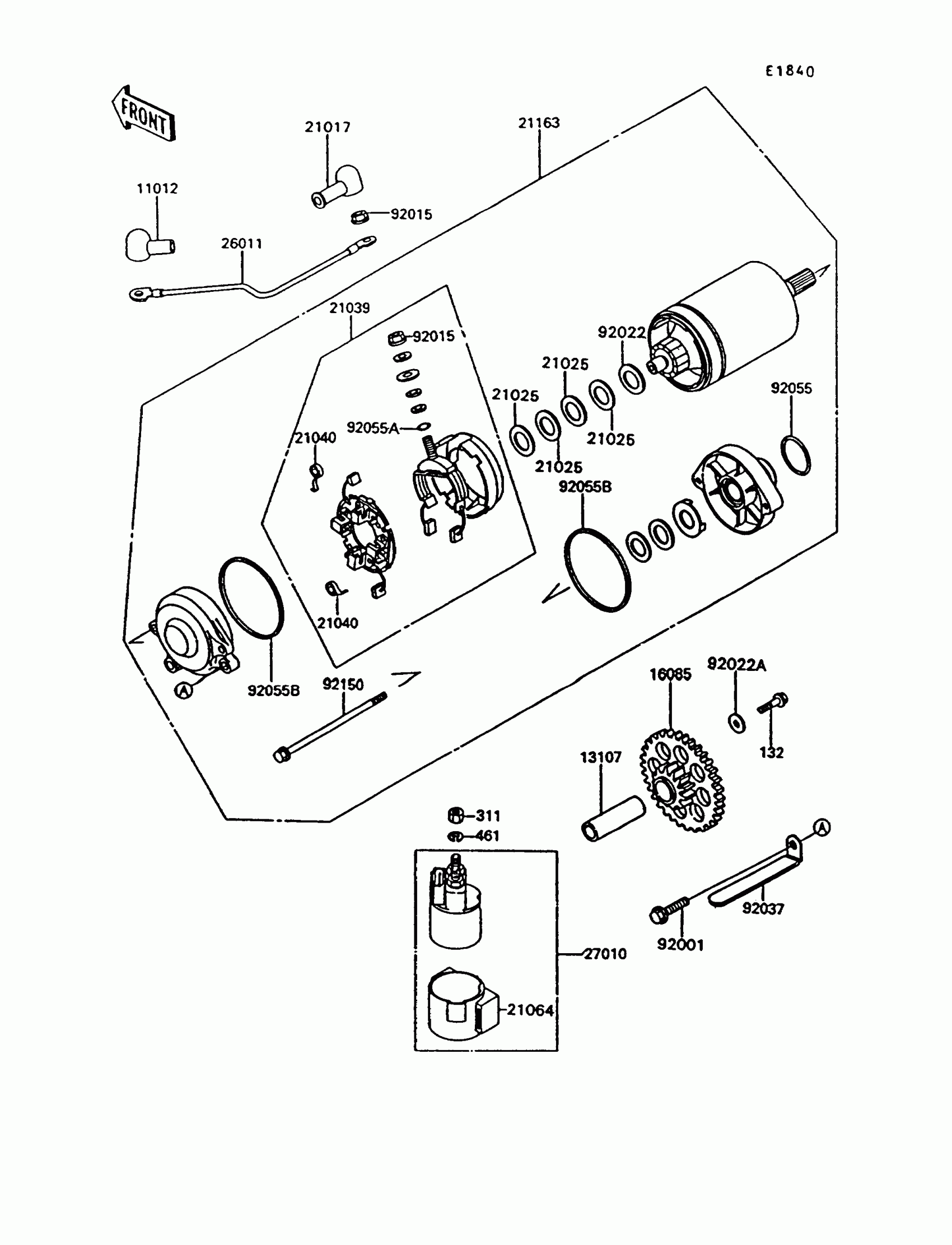

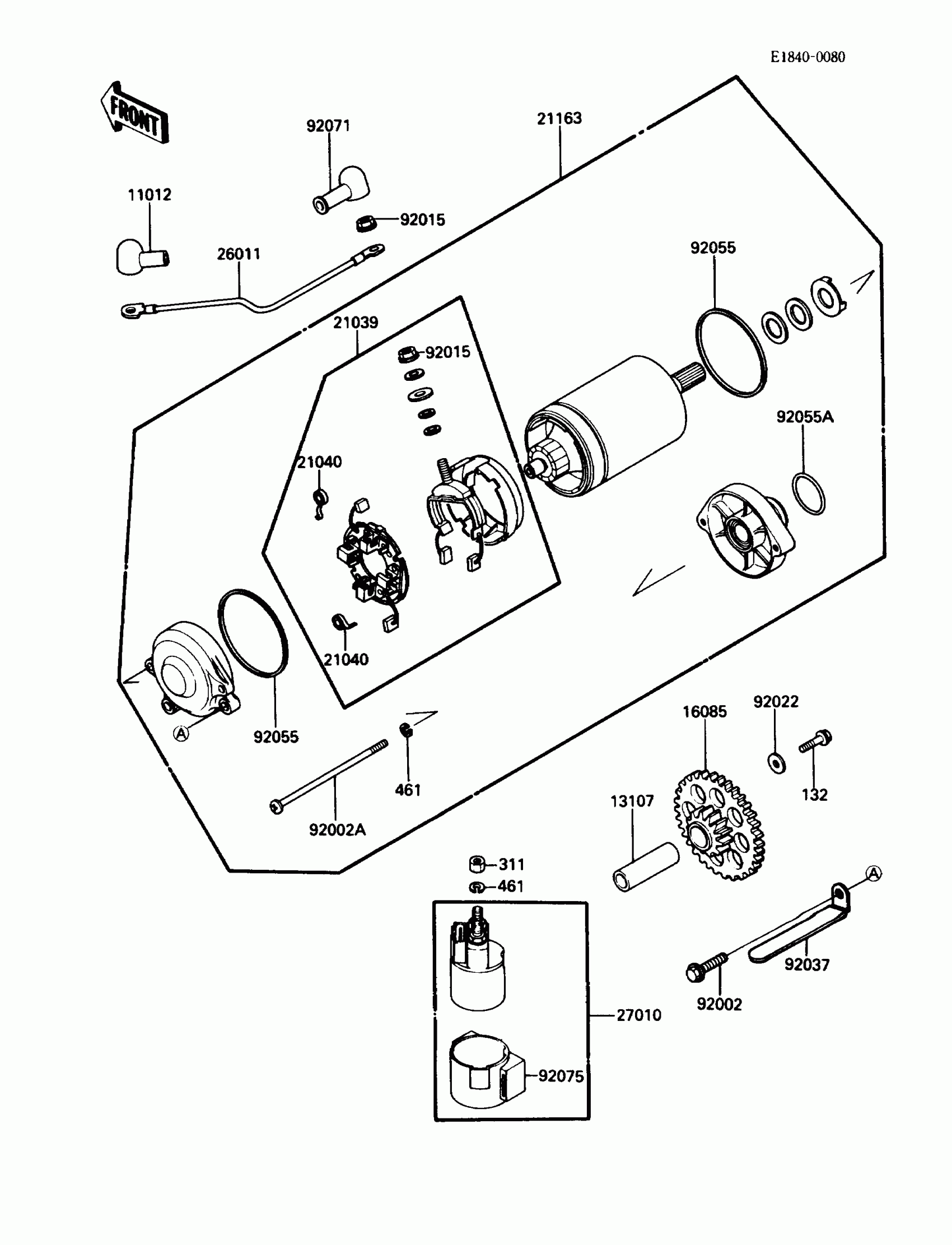

Find the part on the Starter Motor diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13107

SHAFT,IDLE GEAR

13107-1106

1

$15.76

In stock

16085

GEAR,IDLE

16085-1104

1

$138.23

In stock

21039

BRUSH,CARBON

21039-1053

1

$96.05

In stock

21040

SPRING-BRUSH

21040-1003

1

$9.12

In stock

21163

STARTER-ELECTRIC

21163-1078

1
Out of stock

26011

WIRE-LEAD,MOTOR

26011-1316

1

$65.87

In stock

27010

SWITCH,MAGNETIC

27010-1235

1

$158.23

In stock

92002

BOLT,6X20

92001-1947

1

$3.46

In stock

92002A

BOLT

92002-1560

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92037

CLAMP

92037-1679

1

$4.37

In stock

92055

RING-O,64MM

92055-1086

1

$9.68

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92071

1

$7.48

In stock

92075

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
