1991 Kawasaki Concours Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

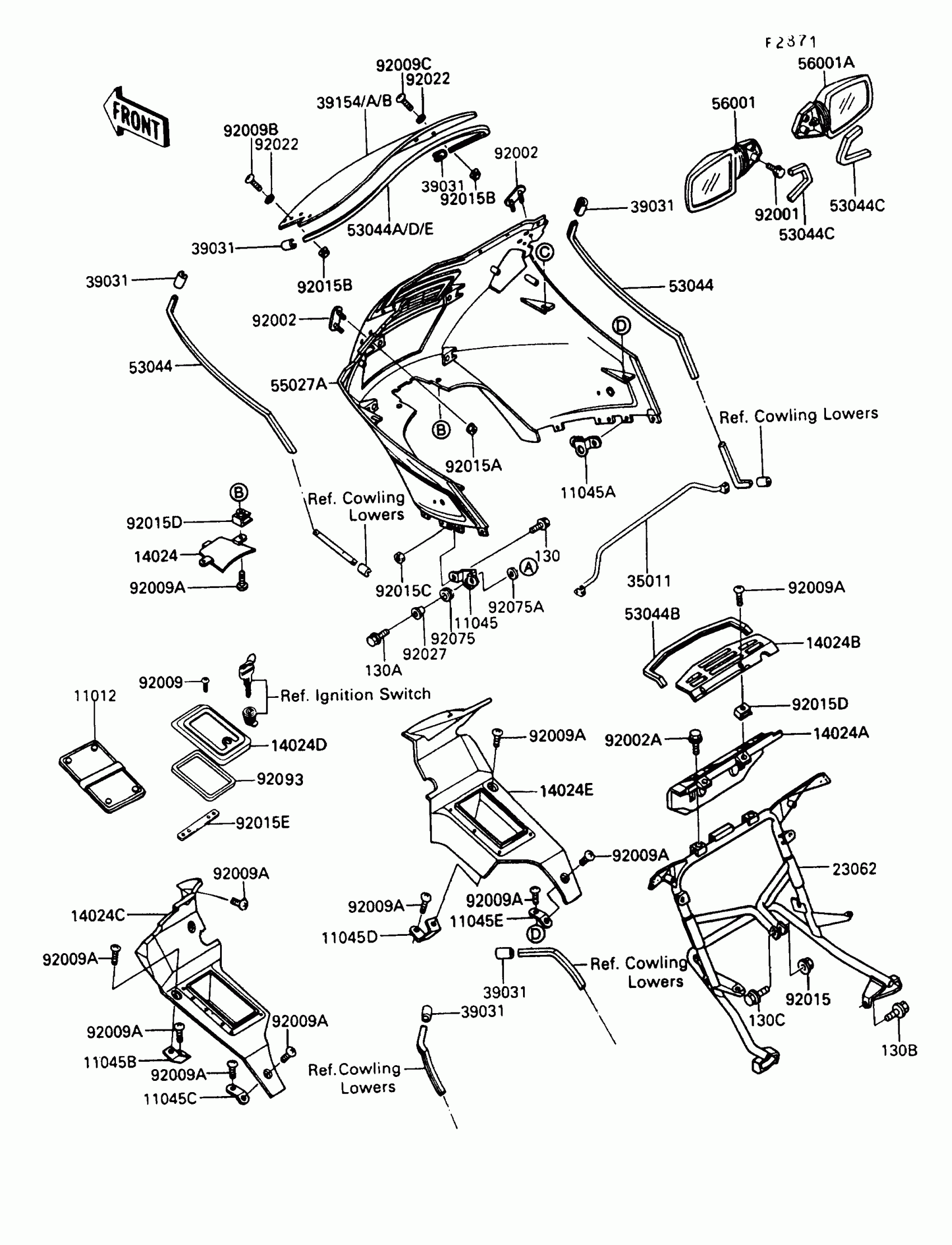

1991 Kawasaki Concours Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,INNER COWLING

11012-1546

1
Out of stock

11045

1

$10.24

In stock

11045A

1

$10.24

In stock

11045B

BRACKET,INNER COWLING,FR,LH

11044-1909

1
Out of stock

11045C

BRACKET,INNER COWLING,RR

11044-1910

1
Out of stock

11045D

BRACKET,INNER COWLING,FR,RH

11044-1922

1
Out of stock

11045E

BRACKET,INNER COWLING,RR

11045-1612

1
Out of stock

14024

COVER,UPPER COWLING,LWR,RED

14024-1252-A5

1
Out of stock

14024A

COVER,HORN,RR

14024-1255

1
Out of stock

14024B

COVER,INNER COWLING,CNT

14024-1256

1
Out of stock

14024C

COVER,INNER COWLING,UPP,LH

14024-1422

1
Out of stock

14024D

COVER,INNER COWLING COVER,RH

14024-1472

1
Out of stock

14024E

COVER,INNER COWLING,UPP,RH

14024-1473

1
Out of stock

23062

BRACKET-COMP,UPPER COWLING

23062-1068

1
Out of stock

35011

STAY,SIDE COWLING

35011-1340

1

$96.32

In stock

39031

CAP-END,TRIM

39031-1055

1
Out of stock

39154

1

$621.21

In stock

39154A

1

$614.73

In stock

39154B

WINDSHIELD,SUPER LONG TYPE

39154-1096

1
Out of stock

53044

TRIM,COWLING

53044-1157

1

$30.28

In stock

53044A

1

$25.66

In stock

53044B

TRIM,INNER COWLING

53044-1172

1

$13.47

In stock

53044C

TRIM,MIRROR

53044-1173

1

$8.80

In stock

53044D

TRIM,WINDSHIELD,LONG TYPE

53044-1192

1
Out of stock

53044E

1

$17.58

In stock

55027A

1

$1,158.17

In stock

56001

MIRROR-ASSY,LH

56001-1333

1

$167.07

In stock

56001A

MIRROR-ASSY,RH

56001-1334

1

$167.07

In stock

92001

BOLT,6X14,BLACK

92001-1847

1

$3.58

In stock

92002

BOLT,"U"

92002-1800

1
Out of stock

92002A

BOLT,UPSET-WP,6X12

92002-1884

1
Out of stock

92009

SCREW,4X16

92009-1108

1
Out of stock

92009A

SCREW,6X14,BLACK

92009-1308

1
Out of stock

92009B

SCREW,5X14,BLACK

92009-1383

1
Out of stock

92009C

SCREW,5X20,BLACK

92009-1453

1
Out of stock

92015

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015A

NUT,FLANGED,6MM,BLACK

92015-1237

1
Out of stock

92015B

NUT,5MM,COWLING

92015-1343

1

$3.65

In stock

92015C

NUT,STAY,6MM

92015-1394

1

$3.80

In stock

92015D

NUT,6MM

92015-1602

1

$5.84

In stock

92015E

NUT,PLATE,4MM

92015-1661

1

$7.49

In stock

92022

1

$3.12

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92075

1

$3.80

In stock

92075A

DAMPER,FEMALE

92075-175

1

$3.49

In stock

92093

SEAL,FAIRING POCKET

92093-1239

1

$7.44

In stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED,6X25

130J0625

1
Out of stock

130B

BOLT-FLANGED,8X12

130J0812

1
Out of stock

130C

BOLT-FLANGED,8X30

130J0830

1
Out of stock
