1991 Kawasaki Concours Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

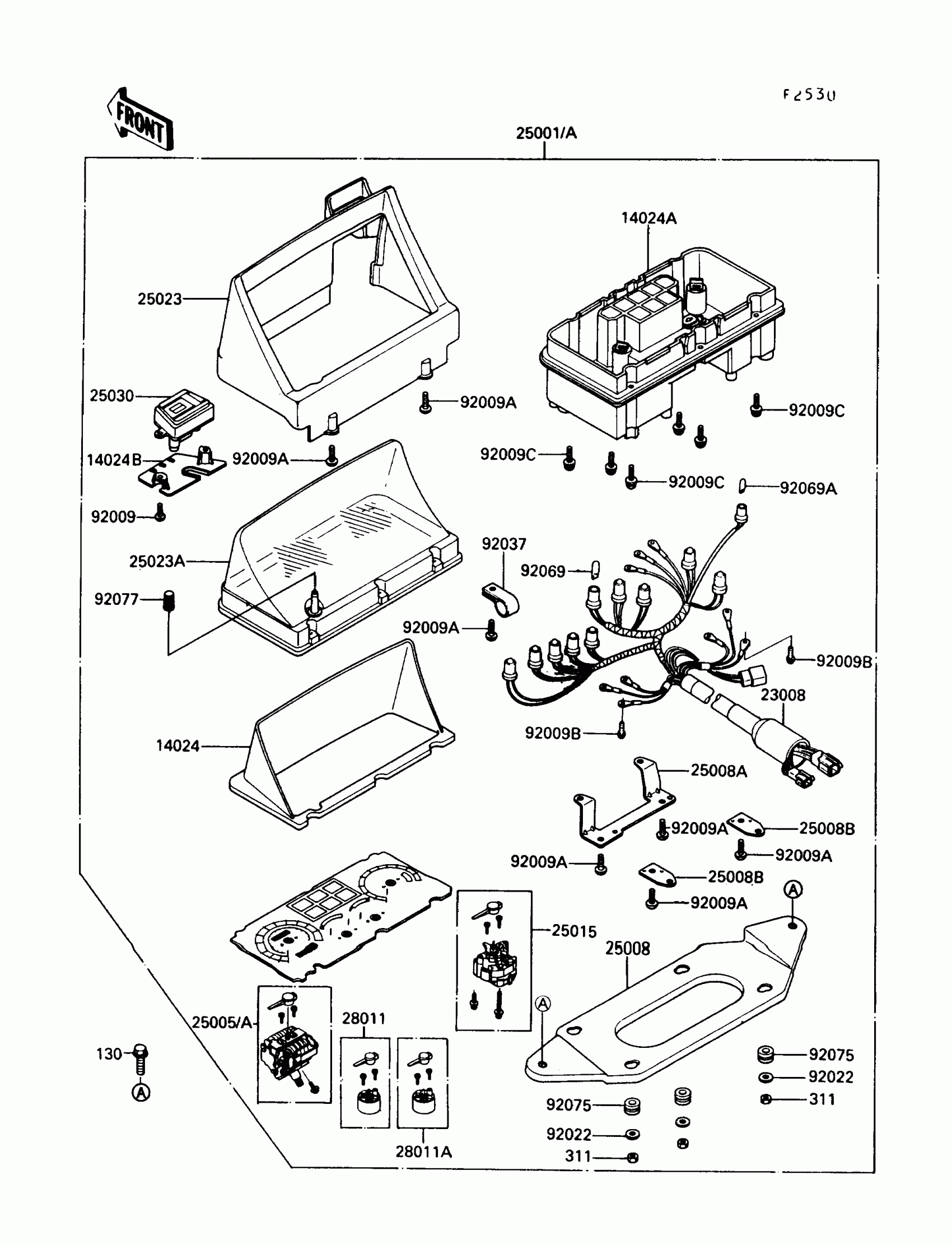

1991 Kawasaki Concours Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER,UPP

14024-1179

1

$144.95

In stock

14024A

COVER,METER HOUSING

14024-1338

1
Out of stock

14024B

COVER,DEGITAL CLOCK

14024-1339

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1318

1
Out of stock

25001

METER-ASSY,MPH

25001-1641

1
Out of stock

25001A

METER-ASSY,KPH

25001-1663

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1338

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1339

1
Out of stock

25008

BRACKET-METER

25008-1131

1
Out of stock

25008A

BRACKET-METER,UPP

25008-1132

1
Out of stock

25008B

BRACKET-METER,LWR

25008-1133

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1262

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1147

1
Out of stock

25023A

COVER-METER CASE,UPP

25023-1149

1
Out of stock

25030

CLOCK,DEGITAL

25030-1001

1
Out of stock

28011

METER,FUEL

28011-1088

1
Out of stock

28011A

METER,TEMP

28011-1089

1
Out of stock

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

1
Out of stock

92009A

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009B

SCREW,3X22

92009-1293

1
Out of stock

92009C

SCREW,3X10

92009-1382

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92037

CLAMP,METER

92037-1818

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92075

DAMPER

92075-1805

1
Out of stock

92077

KNOB,RESET TRIP

92077-1017

1
Out of stock

130

BOLT-FLANGED,6X12

130C0612

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock
