1988 Kawasaki Concours Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

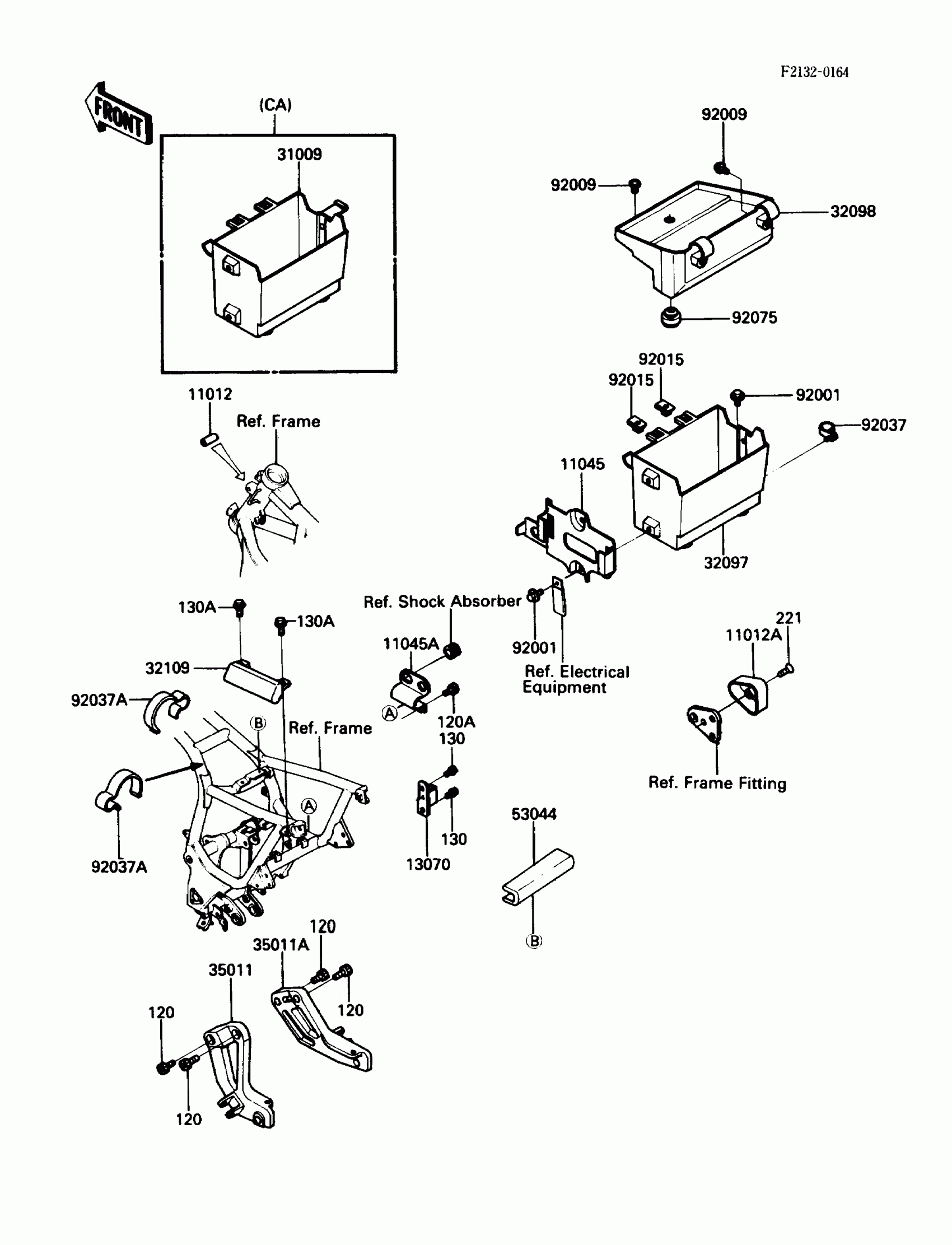

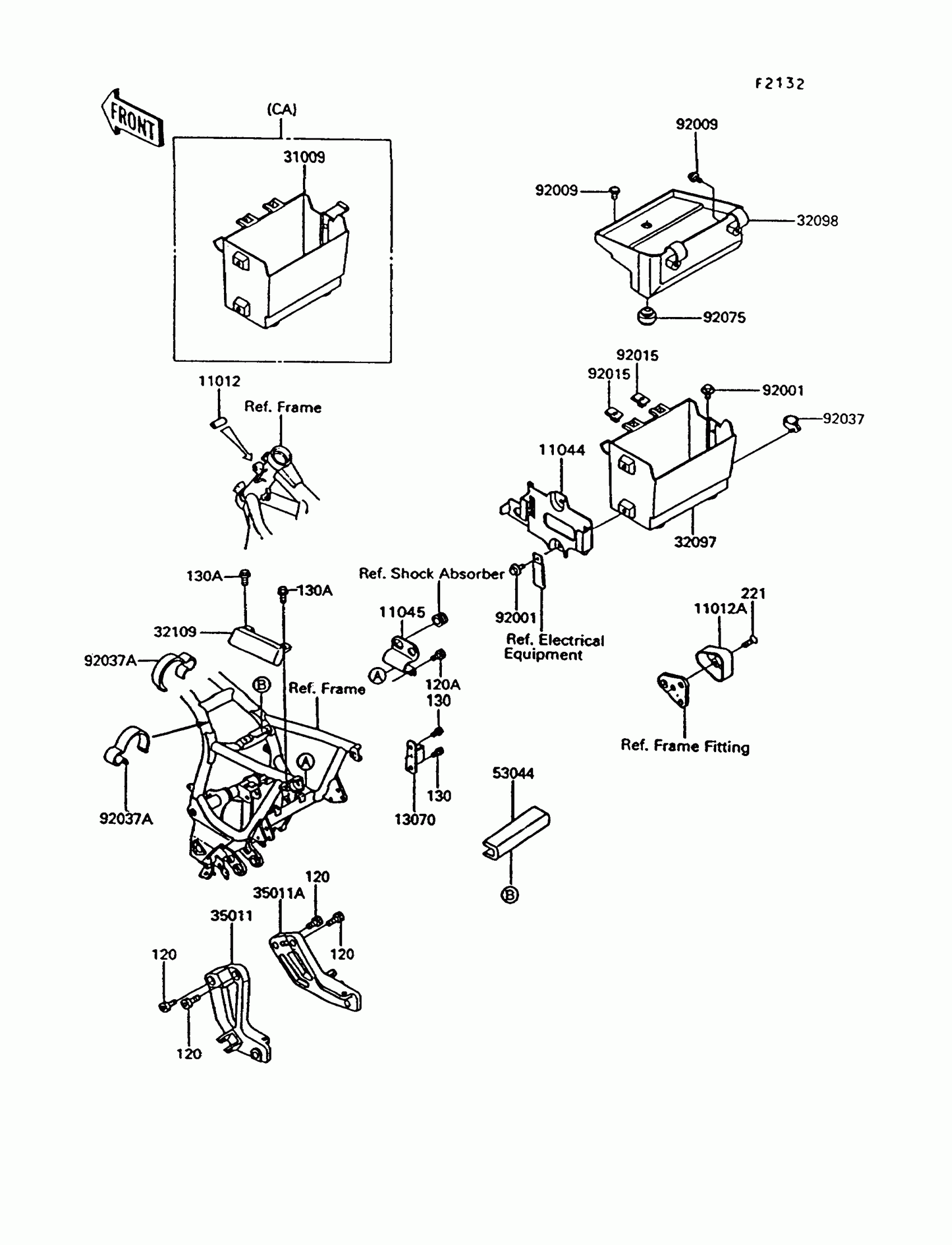

1988 Kawasaki Concours Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1438

1
Out of stock

11012A

CAP,ENGINE BRACKET

11012-1531

1
Out of stock

11045

BRACKET,MAGNETIC SWITCH

11044-1642

1
Out of stock

11045A

BRACKET,REARSHOCK ADJUST KNOB

11045-1118

1
Out of stock

13070

GUIDE,HOSE

13070-1160

1
Out of stock

31009

CASE-COMP-BATTERY

31009-1052

1
Out of stock

32097

CASE-BATTERY

32097-1124

1
Out of stock

32098

CASE-TOOL

32098-1068

1
Out of stock

32109

GRIP-FRAME,LH

32109-1136

1
Out of stock

35011

STAY,MUFFLER&REAR STEP,LH

35011-1293

1
Out of stock

35011A

STAY,MUFFLER&REAR STEP,RH

35011-1294

1
Out of stock

53044

TRIM,L=40

53044-1174

1

$3.85

In stock

92001

BOLT

92001-1825

1
Out of stock

92009

SCREW,6X14,BLACK

92009-1308

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92037

CLAMP,SPEED,L=43

92037-1290

1
Out of stock

92037A

CLAMP,HOSE

92037-1552

1
Out of stock

92075

DAMPER

92075-1045

1
Out of stock

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

120A

BOLT-SOCKET,6X14

120S0614

1
Out of stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED,8X12,BLACK

130C0812

1
Out of stock

221

SCREW-CSK-CROS,6X20

221C0620

1
Out of stock
