1991 Kawasaki Concours Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

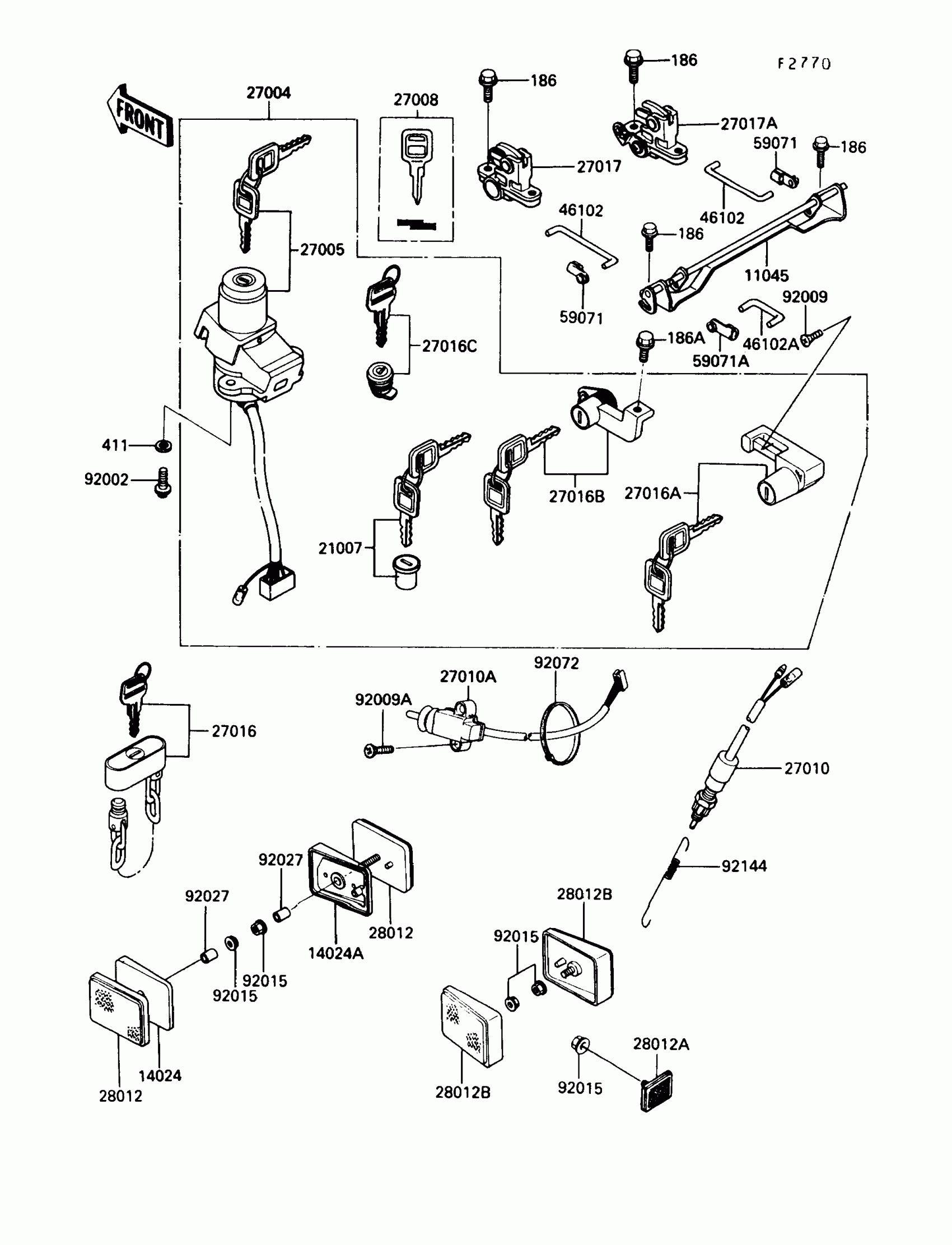

1991 Kawasaki Concours Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,SEAT LOCK

11045-1544

1
Out of stock

14024

COVER,REFLECTOR,FR

14025-1886

1
Out of stock

14024A

COVER,REFLECTOR,FR

14025-1887

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5017

1
Out of stock

27004

SWITCH-ASSY

27004-5312

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5064

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-1019

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1220

1
Out of stock

27016

LOCK-ASSY,WHEEL

27016-1051

1
Out of stock

27016A

LOCK-ASSY,HELMET

27016-5111

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5112

1
Out of stock

27016C

LOCK-ASSY,FAIRING POCKET

27016-5125

1
Out of stock

27017

LOCK,SEAT,LH

27017-1112

1
Out of stock

27017A

LOCK,SEAT,RH

27017-1113

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-1052

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-1056

1
Out of stock

46102

ROD,SEAT LOCK,FR

46102-1187

1
Out of stock

46102A

ROD,SEAT LOCK,RR

46102-1188

1
Out of stock

59071

JOINT

59071-1103

1
Out of stock

59071A

JOINT

59071-1125

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92009

SCREW,5X12

92009-1401

1
Out of stock

92009A

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92144

SPRING,BRAKE LAMP SWITCH

92081-1990

1
Out of stock

186

BOLT-UPSET-WP,6X14

186C0614

1
Out of stock

186A

BOLT-UPSET-WP,6X16

186C0616

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock
