Description

Price

26001

HARNESS,FR

26001-1774

Unavailable

26001A

HARNESS,MAIN

26001-1838

$240.20

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006A

FUSE,BLADE,10A,RED

26006-1007

$3.78

26006B

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006C

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-1323

$38.93

26011A

WIRE-LEAD,BATTERY(+)

26011-1358

$38.93

26012

BATTERY,12V 18AH,YB18L-A-TP

26012-1183

Unavailable

26021

JUNCTION BOX

26021-1076

$265.71

26030

HARNESS,MAIN

26030-1038

$240.20

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

$96.83

27003

HORN,DOUBLE

27003-1245

$216.96

27010

SWITCH,RESERV LIGHTING

27010-1066

$213.85

49016

COVER-SEAL

49016-1118

$11.37

59416

CASE-ELECTRIC

59416-1060

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$4.93

92037B

CLAMP,L=45

92037-1539

$4.42

92037C

CLAMP,HARNESS

92037-1564

$10.17

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=365

92072-1197

$7.71

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

130

BOLT-FLANGED,6X12

130C0612

Unavailable

220

SCREW-PAN-CROS,5X10

220C0510

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

Unavailable

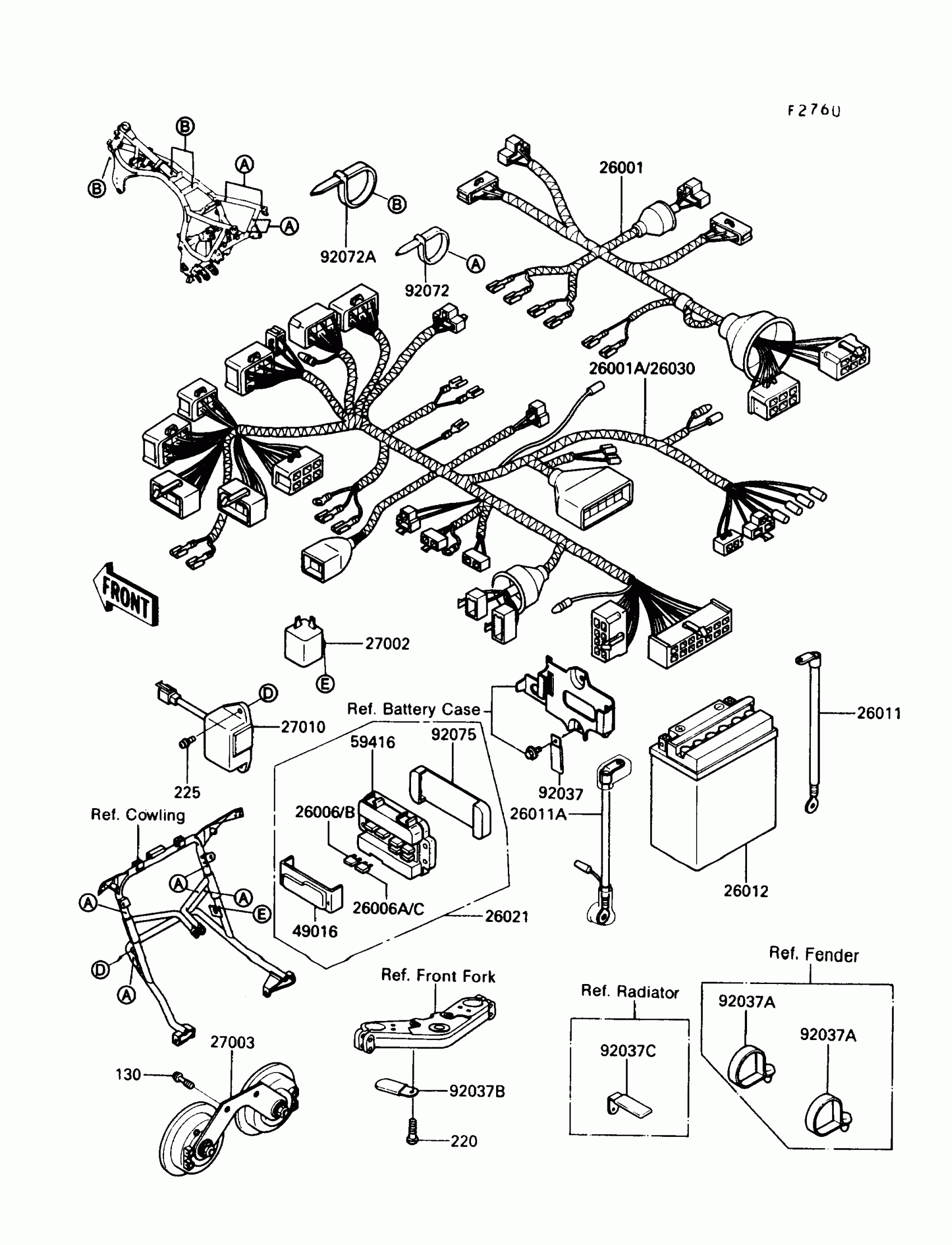

Kawasaki Concours Electrical Equipment Diagram

HARNESS,FR

HARNESS,MAIN

FUSE,BLADE,30A,GREEN

FUSE,BLADE,10A,RED

FUSE,BLADE,30A,GREEN

FUSE,10A-R

WIRE-LEAD,BATTERY(-)

WIRE-LEAD,BATTERY(+)

BATTERY,12V 18AH,YB18L-A-TP

JUNCTION BOX

HARNESS,MAIN

RELAY-ASSY,TURN SIGNAL

HORN,DOUBLE

SWITCH,RESERV LIGHTING

COVER-SEAL

CASE-ELECTRIC

CLAMP,WIRING HARNESS,L=60

CLAMP,SPEED,L=58

CLAMP,L=45

CLAMP,HARNESS

BAND,L=202

BAND,L=365

DAMPER,JUNCTION BOX

BOLT-FLANGED,6X12

SCREW-PAN-CROS,5X10

SCREW-PAN-WSP-CROS,6X20
