1988 Kawasaki Concours Ignition Switch/locks/reflectors Diagram

← All diagrams

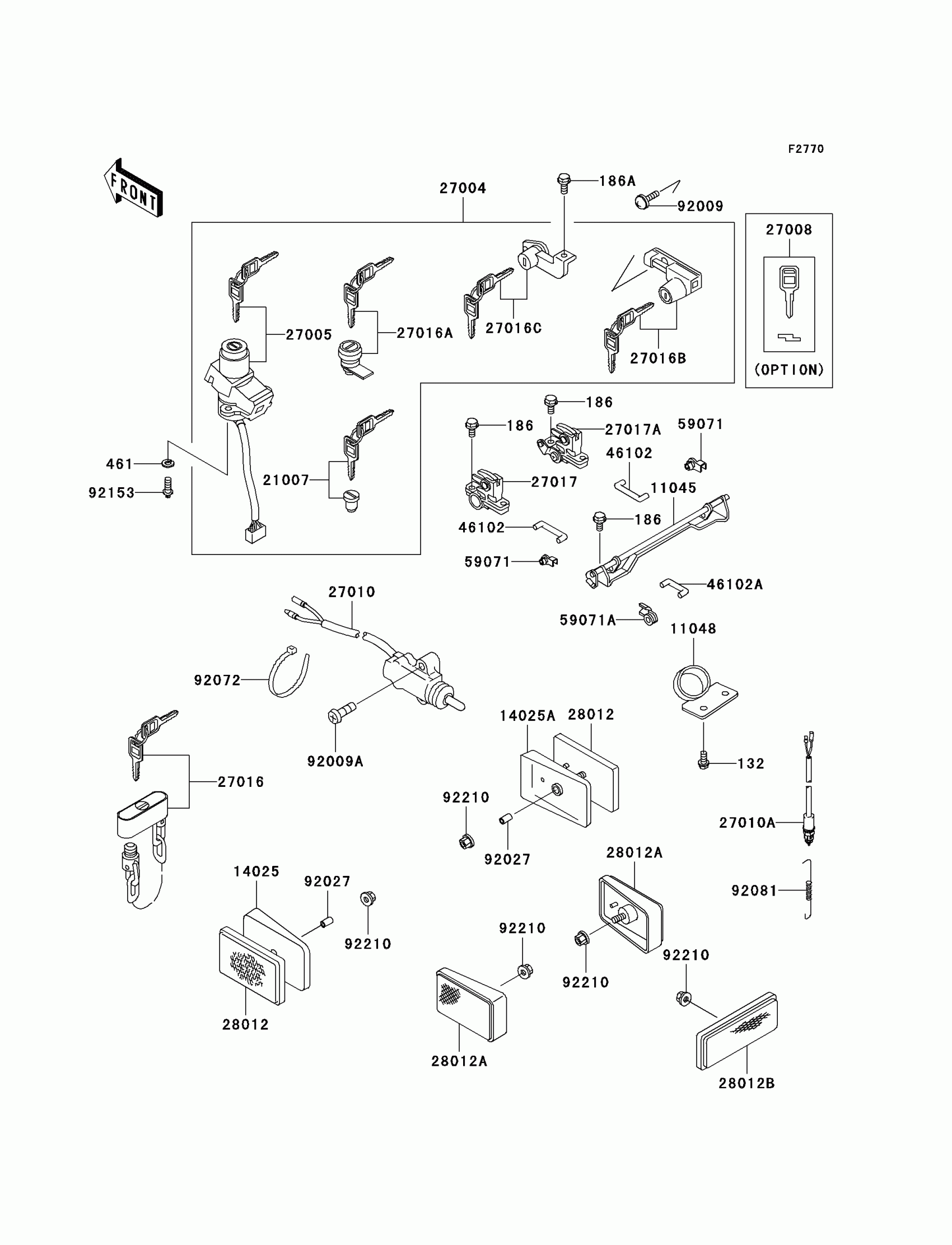

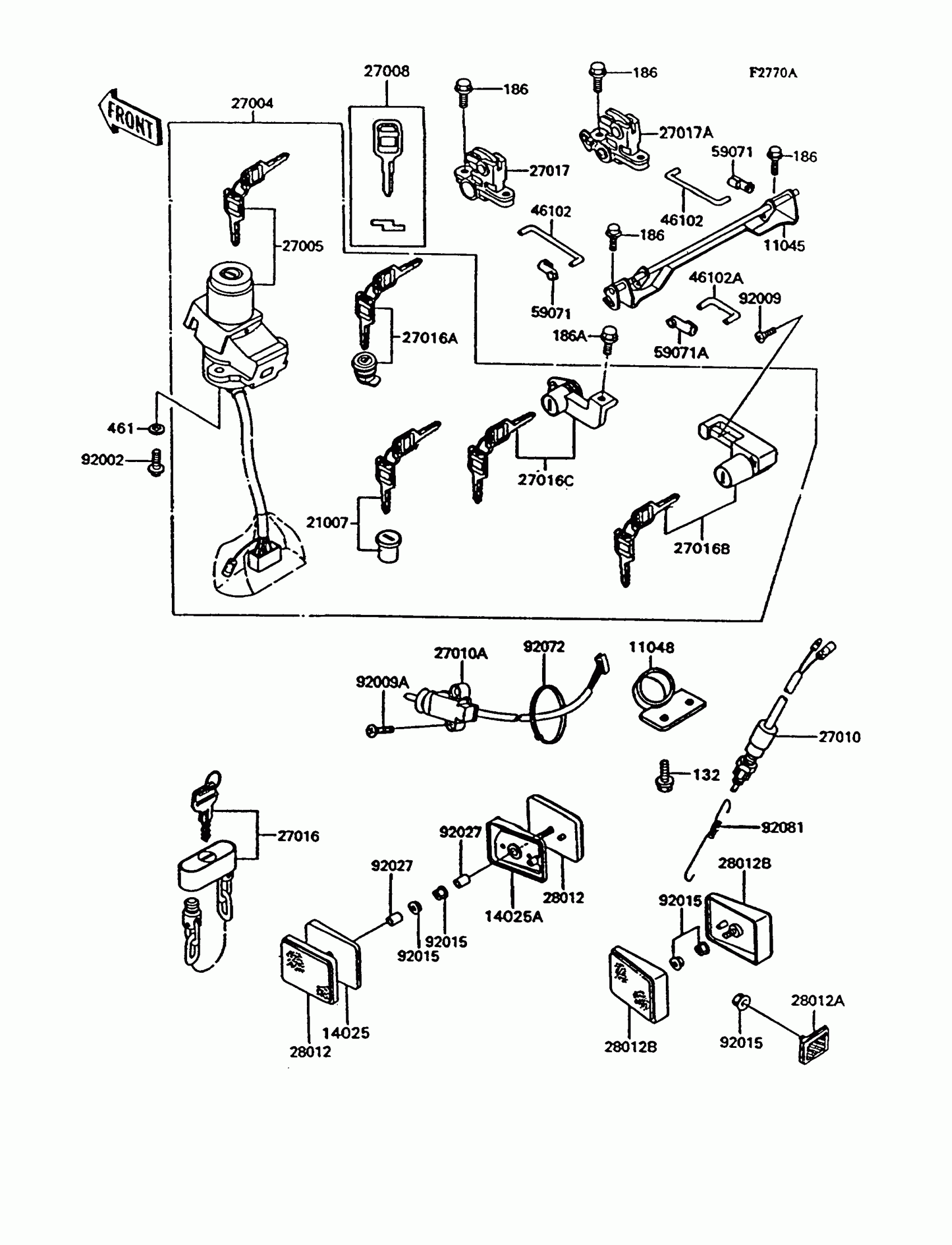

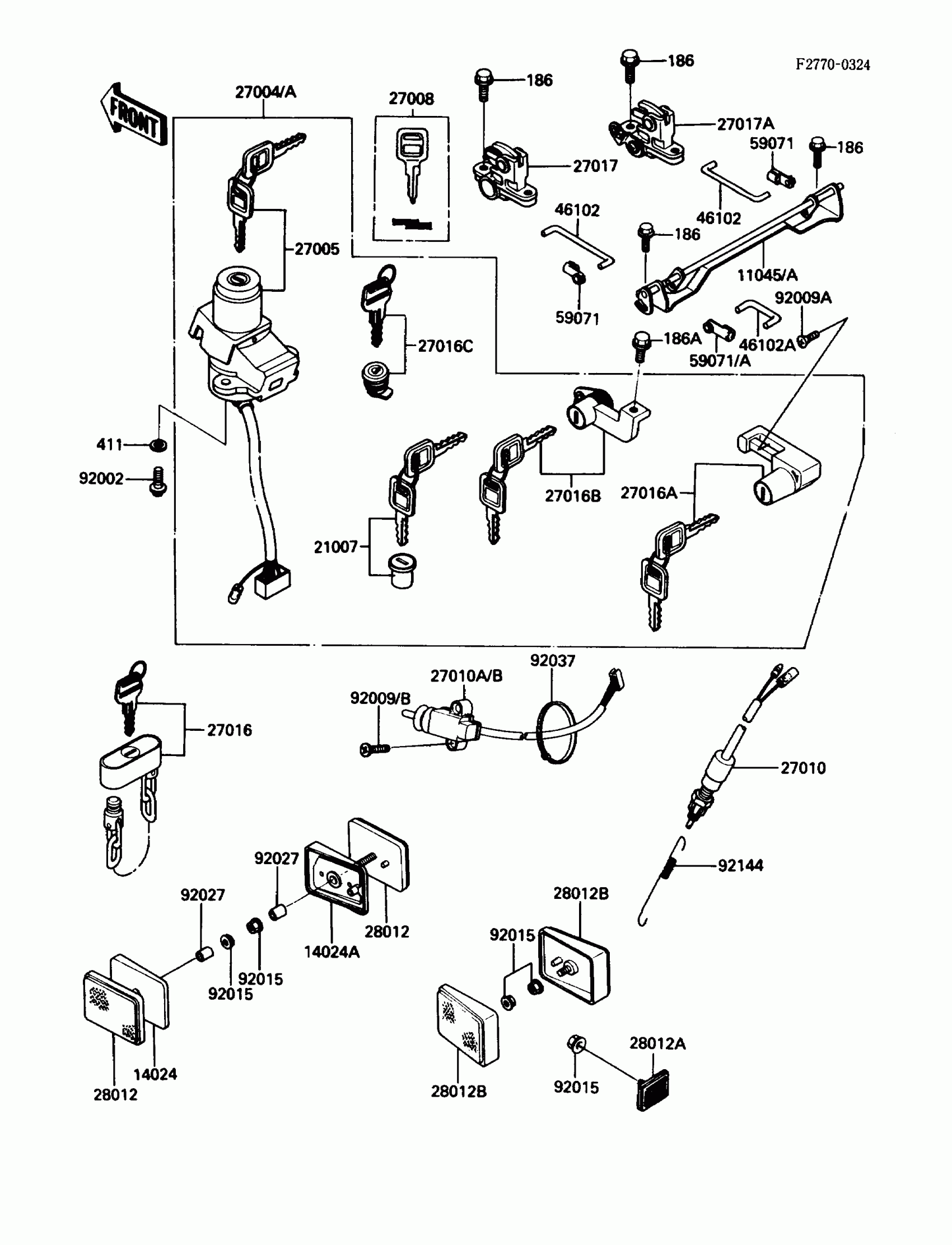

Find the part on the Ignition Switch/locks/reflectors diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045A

BRACKET,SEAT LOCK

11045-1544

1

$36.93

In stock

14024

COVER,REFLECTOR,FR

14025-1886

1
Out of stock

14024A

COVER,REFLECTOR,FR

14025-1887

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5017

1

$94.15

In stock

27004A

SWITCH-ASSY

27004-5312

1

$430.10

In stock

27005

1

$165.52

In stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,REAR BRAKE

27010-1019

1

$37.98

In stock

27010B

SWITCH,SIDE STAND

27010-1220

1

$73.52

In stock

27016

LOCK-ASSY,WHEEL

27016-1051

1

$134.03

In stock

27016A

LOCK-ASSY,HELMET

27016-5111

1

$83.33

In stock

27016B

LOCK-ASSY,SEAT

27016-5112

1
Out of stock

27016C

1

$83.35

In stock

27017

LOCK,SEAT,LH

27017-1112

1

$87.16

In stock

27017A

LOCK,SEAT,RH

27017-1113

1

$87.16

In stock

28012

REFLECTOR-REFLEX,FR

28012-1052

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1

$20.82

In stock

28012B

REFLECTOR-REFLEX,RR

28012-1056

1

$24.63

In stock

46102

ROD,SEAT LOCK,FR

46102-1187

1

$8.95

In stock

46102A

ROD,SEAT LOCK,RR

46102-1188

1

$3.92

In stock

59071

JOINT

59071-1103

1

$6.90

In stock

59071A

JOINT

59071-1125

1

$8.88

In stock

92002

BOLT,TORX,6X16

92002-1333

1

$2.15

In stock

92009A

SCREW,5X12

92009-1401

1
Out of stock

92009B

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92027

COLLAR,5.6X8X14.5

92027-1789

1

$4.42

In stock

92037

CLAMP,L=200

92037-1576

1

$8.22

In stock

92144

1

$5.97

In stock

186

BOLT-UPSET-WP,6X14

186C0614

1
Out of stock

186A

BOLT-UPSET-WP,6X16

186C0616

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock
