1988 Kawasaki Concours Chassis Electrical Equipment Diagram

← All diagrams

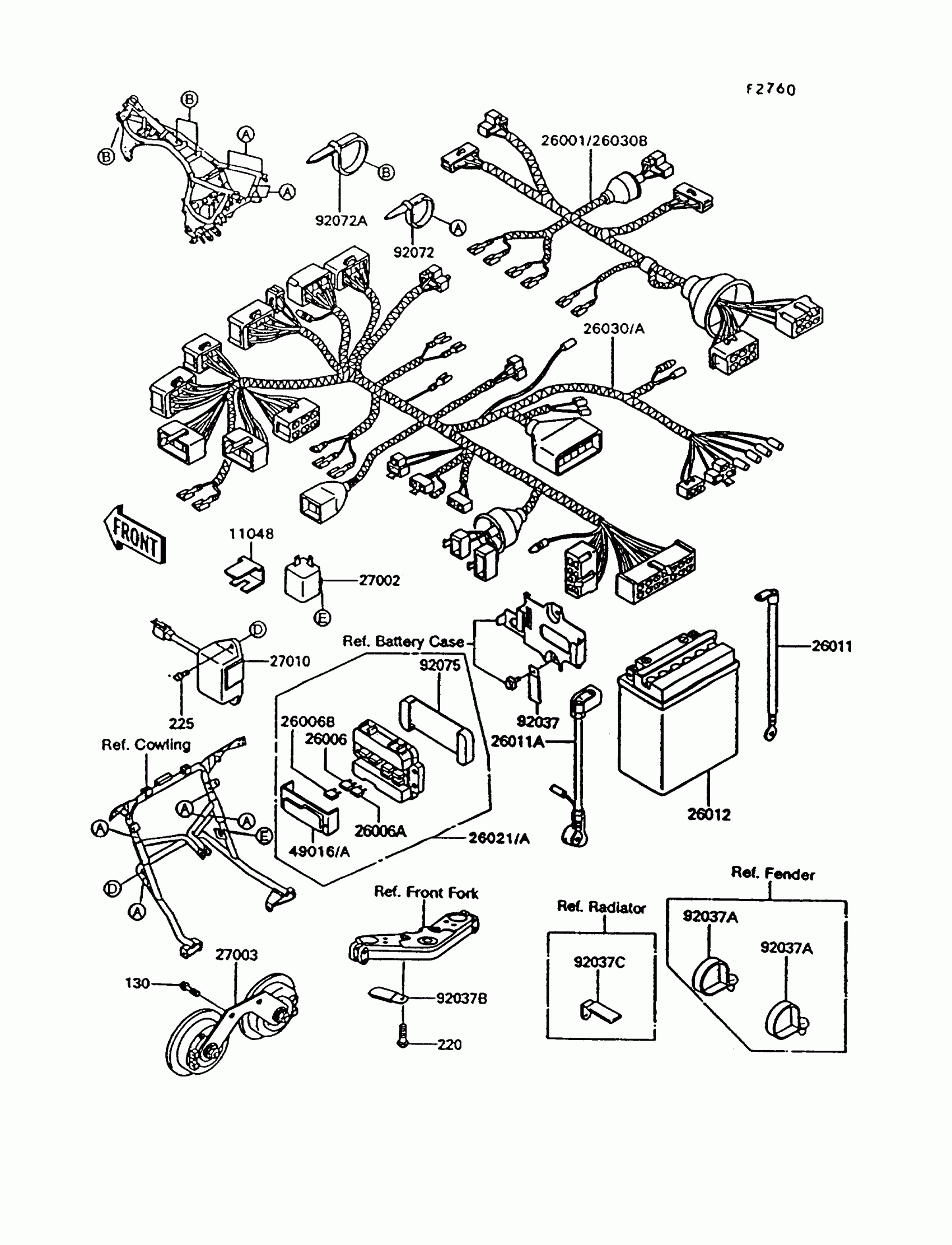

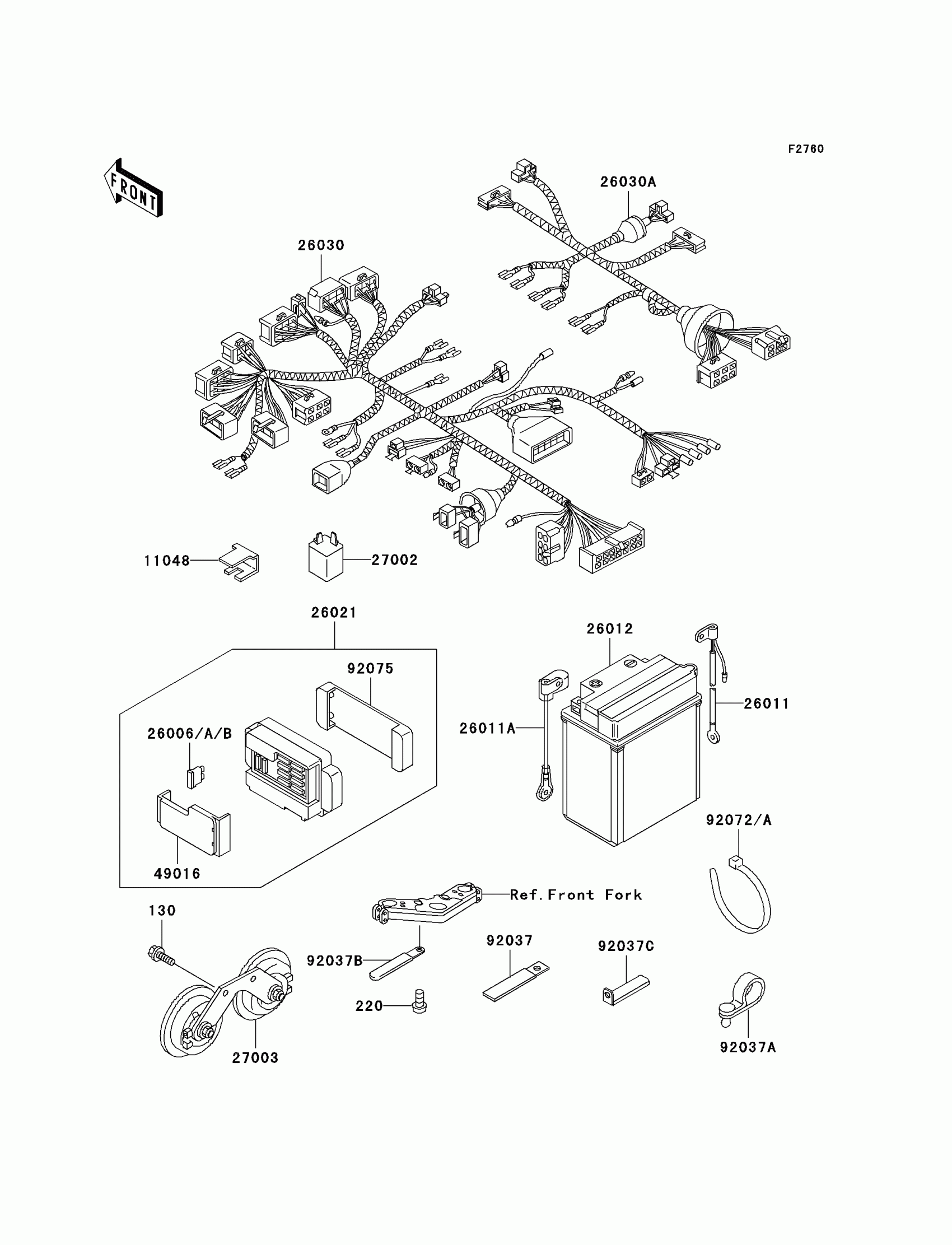

Find the part on the Chassis Electrical Equipment diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001A

HARNESS,FR

26001-1774

1
Out of stock

26001B

HARNESS,MAIN

26001-1838

1

$240.20

In stock

26006

1

$4.39

In stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1

$3.94

In stock

26011

1

$38.93

In stock

26011A

1

$38.93

In stock

26012

BATTERY,12V18AH,YB18L-A-TP

26012-1130

1
Out of stock

27002

1

$96.83

In stock

27003

HORN,DOUBLE

27003-1245

1

$216.96

In stock

27010

1

$228.55

In stock

49016

COVER-SEAL

49016-1118

1

$11.37

In stock

59416

CASE-ELECTRIC

59416-1060

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037B

CLAMP,L=45

92037-1539

1

$4.42

In stock

92037C

CLAMP,HARNESS

92037-1564

1

$10.17

In stock

92037D

CLAMP,L=200

92037-1576

1

$8.22

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92072A

BAND,L=365

92072-1197

1

$7.71

In stock

92075

DAMPER,JUNCTION BOX

92075-1688

1

$13.64

In stock

130

BOLT-FLANGED,6X12

130C0612

1
Out of stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
