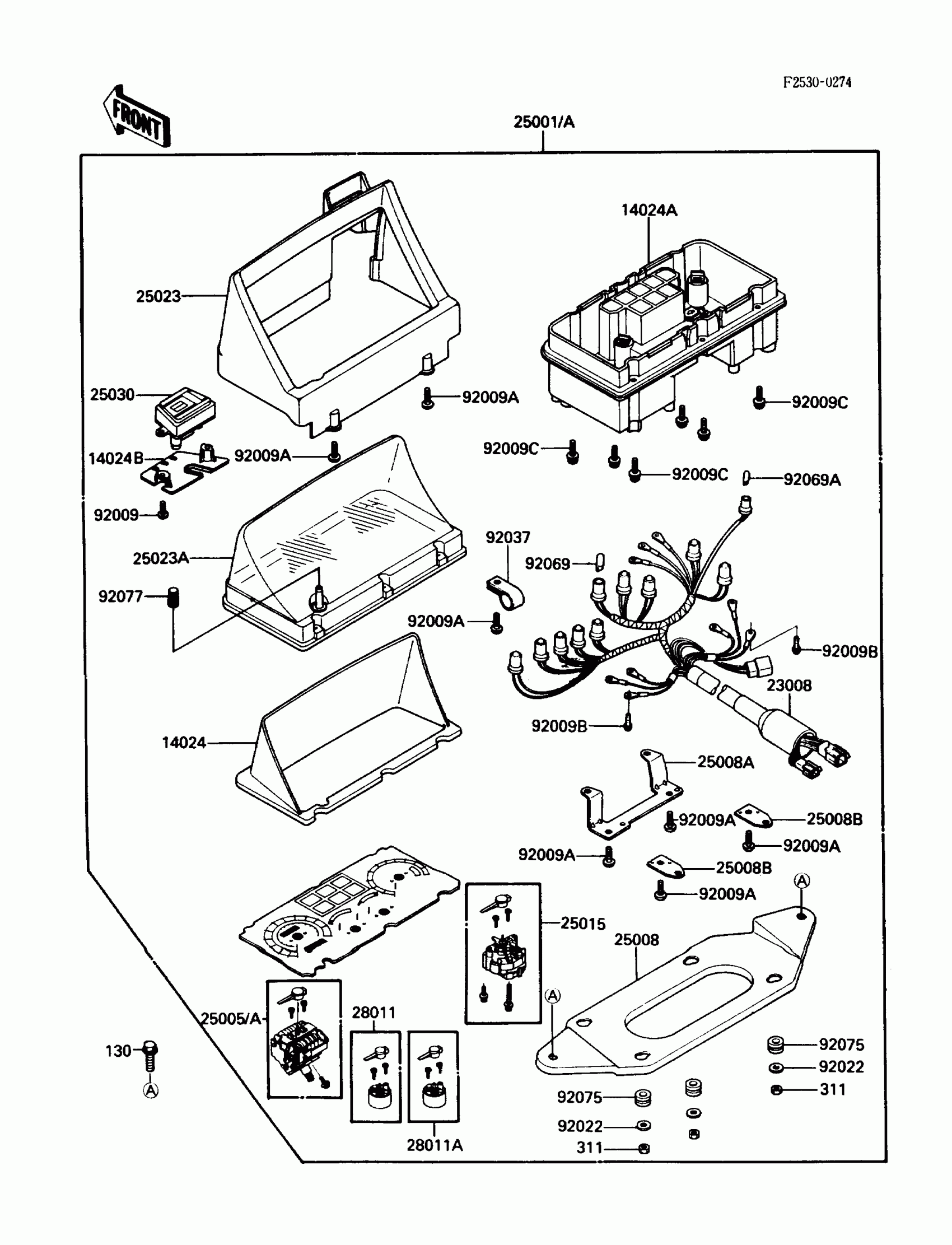

Kawasaki Concours Meter(s) Diagram

#

Description
Price

14024

COVER,METER,UPP

14024-1179

$144.95

14024A

COVER,METER HOUSING

14024-1338

Unavailable

14024B

COVER,DEGITAL CLOCK

14024-1339

Unavailable

23008

SOCKET-ASSY,METER

23008-1318

$264.38

25001

METER-ASSY,MPH

25001-1641

$1,672.78

25001A

METER-ASSY,KPH

25001-1663

Unavailable

25005

SPEEDOMETER,MPH

25005-1338

Unavailable

25005A

SPEEDOMETER,KPH

25005-1339

Unavailable

25008

BRACKET-METER

25008-1131

$106.02

25008A

BRACKET-METER,UPP

25008-1132

$38.31

25008B

BRACKET-METER,LWR

25008-1133

$20.47

25015

TACHOMETER,X1000R/MIN

25015-1262

$546.82

25023

COVER-METER CASE,UPP

25023-1147

Unavailable

25023A

COVER-METER CASE,UPP

25023-1149

$160.18

25030

CLOCK,DEGITAL

25030-1001

$491.04

28011

METER,FUEL

28011-1088

$112.92

28011A

METER,TEMP

28011-1089

$112.92

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

$4.08

92009A

SCREW,TAPPING,4X16

92009-1163

$3.13

92009B

SCREW,3X22

92009-1293

$3.53

92009C

SCREW,3X10

92009-1382

$4.42

92022

WASHER,5.2X16X1.2

92022-263

$1.22

92037

CLAMP,METER

92037-1818

$5.22

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,12V 3W,T7

92069-1020

Unavailable

92075

DAMPER

92075-1805

$5.19

92077

KNOB,RESET TRIP

92077-1017

$22.78

130

BOLT-FLANGED,6X12

130C0612

Unavailable

311

NUT-HEX

311B0500

$0.47
