1988 Kawasaki Concours Ignition System Diagram

← All diagrams

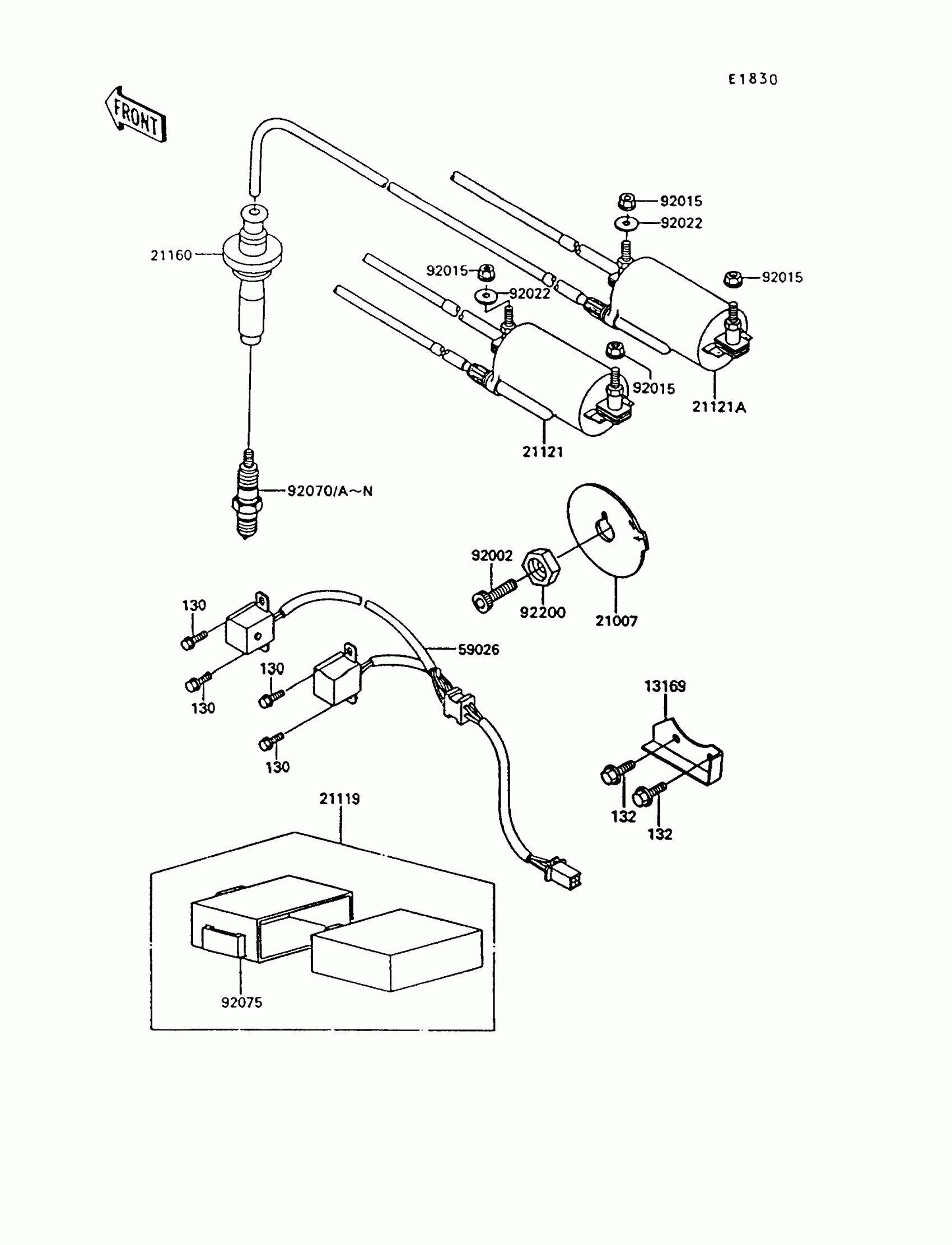

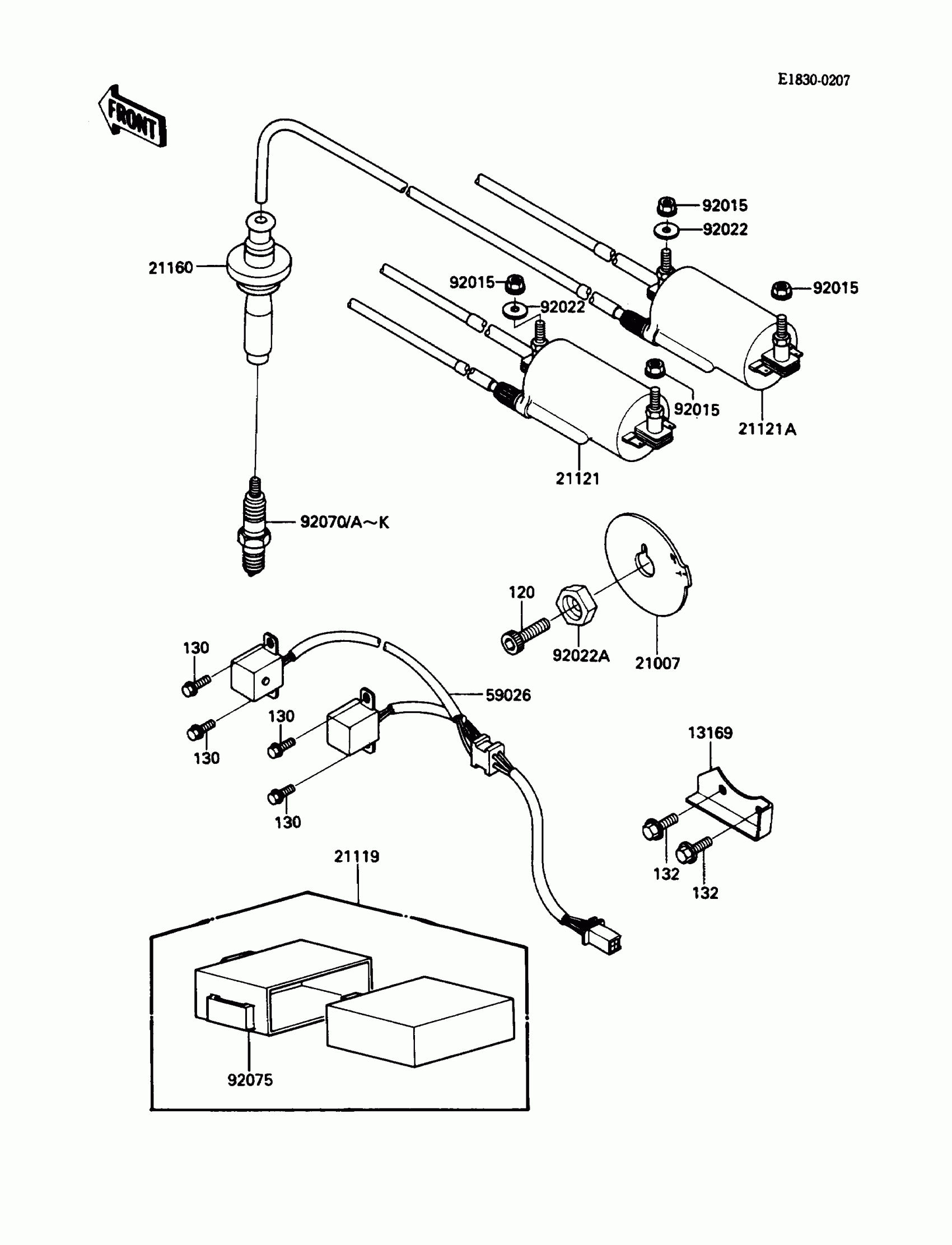

Find the part on the Ignition System diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,CHAIN GUIDE

13169-1748

1

$14.63

In stock

21007

ROTOR,PULSING COIL

21007-1109

1

$53.39

In stock

21119

IGNITER

21119-1110

1

$590.34

In stock

21121

COIL-IGNITION,#1

21121-1110

1

$152.92

In stock

21121A

COIL-IGNITION,#2

21121-1111

1

$152.92

In stock

21160

CAP-ASSY-PLUG

21160-1065

1

$54.68

In stock

59026

COIL-PULSING

59026-1061

1

$220.35

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92022

WASHER PLAIN

92022-024

1

$2.92

In stock

92022A

WASHER,ROTOR

92022-1497

1

$9.29

In stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

PLUG-SPARK,D8EA(NGK)

92070-1011

1
Out of stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

1

$2.92

In stock

92070D

1

$9.24

In stock

92070E

Not Available As Spare Part - Friction Washer

1
Out of stock

92070F

1

$2.74

In stock

92070G

Not Available As Spare Part - Friction Washer

1
Out of stock

92070H

Not Available As Spare Part - Friction Washer

1
Out of stock

92070I

PLUG-SPARK,DR7ES(NGK)

92070-1113

1
Out of stock

92070J

1

$2.92

In stock

92070K

PLUG-SPARK,X22ESR-U(ND)

92070-1117

1
Out of stock

92075

DAMPER,IGNITER

92075-1592

1

$46.64

In stock

120

BOLT-SOCKET,8X25

120P0825

1
Out of stock

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock
