1988 Kawasaki Concours Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

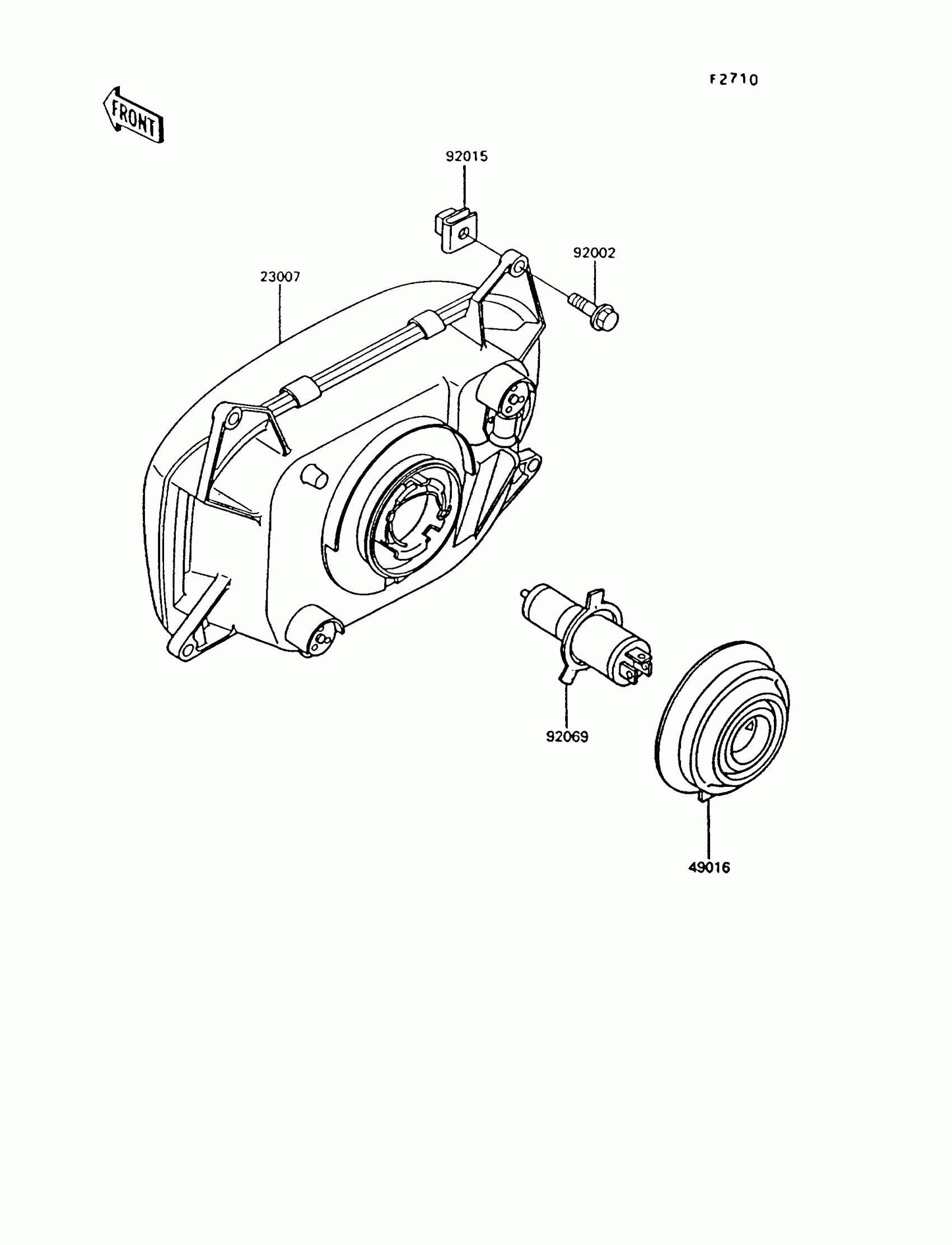

1988 Kawasaki Concours Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP,HEAD LAMP

23007-1132

1

$477.11

In stock

49016

COVER-SEAL,HEAD LAMP

49016-1108

1
Out of stock

92002

BOLT,6X25

92002-1135

1

$3.85

In stock

92015

NUT,6MM

92015-1094

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock
