1991 Kawasaki Concours Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

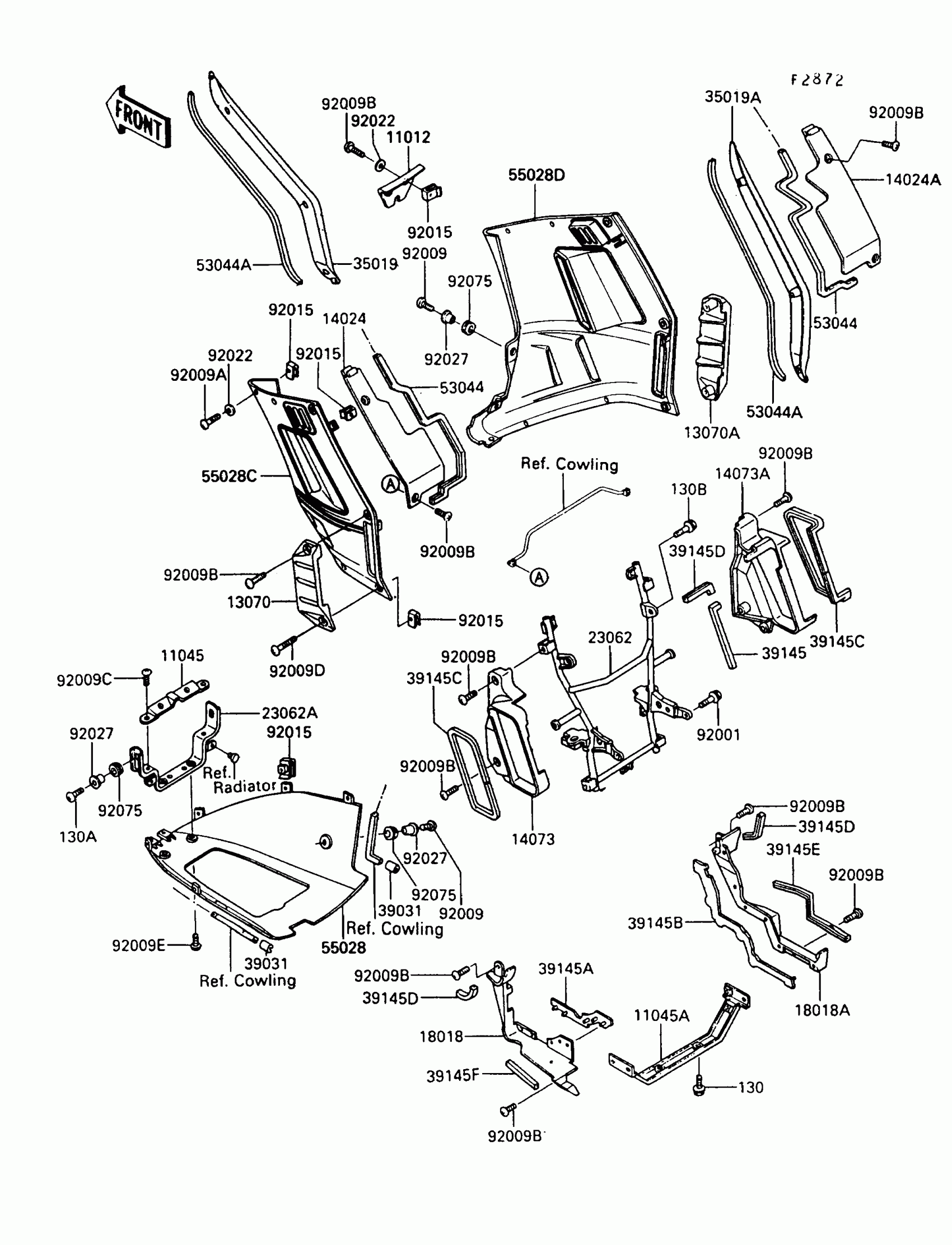

1991 Kawasaki Concours Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,RESERVOIR INSPECTION,RED

11012-1534-A5

1
Out of stock

11045

1

$14.00

In stock

11045A

1

$40.69

In stock

13070

GUIDE,SIDE COWLING,LH

13070-1171

1
Out of stock

13070A

GUIDE,SIDE COWLING,RH

13070-1172

1
Out of stock

14024

COVER,INNER COWLING,SIDE,LH

14024-1460

1
Out of stock

14024A

COVER,INNER COWLING,SIDE,RH

14024-1461

1
Out of stock

14073

DUCT,RADIATOR,RR,LH

14073-1276

1

$137.89

In stock

14073A

DUCT,RADIATOR,RR,RH

14073-1284

1

$137.89

In stock

18018

1

$108.98

In stock

18018A

1

$123.74

In stock

23062

1

$286.31

In stock

23062A

1

$38.93

In stock

35019

1

$69.32

In stock

35019A

1

$69.32

In stock

39031

CAP-END,TRIM

39031-1055

1
Out of stock

39145

1

$14.56

In stock

39145A

1

$23.36

In stock

39145B

1

$46.11

In stock

39145C

TRIM-SEAL,DUCT

39145-1078

1

$39.96

In stock

39145D

1

$8.80

In stock

39145E

1

$22.63

In stock

39145F

1

$20.73

In stock

53044

TRIM,INNER COWLING

53044-1184

1

$25.68

In stock

53044A

TRIM,INNER COWLING

53044-1184

1

$25.68

In stock

55028

COWLING,LWR,C.P.RED

55028-1124-A5

1
Out of stock

55028C

COWLING,SIDE,LH,C.P.RED

55028-5410-A5

1

$613.86

In stock

55028D

COWLING,SIDE,RH,C.P.RED

55028-5411-A5

1

$613.86

In stock

92001

1

$8.05

In stock

92009

SCREW,6X18,BLACK

92009-1306

1
Out of stock

92009A

SCREW,6X22

92009-1307

1
Out of stock

92009B

SCREW,6X14,BLACK

92009-1308

1
Out of stock

92009C

SCREW,5X10

92009-1335

1
Out of stock

92009D

SCREW,6X28,BLACK

92009-1400

1
Out of stock

92009E

SCREW,6X10

92009-1402

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92022

WASHER,6X16X1

92022-1818

1
Out of stock

92027

COLLAR,L=9.1,BLACK

92027-1935

1

$5.10

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X18

130C0618

1
Out of stock

130B

BOLT-FLANGED,8X12

130J0812

1
Out of stock
