1991 Kawasaki Concours Frame Fitting Diagram

← All diagrams

Find the part on the Frame Fitting diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

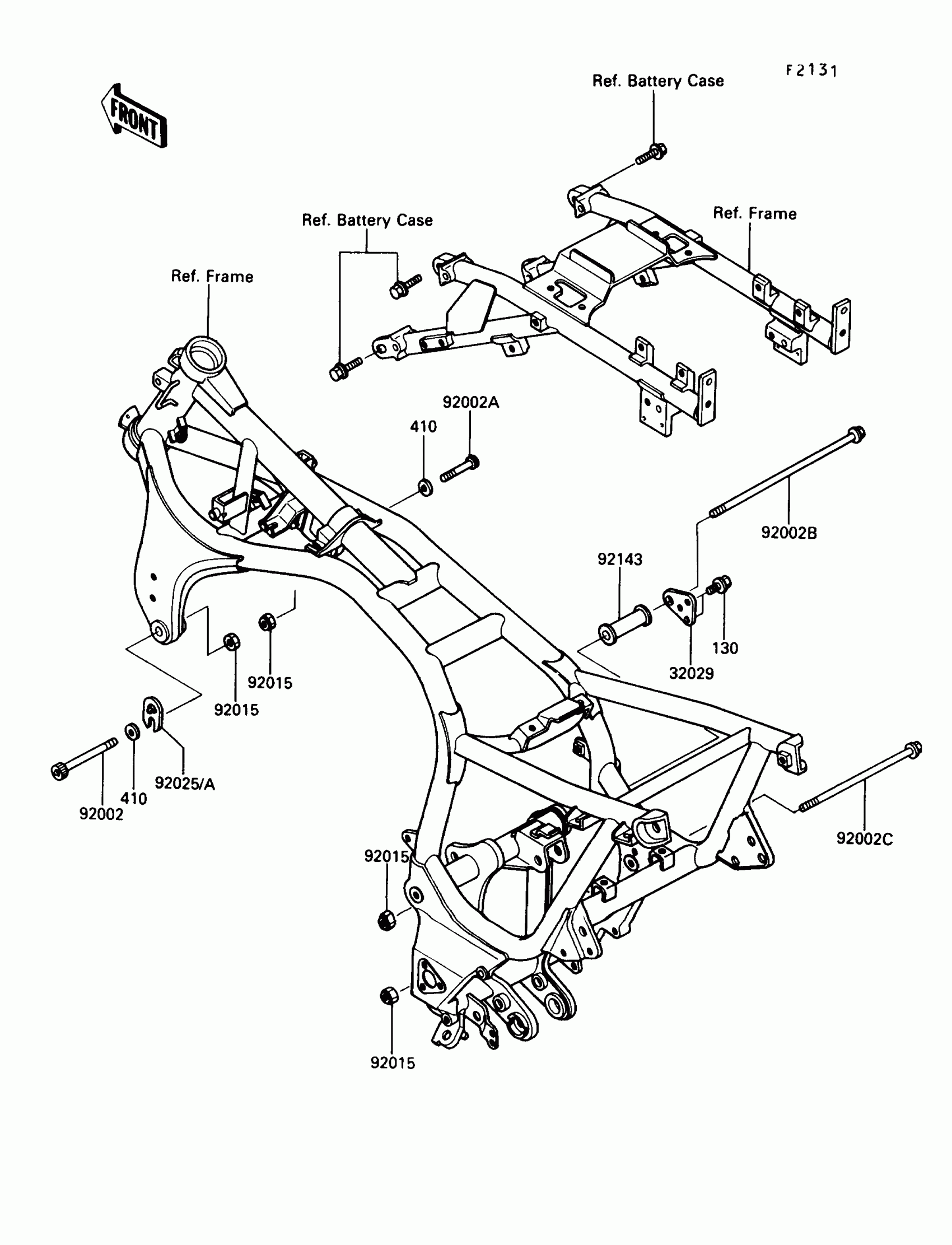

1991 Kawasaki Concours Frame Fitting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE,RR,UPP,RH

32029-1473

1
Out of stock

92002

BOLT,SOCKET,10X100

92001-1888

1
Out of stock

92002A

BOLT,SOCKET,10X72

92001-1889

1
Out of stock

92002B

BOLT,FLANGED,10X265

92002-1722

1
Out of stock

92002C

BOLT,FLANGED,10X215

92002-1822

1
Out of stock

92015

NUT,10MM

92015-1429

1
Out of stock

92025

SHIM,ENGINE MOUNT,T=1.2

92025-1616

—
Out of stock

92025A

SHIM,ENGINE MOUNT,T=2.0

92025-1617

—
Out of stock

92143

COLLAR,L=57.5

92143-1027

1
Out of stock

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock
