1988 Kawasaki Concours Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

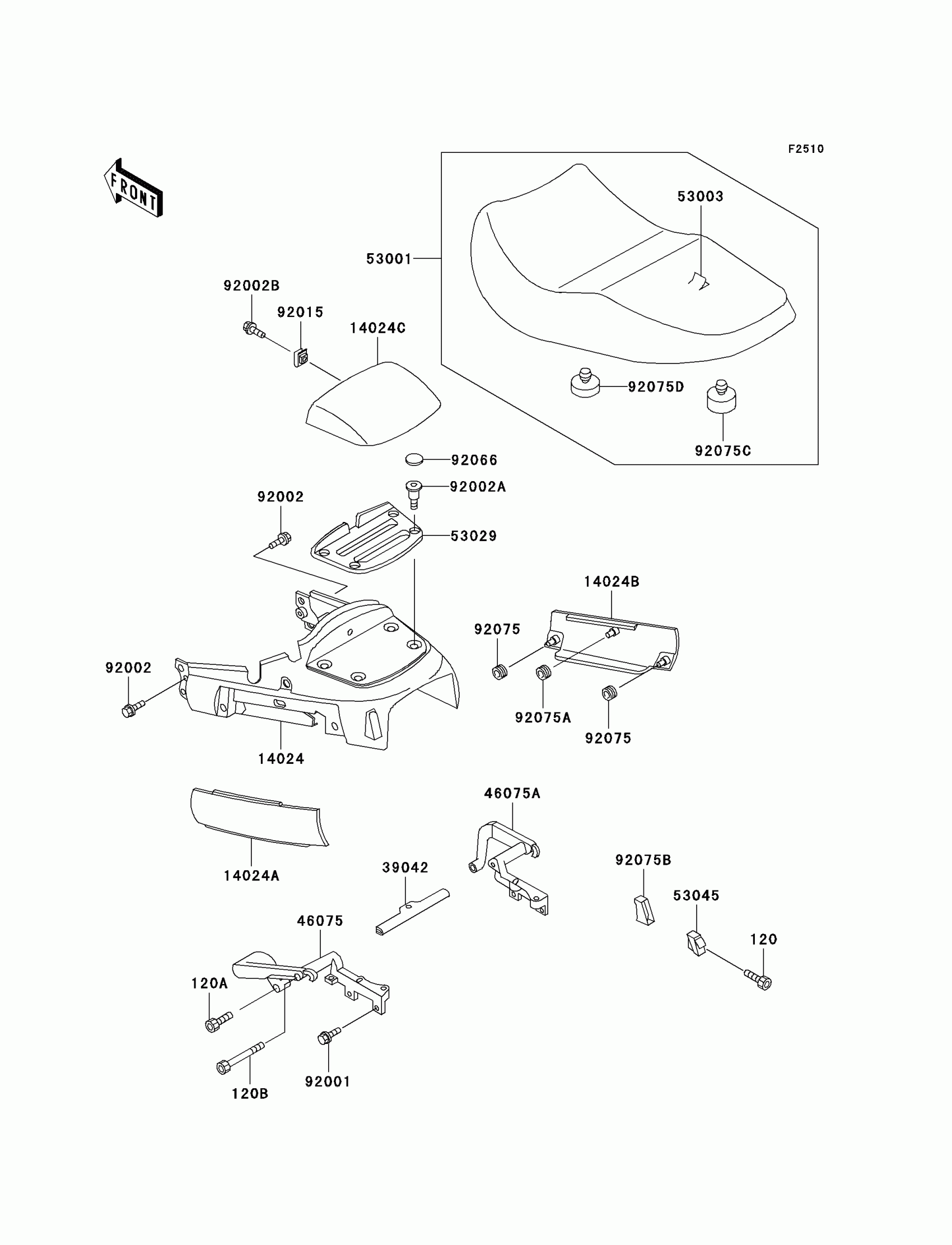

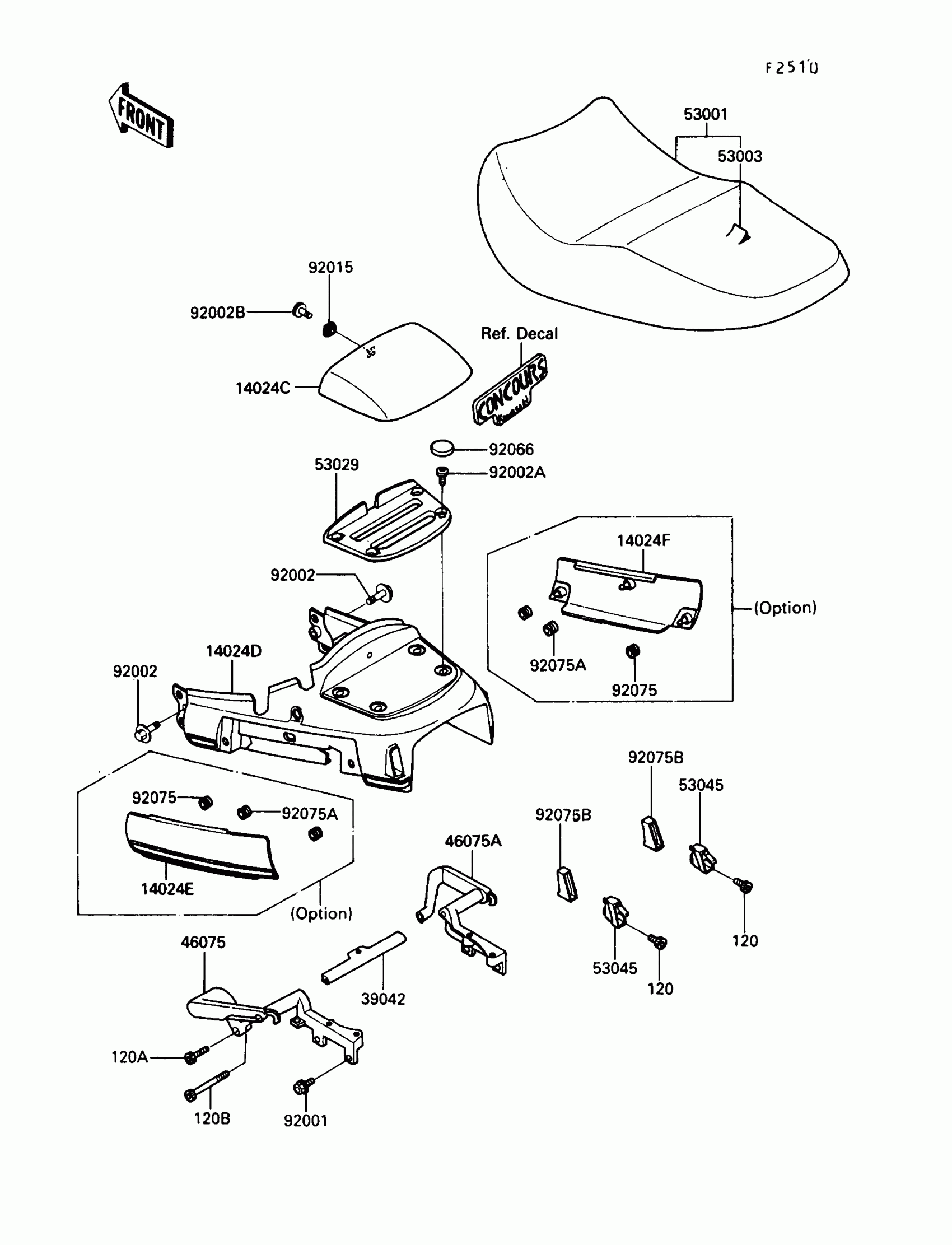

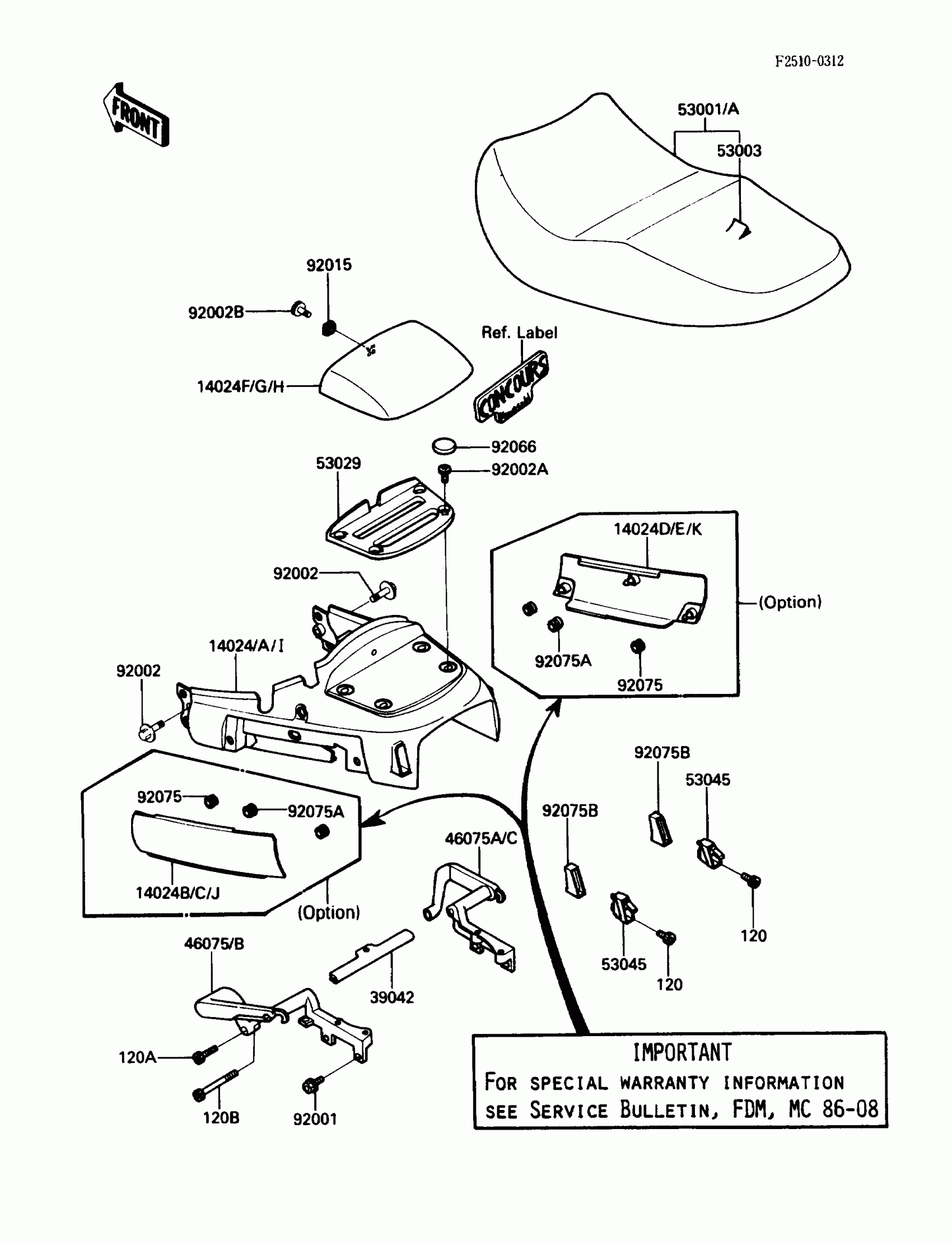

1988 Kawasaki Concours Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024F

COVER,CARRIER,C.P.RED

14024-1227-A5

1
Out of stock

14024I

COVER,SEAT,C.P.RED

14024-5063-A5

1
Out of stock

14024J

COVER,SEAT COVER,LH,C.P.RED

14024-5064-A5

1
Out of stock

14024K

COVER,SEAT COVER,RH,C.P.RED

14024-5065-A5

1
Out of stock

39042

1

$47.04

In stock

46075B

GRIP,SEAT,RR,LH

46075-1070

1

$135.58

In stock

46075C

GRIP,SEAT,RR,RH

46075-1071

1

$135.58

In stock

53001A

SEAT-ASSY,DUAL

53001-1506

1

$600.53

In stock

53003

LEATHER,SEAT

53003-1162

1
Out of stock

53029

CARRIER,TAIL

53029-1069

1

$74.19

In stock

53045

1

$38.93

In stock

92001

BOLT,8X18

92001-1359

1

$4.25

In stock

92002

BOLT,6X25

92002-1135

1

$3.85

In stock

92002A

BOLT,SOCKET,8X23.5

92002-1598

1
Out of stock

92002B

BOLT,5MM

92002-1724

1
Out of stock

92015

NUT,5MM

92015-1710

1

$4.93

In stock

92066

PLUG,19X6

92066-1251

1
Out of stock

92075

DAMPER RUBBER

92075-051

1

$2.34

In stock

92075A

DAMPER

92075-1470

1

$7.31

In stock

92075B

1

$5.76

In stock

120

BOLT-SOCKET,6X14

120P0614

1
Out of stock

120A

BOLT-SOCKET,8X25

120S0825

1
Out of stock

120B

BOLT-SOCKET,8X90

120S0890

1
Out of stock
