1991 Kawasaki Concours Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

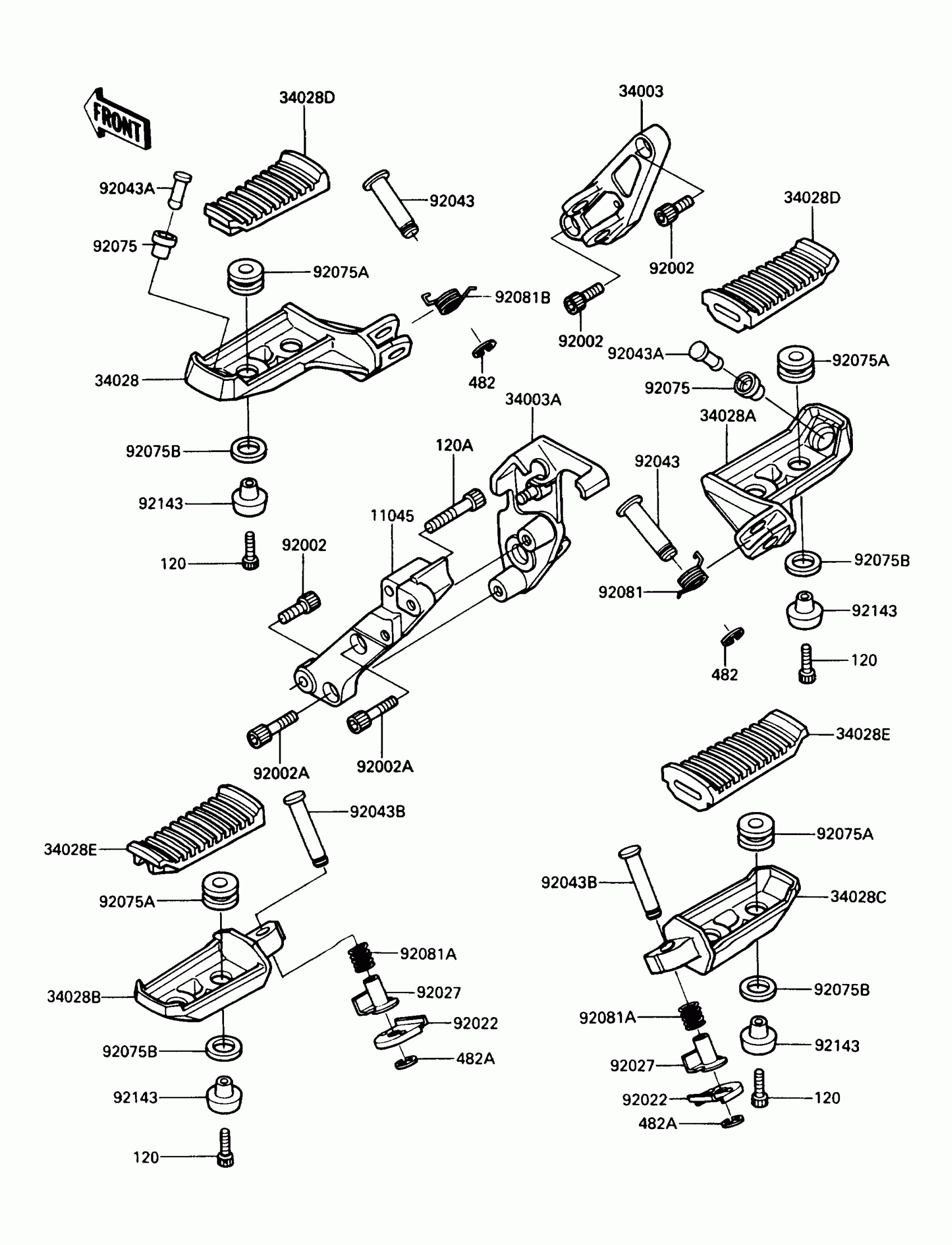

1991 Kawasaki Concours Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,FRONT STEP,RH

11044-1911

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-1259

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1260

1
Out of stock

34028

STEP,FR,LH

34028-1198

1

$82.57

In stock

34028A

STEP,FR,RH

34028-1199

1

$75.72

In stock

34028B

STEP,RR,LH

34028-1200

1

$88.62

In stock

34028C

STEP,RR,RH

34028-1201

1

$88.62

In stock

34028D

STEP,FR,RUBBER

34028-1206

1

$23.19

In stock

34028E

STEP,RR,RUBBER

34028-1207

1

$21.98

In stock

92002

BOLT,SOCKET,8X20

92002-1178

1
Out of stock

92002A

BOLT,SOCKET,8X25

92002-1442

1
Out of stock

92022

WASHER,STEP,RR

92022-1507

1
Out of stock

92027

COLLAR,STEP

92027-1732

1
Out of stock

92043

PIN,12X42.5

92043-1145

1
Out of stock

92043A

PIN,BANK SENSOR

92043-1219

1
Out of stock

92043B

PIN,6X38.5

92043-1238

1
Out of stock

92075

DAMPER,BANK SENSOR

92075-1597

1
Out of stock

92075A

RUBBER,FENDER COVER

92075-174

1
Out of stock

92075B

DAMPER,FEMALE

92075-175

1
Out of stock

92081

SPRING,STEP RETURN,RH

92081-1587

1
Out of stock

92081A

SPRING,STEP,RR

92081-1612

1
Out of stock

92081B

SPRING,STEP RETURN,LH

92081-1733

1
Out of stock

92143

COLLAR,STEP

92143-1005

1
Out of stock

120

BOLT-SOCKET,5X20

120P0520

1
Out of stock

120A

BOLT-SOCKET,8X40

120P0840

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482L0100

1
Out of stock

482A

CIRCLIP-TYPE-E,5MM

482L5000

1
Out of stock
