1991 Kawasaki Concours Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

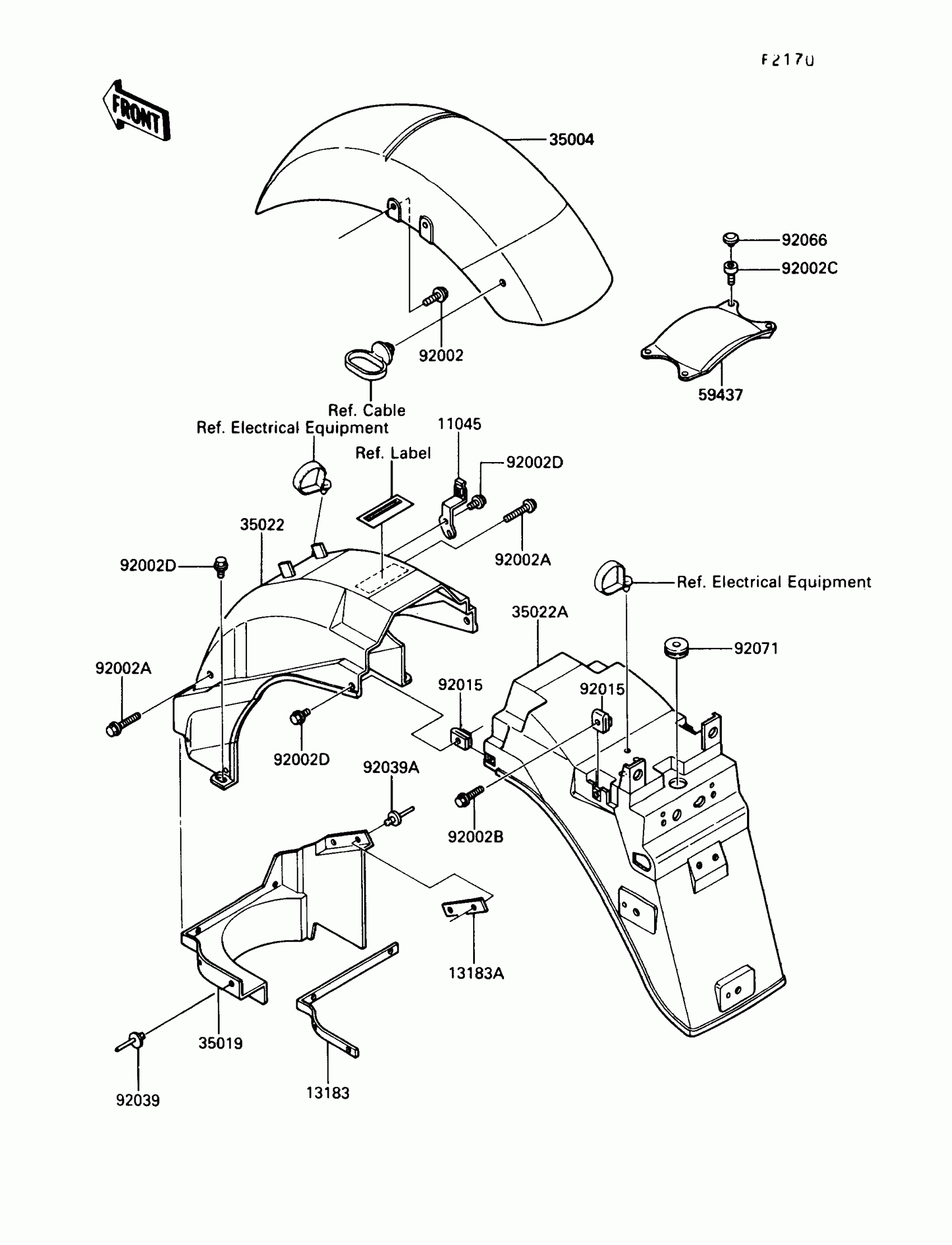

1991 Kawasaki Concours Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,RR BRAKE RESERVOIR

11044-1782

1
Out of stock

13183

PLATE,REAR FENDER FLAP,LH

13183-1021

1
Out of stock

13183A

PLATE,REAR FENDER FLAP,RH

13183-1022

1
Out of stock

35004

FENDER-FRONT,RED/BLACK

35004-1191-CR

1
Out of stock

35019

FLAP,REAR FENDER,FR

35019-1183

1
Out of stock

35022

FENDER-COMP-REAR,FR

35022-1223

1
Out of stock

35022A

FENDER-COMP-REAR,RR,BLACK

35022-1224-6Z

1
Out of stock

59437

STABILIZER,C.P.RED

59437-1056-A5

1
Out of stock

92002

BOLT,6X16

92002-1219

1
Out of stock

92002A

BOLT,6X55

92002-1707

1
Out of stock

92002B

BOLT,6X40

92002-1711

1
Out of stock

92002C

BOLT,SOCKET,8X18

92002-1835

1
Out of stock

92002D

BOLT,6X16

92002-1852

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92039

RIVET

92039-1106

1
Out of stock

92039A

RIVET

92039-1147

1
Out of stock

92066

PLUG

92066-1216

1
Out of stock

92071

GROMMET,SENSOR LEAD

92071-1058

1
Out of stock
← Decal Footrest →
