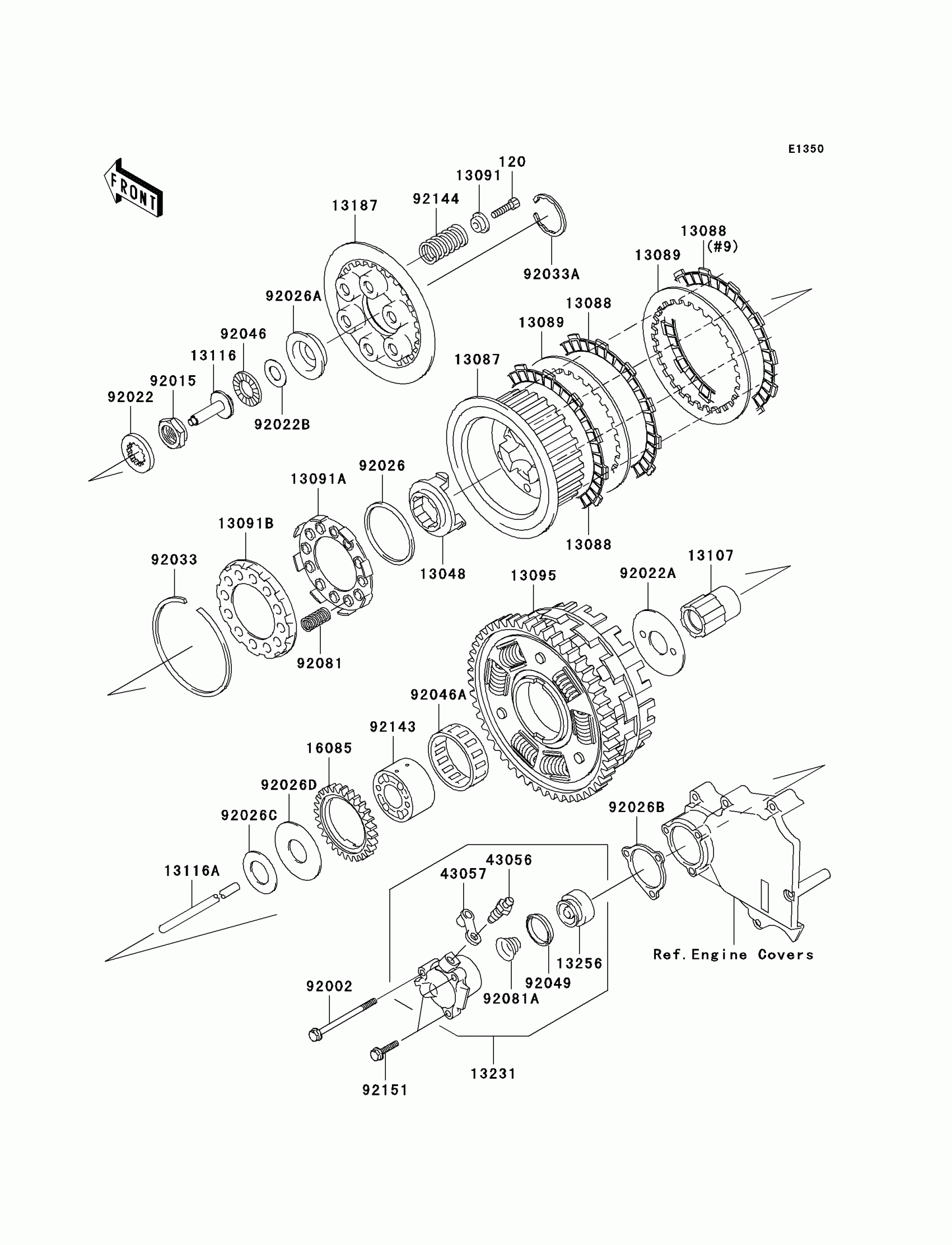

2005 Kawasaki ZZR1200 Clutch Diagram
Find the part on the Clutch diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
120
BOLT-SOCKET,6X25
120Q0625
1
Out of stock
13087
HUB-CLUTCH
13087-1121
1
Out of stock
13116A
ROD-PUSH,CLUTCH
13116-1140
1
Out of stock
13231
RELEASE-ASSY-CLUTCH
13231-1076
1
Out of stock
13256
PISTON
13256-1052
1
Out of stock
92002
BOLT,FLANGED,6X80
92002-1568
1
Out of stock
92046A
BEARING-NEEDLE,K550X62X18
92046-1200
1
Out of stock
92049
SEAL-OIL,PISTON
92049-1165
1
Out of stock
