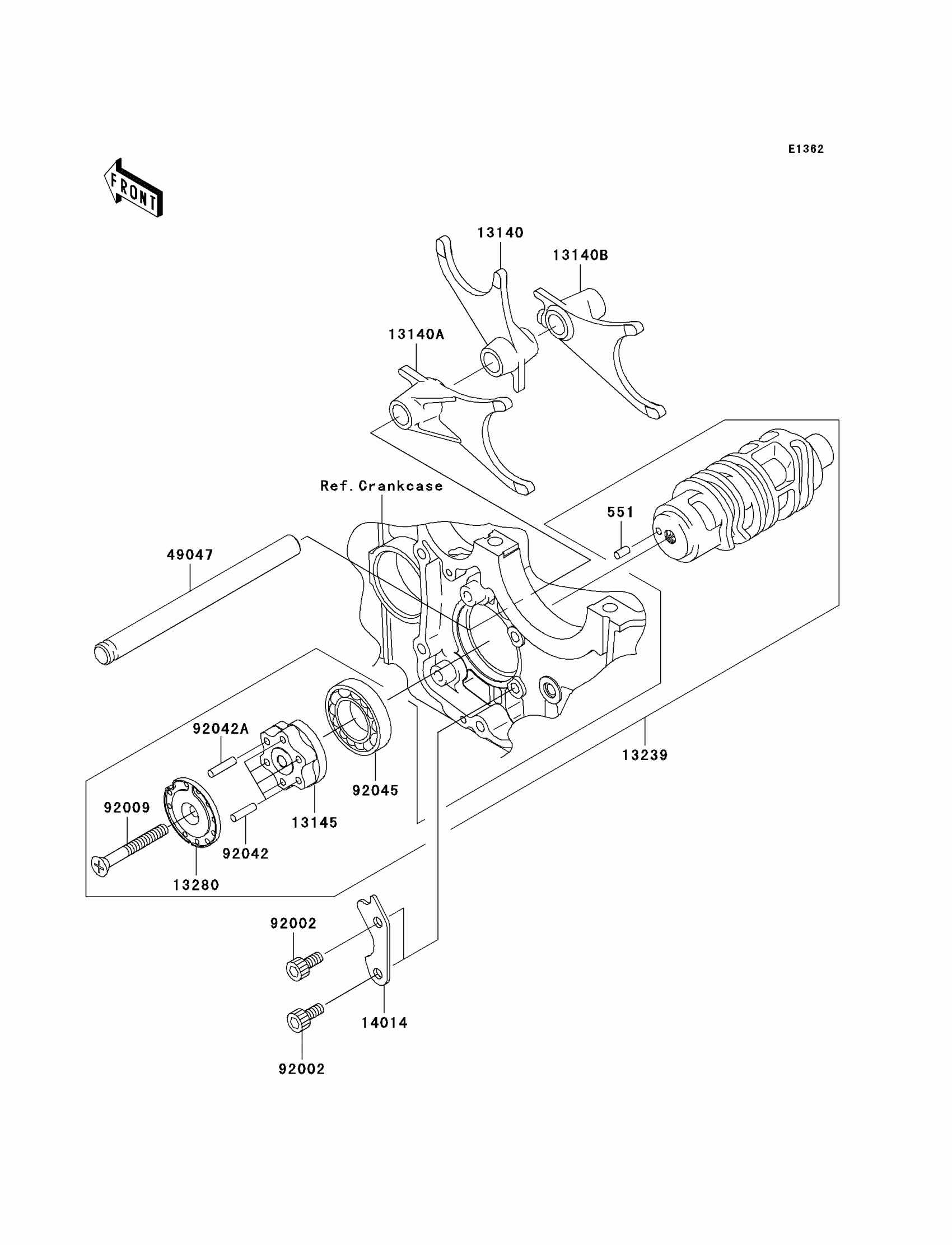

Kawasaki ZZR1200 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

551

PIN-DOWEL,4X8

551A0408

$0.68

13140

FORK-SHIFT

13140-1196

$103.41

13140A

FORK-SHIFT

13140-1197

$103.41

13140B

FORK-SHIFT

13140-1198

$103.41

13145

CAM-CHANGE DRUM

13145-1091

$57.95

13239

DRUM-ASSY-CHANGE

13239-1213

$263.27

13280

HOLDER

13280-1230

$24.08

14014

PLATE-POSITION,CHANGE DRUM

14014-1059

$14.00

49047

ROD-SHIFT

49047-1055

$34.85

92002

BOLT,SOCKET,6X16

92002-1778

$3.81

92009

SCREW,6X45

92009-1599

$3.03

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92042A

PIN,DOWEL,4X17.8

92042-020

$4.46

92045

BEARING-BALL,16005

92045-1045

$28.80
