2005 Kawasaki ZZR1200 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

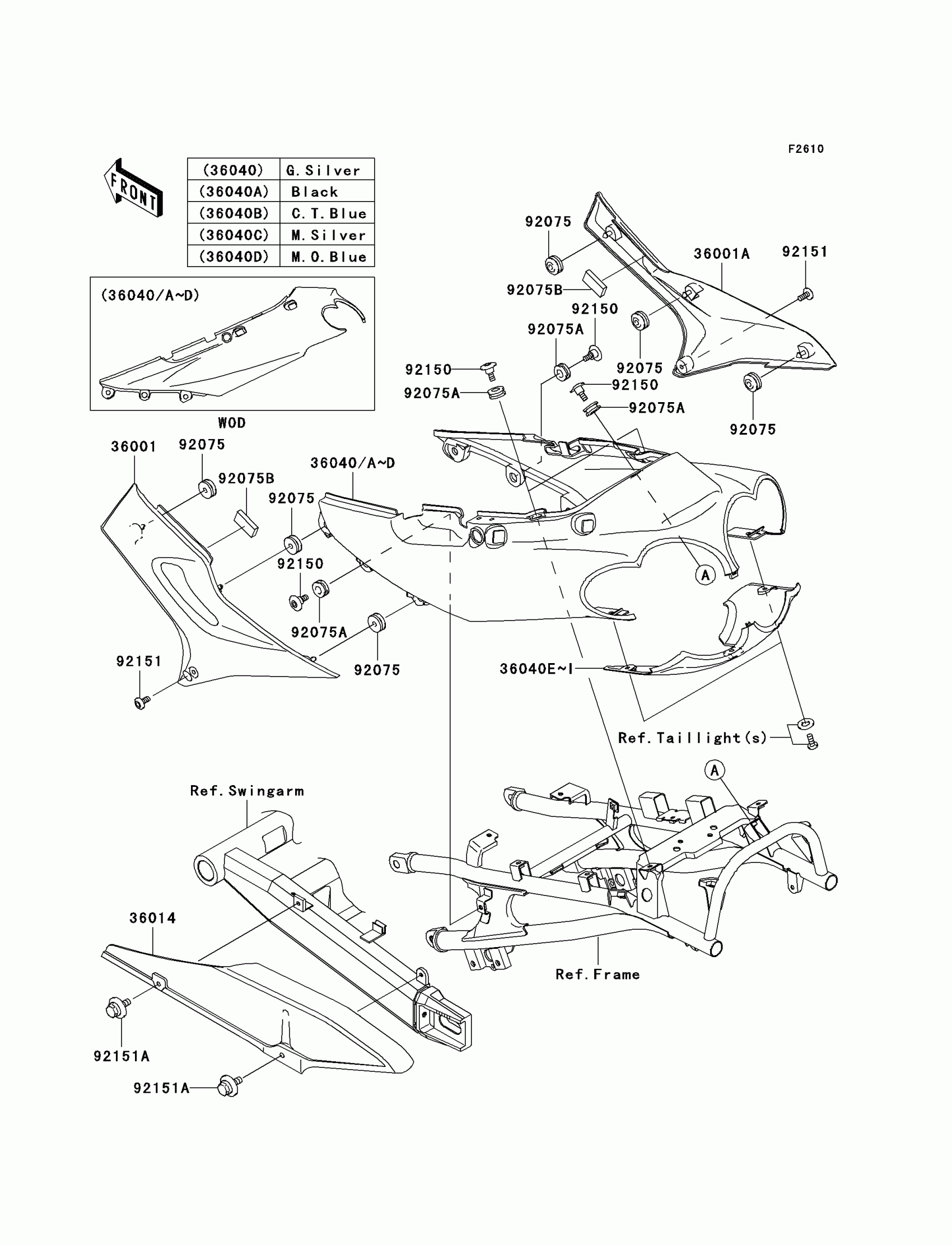

2005 Kawasaki ZZR1200 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,M.GRAYSTONE

36001-1668-C4

1
Out of stock

36001A

COVER-SIDE,RH,M.GRAYSTONE

36001-1669-C4

1
Out of stock

36014

CASE-CHAIN

36014-1261

1
Out of stock

36040D

COVER-TAIL,M.O.BLUE

36040-1062-726

1
Out of stock

36040I

COVER-TAIL,LWR,M.O.BLUE

36040-1063-726

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

92075B

DAMPER

92075-1902

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1154

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92151A

BOLT,6X12

92151-1985

1
Out of stock
