2005 Kawasaki ZZR1200 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

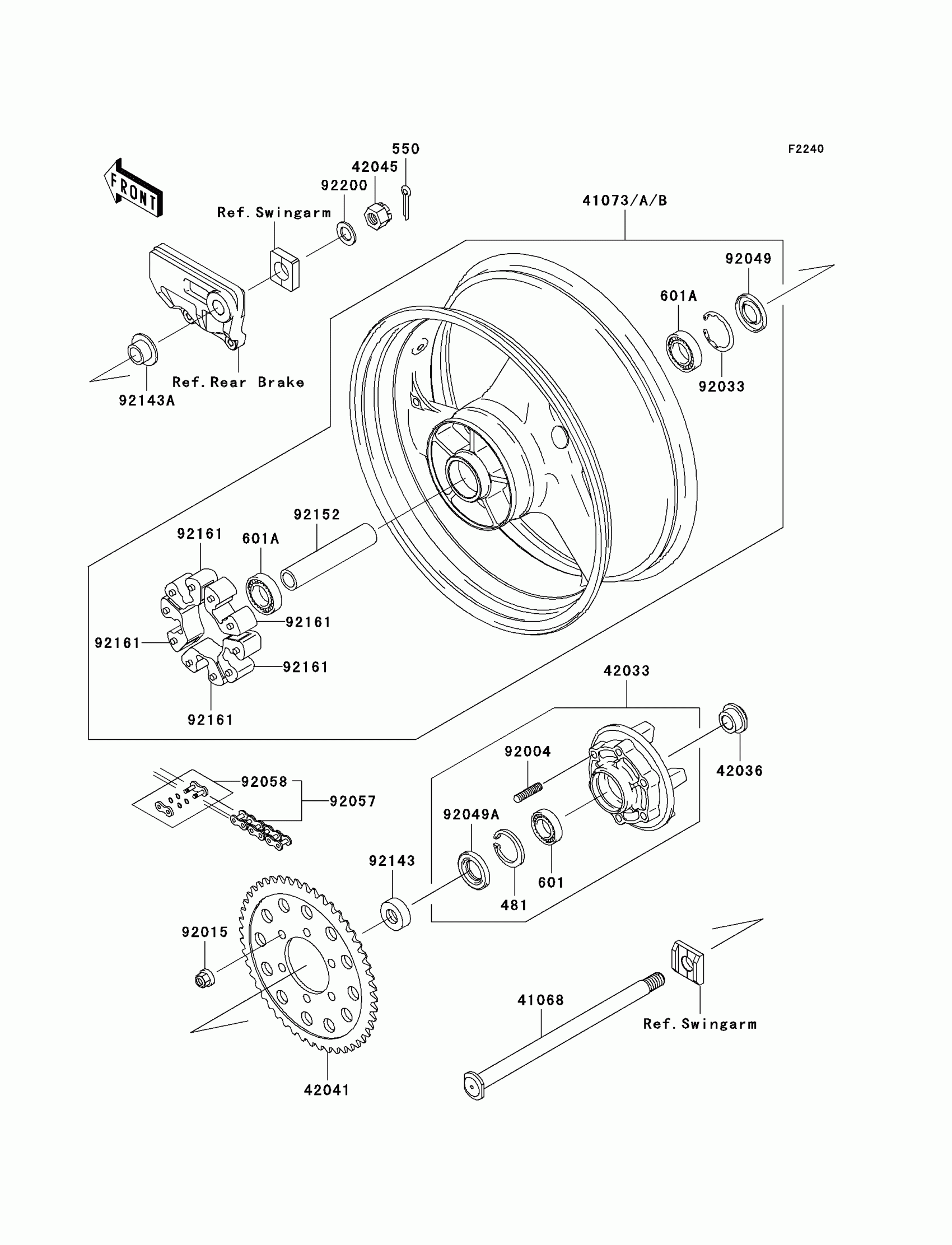

2005 Kawasaki ZZR1200 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

CIRCLIP

481J5500

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6006G

601B6006G

1
Out of stock

601A

BEARING-BALL,#6304UUC3

601B6304UU

1
Out of stock

41068

AXLE,FR

41068-1447

1
Out of stock

41073

WHEEL-ASSY,RR,BLACK

41073-1669-R2

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1203

1
Out of stock

42036

SLEEVE,RR HUB COUPLING,L=22

42036-1366

1
Out of stock

42041

SPROCKET-HUB,44T

42041-1417

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

92004

STUD,10X19

92004-1275

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92049A

SEAL-OIL,PJN40556

92049-1263

1
Out of stock

92057

CHAIN,DRIVE,EK50ZVX2X112L

92057-0005

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-1104

1
Out of stock

92143

COLLAR,REAR AXLE,L=14

92143-1094

1
Out of stock

92143A

COLLAR,RR AXLE,RH,L=18

92143-1915

1
Out of stock

92152

COLLAR,RR HUB,L=146

92152-1319

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-1069

1
Out of stock

92200

WASHER,19X32X2.6

92200-1489

1
Out of stock
