2003 Kawasaki ZRX1200R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

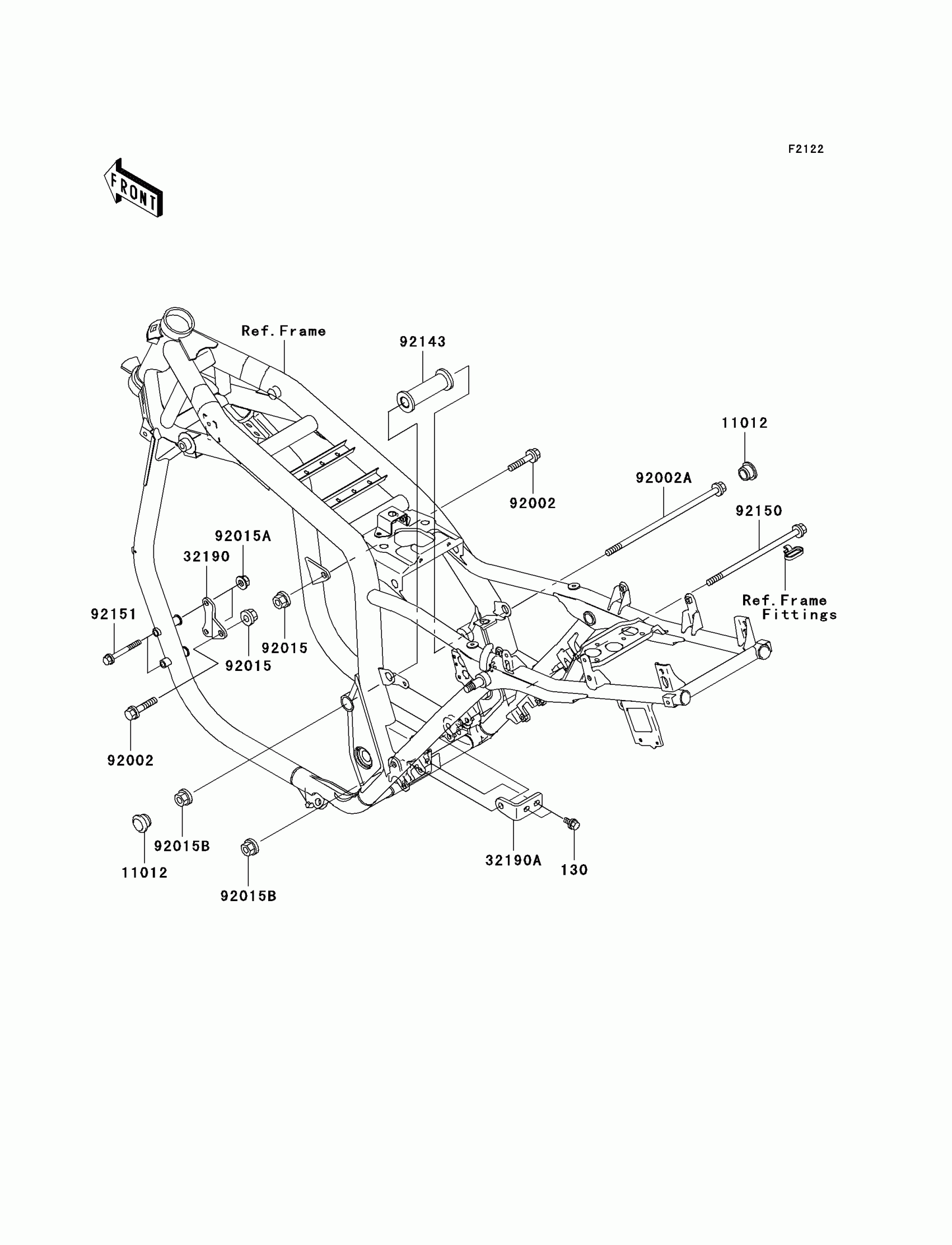

2003 Kawasaki ZRX1200R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

11012

CAP

11012-1896

1

$4.34

In stock

32190

BRACKET-ENGINE

32190-1066

1

$12.69

In stock

32190A

BRACKET-ENGINE

32190-1230

1

$11.08

In stock

92002

BOLT,FLANGED,10X50

92002-1314

1

$8.44

In stock

92002A

BOLT,FLANGED,10X265

92002-1722

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92015A

1

$3.43

In stock

92015B

NUT,LOCK,10MM

92015-1522

1

$7.49

In stock

92143

COLLAR,L=61.5

92143-1916

1

$18.15

In stock

92150

BOLT,FLANGED,10X215

92150-1142

1

$17.83

In stock

92151

BOLT,FLANGED,8X69

92151-1995

1

$3.31

In stock
