2003 Kawasaki ZRX1200R Crankshaft Diagram

← All diagrams

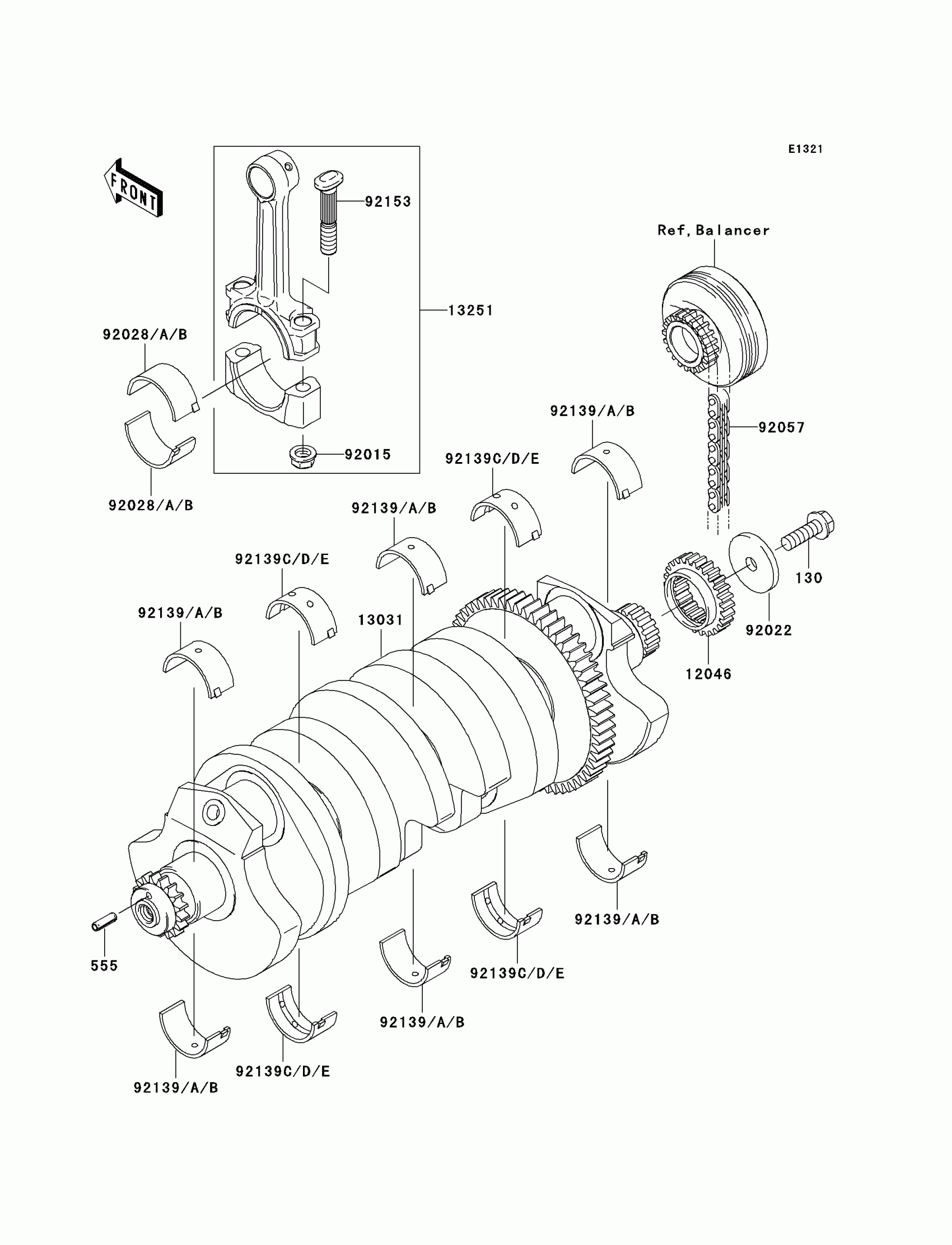

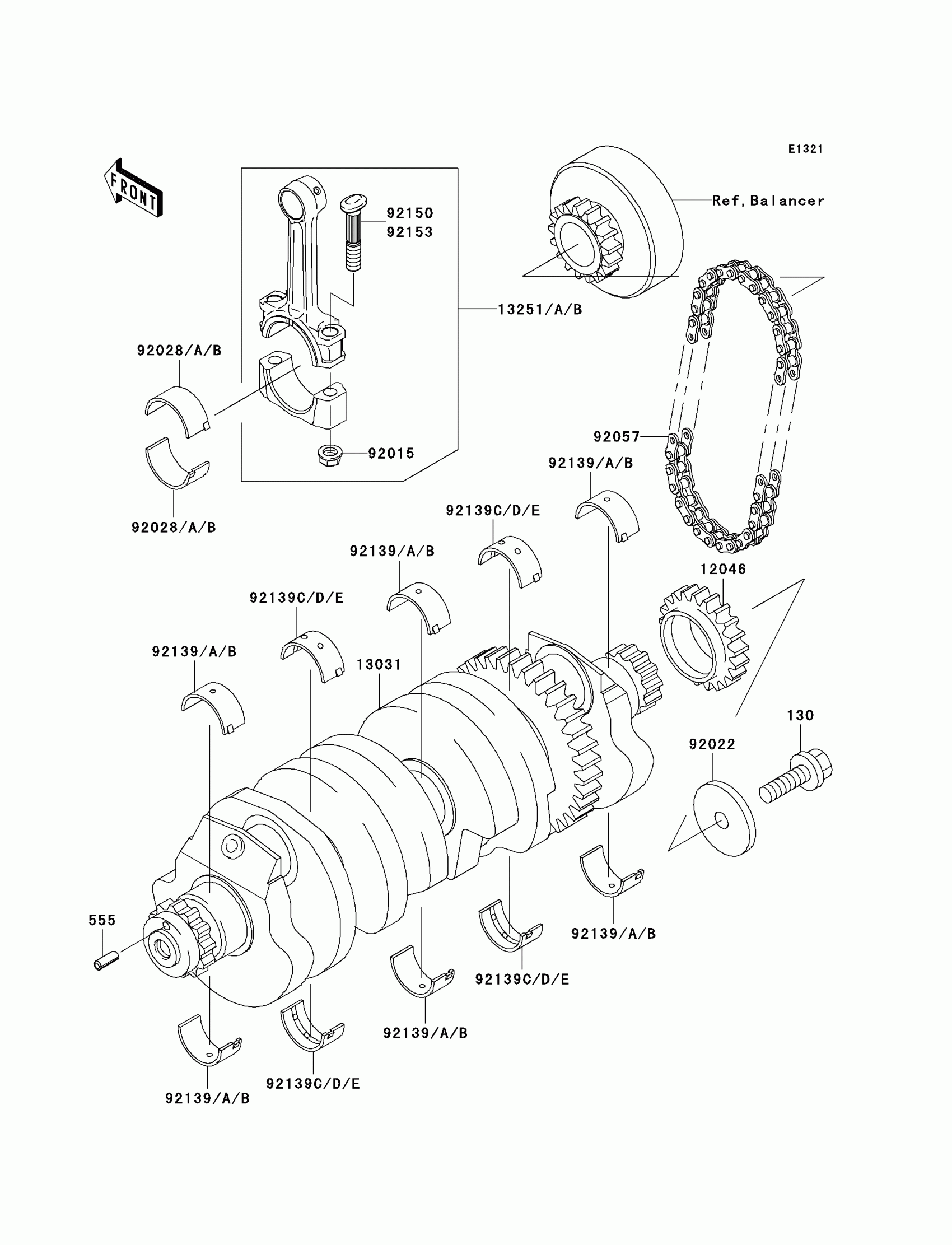

Find the part on the Crankshaft diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki ZRX1200R Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

555

PIN-SPRING

555A0412

1

$4.44

In stock

12046

SPROCKET,21T

12046-1084

1

$71.67

In stock

13031

CRANKSHAFT-COMP

13031-1484

1

$1,383.58

In stock

13251B

ROD-ASSY-CONNECTING,I

13251-1139-II

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1559

1

$4.93

In stock

92022

WASHER,8.5X36X4

92022-1633

1

$7.56

In stock

92028

—

$20.00

In stock

92028A

—

$22.39

In stock

92028B

—

$22.39

In stock

92057

CHAIN,GENERATOR

92057-1209

1

$69.72

In stock

92139

—

$24.92

In stock

92139A

—

$23.88

In stock

92139B

—

$23.88

In stock

92139C

—

$24.92

In stock

92139D

—

$24.92

In stock

92139E

—

$24.92

In stock

92153

BOLT

92153-1102

1
Out of stock
