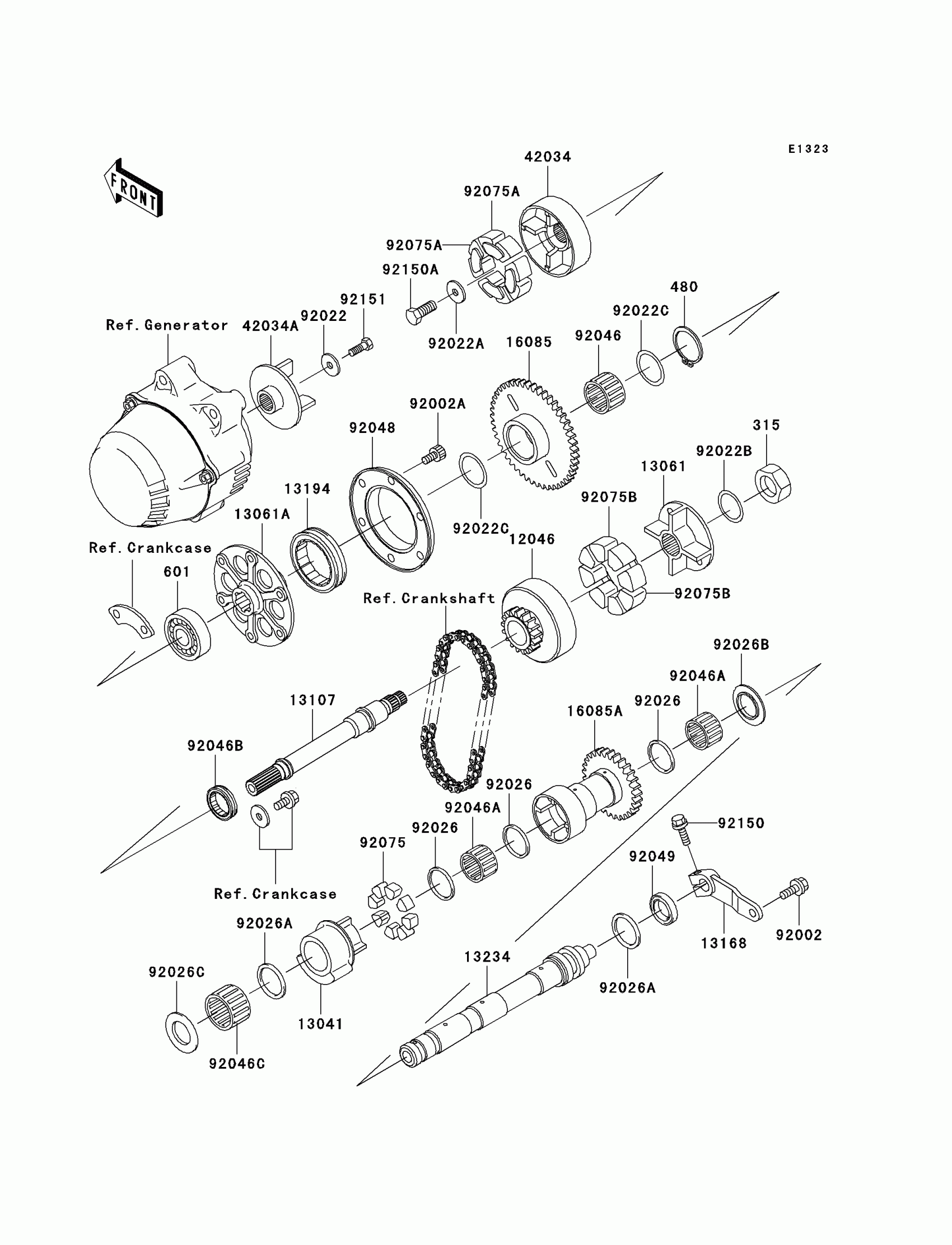

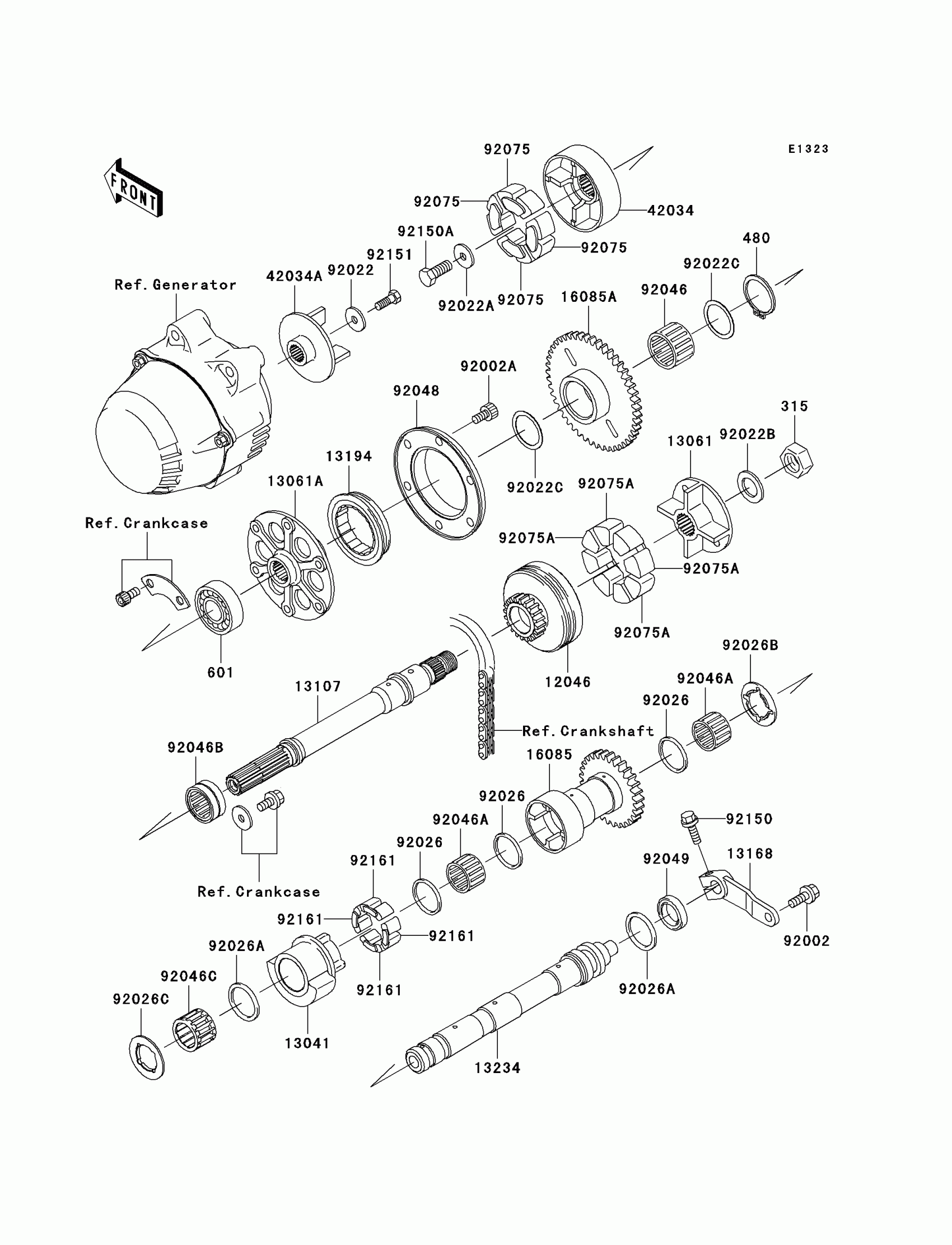

Kawasaki ZRX1200R Balancer Diagram

#

Description
Price

315

NUT-HEX-FINE

315G1600

Unavailable

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

601

BEARING-BALL,#6203

601A6203

$10.67

12046

SPROCKET,GENERATOR

12046-1083

Unavailable

13041

BALANCER

13041-1132

$158.06

13061

BOSS,SPROCKET

13061-1183

$75.82

13061A

BOSS

13061-1264

$121.33

13107

SHAFT

13107-1108

$209.04

13168

LEVER,BALANCER

13168-1529

$29.77

13194

CLUTCH-ONEWAY

13194-1086

$108.18

13234

SHAFT-COMP,BALNCER

13234-1072

$209.04

16085

GEAR,ONEWAY CLUTCH

16085-1173

$121.35

16085A

GEAR,BALANCER

16085-1293

$253.79

42034

COUPLING

42034-1055

$84.97

42034A

COUPLING

42034-1056

$77.21

92002

BOLT,6X16

92002-1439

$3.57

92002A

BOLT,SOCKET,6X12

92002-1796

$3.57

92022

WASHER,6X19.5X2

92022-1517

$1.90

92022A

WASHER,8X22X3

92022-1518

$3.95

92022B

WASHER,16X26X2

92022-1519

$4.90

92022C

WASHER,25.3X32X0.5

92022-225

$4.18

92026

SPACER,21.3X24.3X1.5

92026-1213

$5.61

92026A

SPACER,21.3X26X1

92026-1223

$7.47

92026B

SPACER

92026-1265

$41.65

92026C

SPACER

92026-1271

$41.65

92046

BEARING-NEEDLE,K253020S

92046-1022

$21.49

92046A

BEARING-NEEDLE,K21X25X17V2

92046-1105

$20.42

92046B

BEARING-NEEDLE,RNA4903

92046-1109

$47.16

92046C

BEARING-NEEDLE

92046-1155

$29.50

92048

RACE,ONEWAY CLUTCH

92048-1068

$65.27

92049

SEAL-OIL

92049-1569

$6.43

92075

DAMPER,BALANCER

92075-1709

$4.24

92075A

DAMPER,COUPLING

92075-1790

$9.29

92075B

DAMPER,COUPLING

92075-1810

$9.29

92150

BOLT,6X20

92150-1010

Unavailable

92150A

BOLT,8X20

92150-1488

$8.44

92151

BOLT,6X16

92151-1652

$1.34
