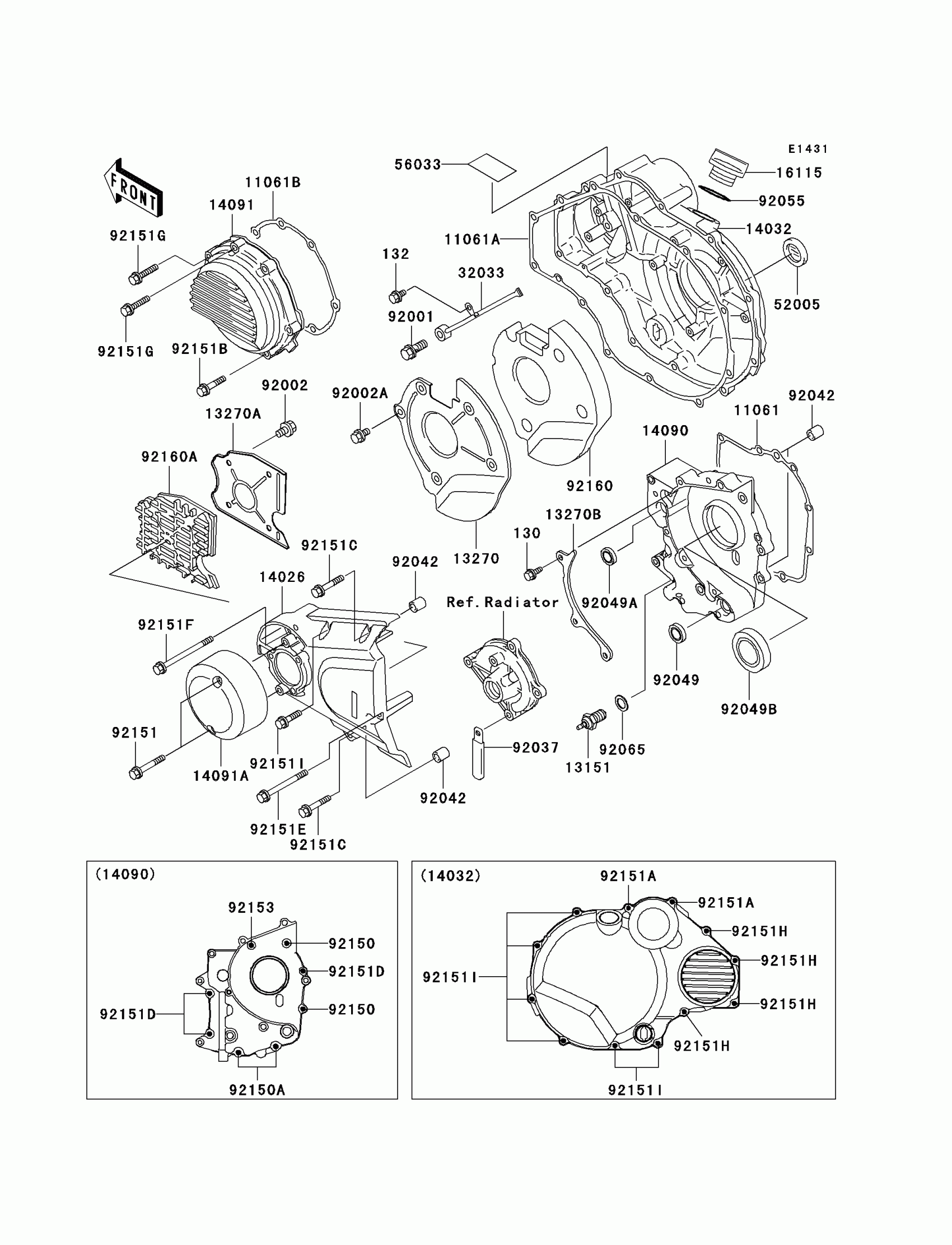

2003 Kawasaki ZRX1200R Engine Cover Diagram
Find the part on the Engine Cover diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13270
PLATE
13270-1765
13270A
PLATE
13270-1771
13270B
PLATE,TRANSMISSION
13270-1911
14026
COVER-CHAIN
14026-1280
92002A
BOLT,6X10
92002-1541
92037
CLAMP,WIRING HARNESS,L=60
92037-1069
92049
SEAL-OIL
92049-1564
92049A
SEAL-OIL
92049-1566
92049B
SEAL-OIL
92049-1567
92150
BOLT,6X20
92150-1010
92151H
BOLT,6X30
92151-1201
92153
BOLT,M6X20
92153-1114
130
BOLT-FLANGED
130S0614
132
BOLT-FLANGED-SMALL
132H0510
