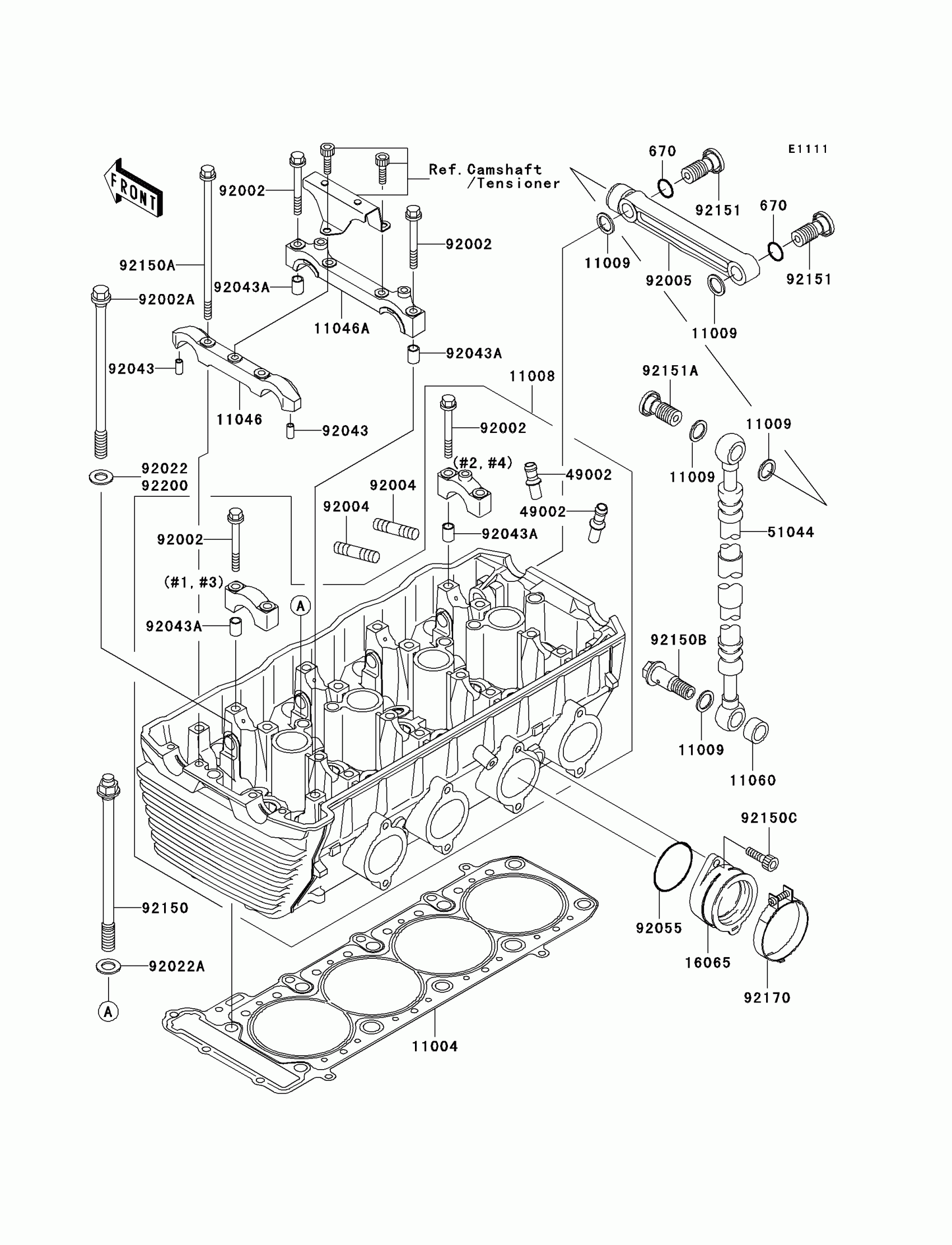

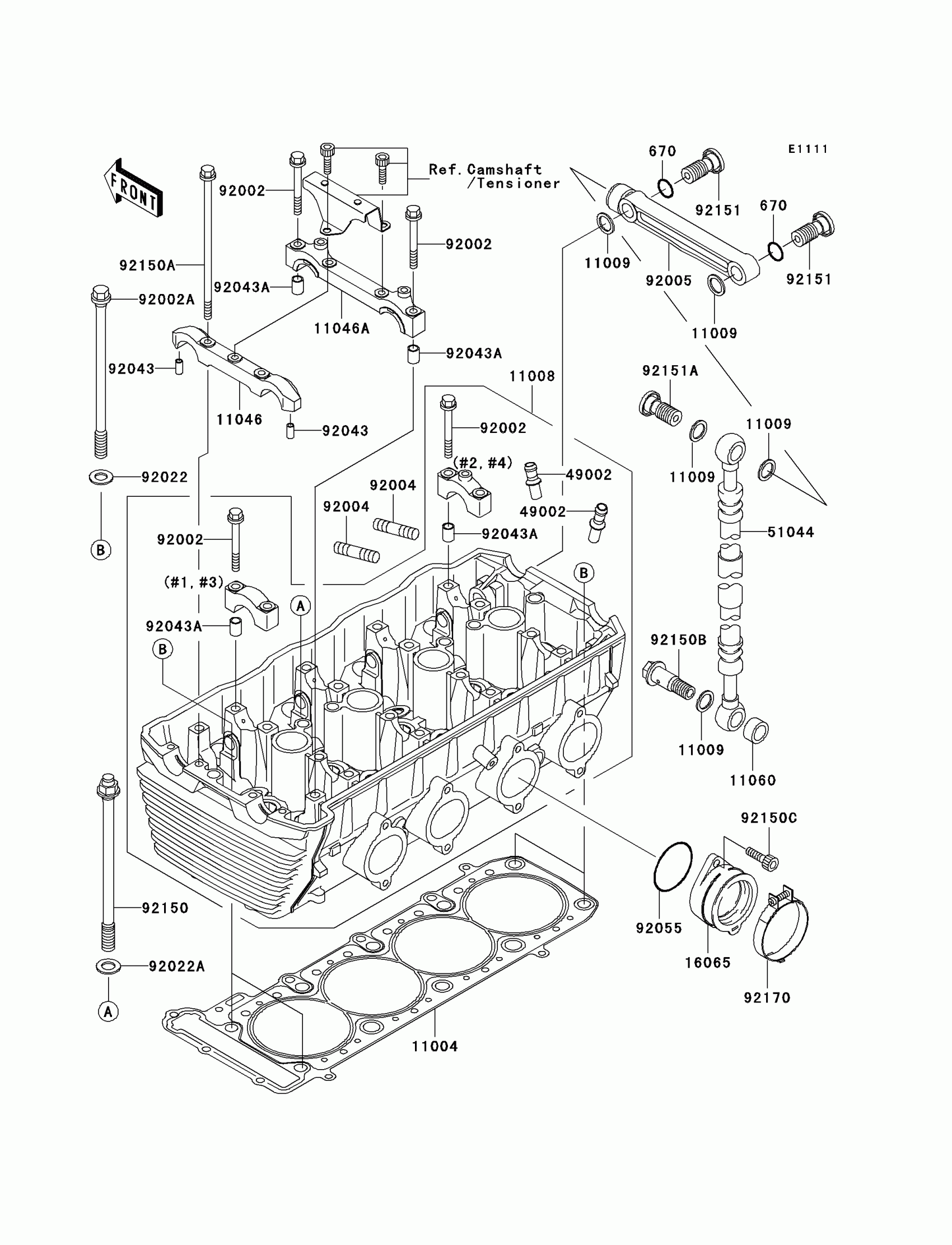

Find the part on the Cylinder Head diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki ZRX1200R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,15MM

670B2015

1
Out of stock

11004

GASKET-HEAD

11004-1377

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1404

1
Out of stock

11009

GASKET,14X19.5X1.4

11009-1461

1
Out of stock

11046

BRACKET,CAMSHAFT,#9

11046-1150

1
Out of stock

11046A

BRACKET,CAMSHAFT,#10

11046-1151

1
Out of stock

11060

GASKET

11060-1369

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1307

1
Out of stock

49002

GUIDE-VALVE

49002-1097

—
Out of stock

51044

TUBE-ASSY,OIL

51044-1198

1
Out of stock

92002

BOLT,6X40

92002-1756

1
Out of stock

92002A

BOLT,10X164

92002-1943

1
Out of stock

92004

STUD,8X22

92004-1181

1
Out of stock

92005

FITTING

92005-1328

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1
Out of stock

92022A

WASHER,11.5X20.5X1.6

92022-1720

1
Out of stock

92043

PIN,4.2X6X12

92043-1262

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92055

RING-O,43.7X1.9

92055-1401

1
Out of stock

92150

BOLT,11X164

92150-1075

1
Out of stock

92150A

BOLT,6X148

92150-1076

1
Out of stock

92150B

BOLT,BANJO,12X40.5

92150-1077

1
Out of stock

92150C

BOLT,SOCKET,6X16

92150-1655

1
Out of stock

92151

BOLT

92151-1147

1
Out of stock

92151A

BOLT

92151-1148

1
Out of stock

92170

CLAMP

92170-1066

1
Out of stock
