2005 Kawasaki ZR-7S (Canada Only) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

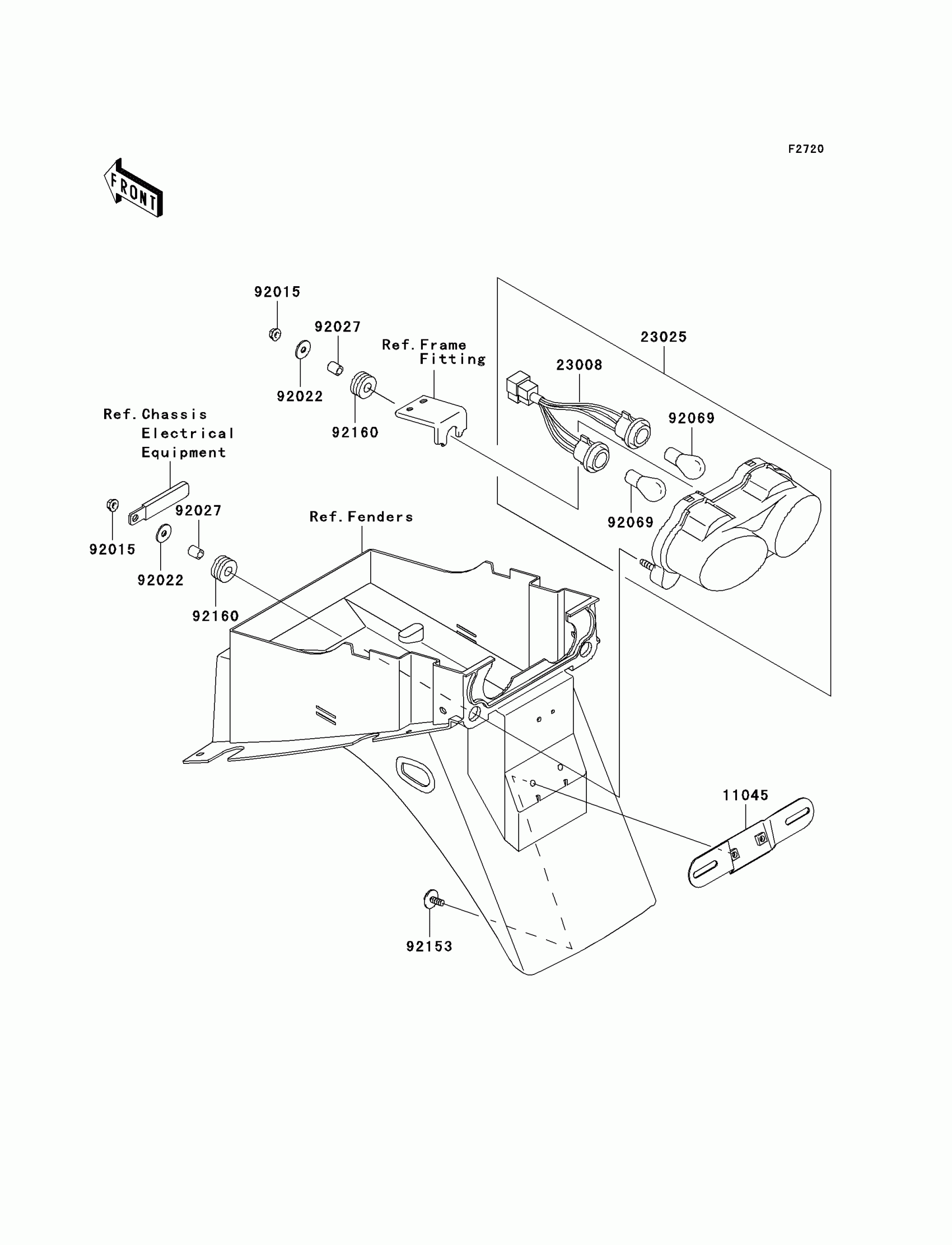

2005 Kawasaki ZR-7S (Canada Only) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-1364

1
Out of stock

23025

LAMP-TAIL

23025-1301

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1
Out of stock

92153

BOLT,6X16

92153-0684

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock
