2005 Kawasaki ZR-7S (Canada Only) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

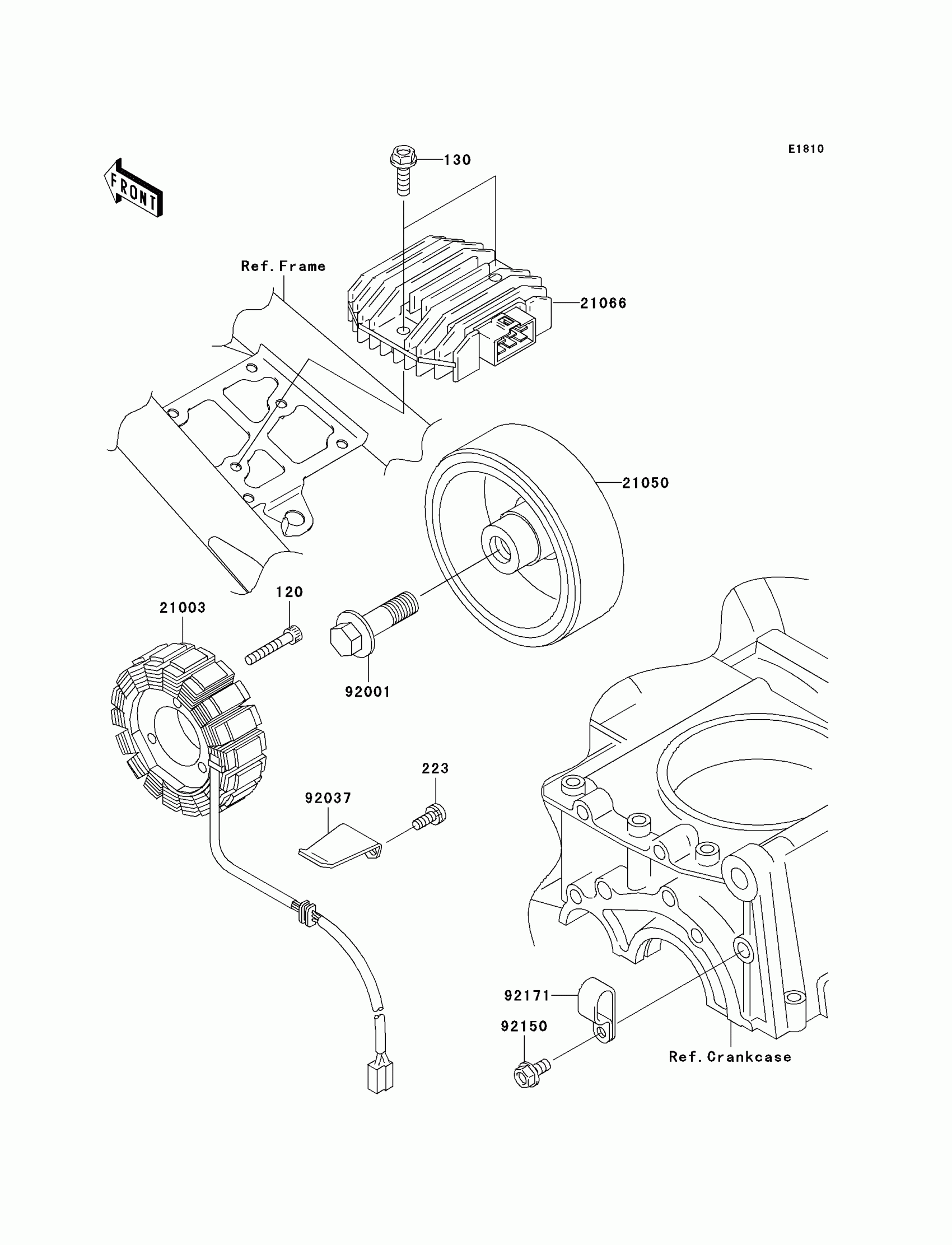

2005 Kawasaki ZR-7S (Canada Only) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X30

120P0530

1
Out of stock

130

BOLT-FLANGED

130H0620

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock

21003

STATOR

21003-1349

1

$604.42

In stock

21050

FLYWHEEL

21050-1183

1

$717.30

In stock

21066

REGULATOR-VOLTAGE

21066-1089

1

$273.17

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92037

1

$4.25

In stock

92150

BOLT,FLANGED,6X12

92150-1826

1

$3.20

In stock

92171

CLAMP

92171-1279

1

$8.93

In stock
