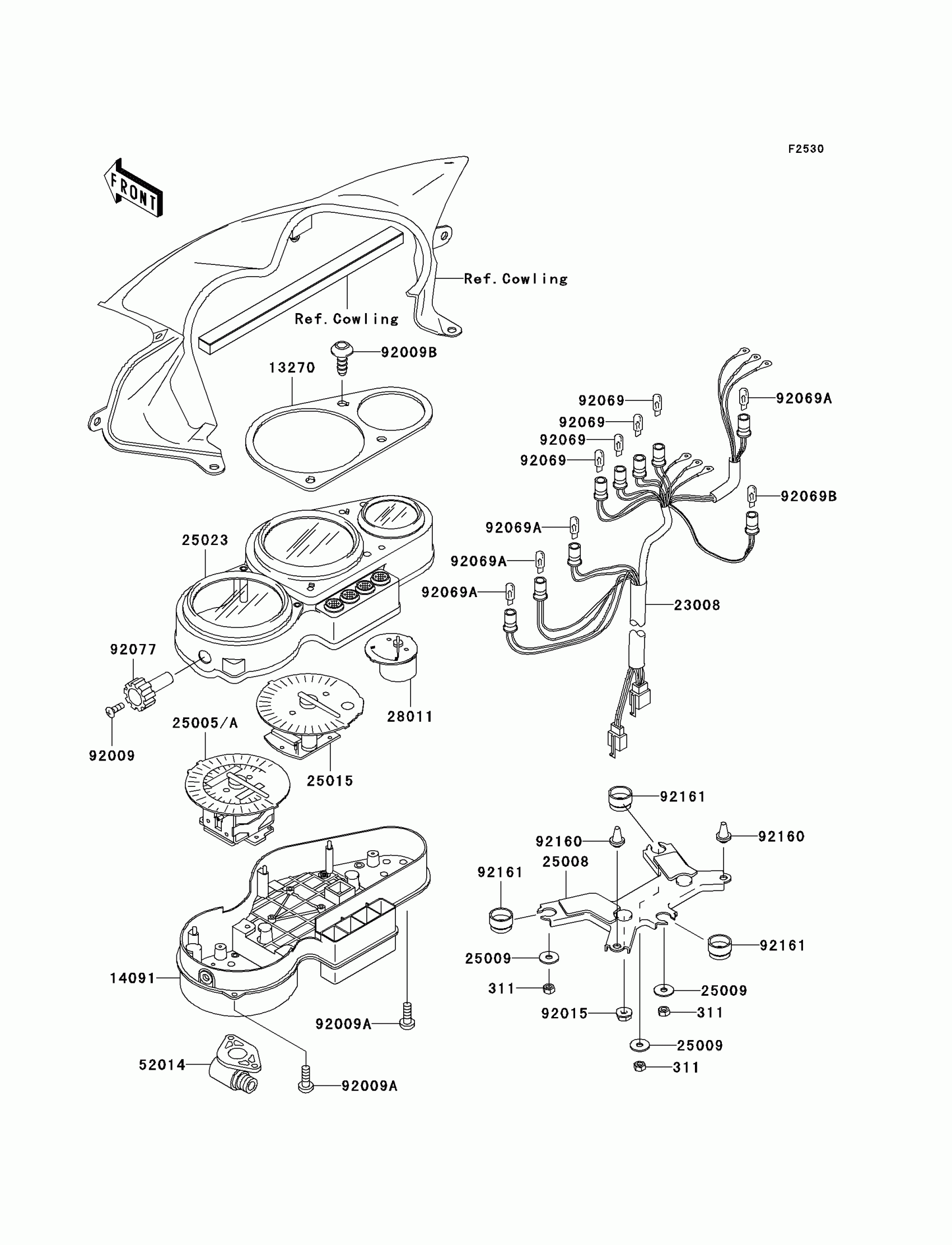

Kawasaki ZR-7S (Canada Only) Meter(s) Diagram

Description

Price

311

NUT-HEX

311C0500

Unavailable

13270

PLATE,METER

13270-1524

$65.47

14091

COVER,METER HOUSING

14091-1329

$185.79

23008

SOCKET-ASSY,METER

23008-1646

$151.50

25005

SPEEDOMETER,KPH

25005-1697

Unavailable

25008

BRACKET-METER

25008-1214

$89.46

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25015

TACHOMETER,X1000R/MIN

25015-1366

$597.86

25023

COVER-METER CASE,UPP

25023-1260

$155.52

28011

METER,FUEL

28011-1218

$132.00

52014

ELBOW,METER

52014-0002

$80.32

92009

SCREW,2X6,BLACK

92009-1172

$2.15

92009A

SCREW,TAPPING,4X14

92009-1593

$2.98

92009B

SCREW,TAPPING,5X16

92009-1720

$3.81

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,12V 1.7W,T10

92069-1059

$3.78

92069B

BULB,12V 1.7W,T6.5

92069-1070

$4.88

92077

KNOB,METER

92077-1073

$17.15

92160

DAMPER

92160-1669

$4.61

92161

DAMPER

92161-1231

$4.92
