2005 Kawasaki ZR-7S (Canada Only) Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

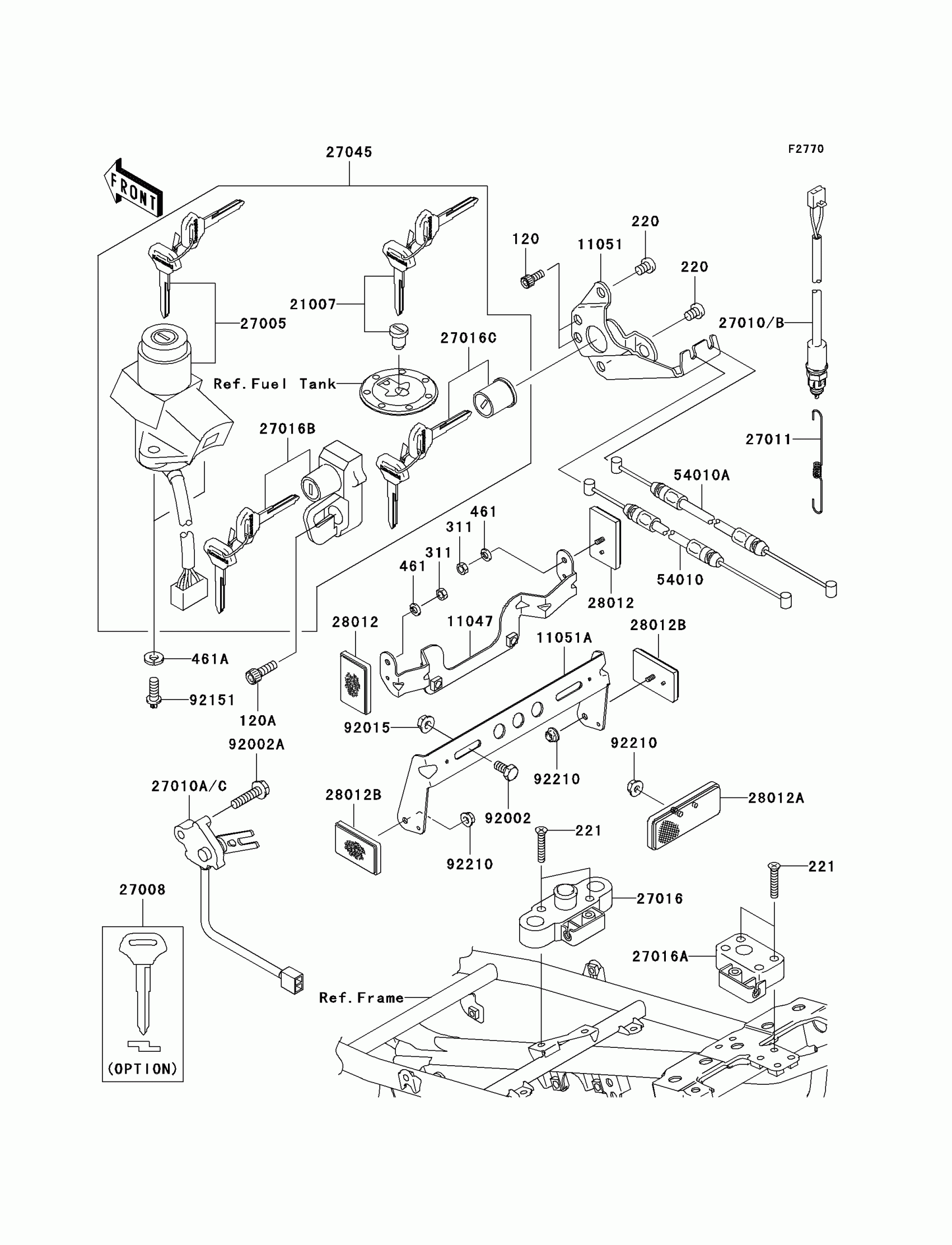

2005 Kawasaki ZR-7S (Canada Only) Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X18

120S0618

1
Out of stock

220

SCREW-PAN-CROSS

220F0608

1
Out of stock

221

SCREW-CSK-CROSS

221F0630

1
Out of stock

311

NUT-HEX

311C0500

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

461A

WASHER-SPRING

461L0600

1
Out of stock

11047

BRACKET,REFLECTOR

11047-1280

1
Out of stock

11051

BRACKET,SEAT LOCK

11051-1268

1
Out of stock

11051A

BRACKET,SIDE REFLECTOR

11051-1276

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5042

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5122

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1189

1
Out of stock

27010B

SWITCH,BRAKE LAMP

27010-1452

1
Out of stock

27010C

SWITCH,SIDE STAND

27010-1469

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-021

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

1
Out of stock

27016A

LOCK-ASSY,SEAT STRIKER,RR

27016-1113

1
Out of stock

27016B

LOCK-ASSY,HELMET

27016-5249

1
Out of stock

27016C

LOCK-ASSY,SEAT

27016-5257

1
Out of stock

27045

SWITCH-ASSY

27045-5147

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

54010

CABLE,SEAT LOCK,FR

54010-1115

1
Out of stock

54010A

CABLE,SEAT LOCK,TANDEM

54010-1116

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92151

BOLT,TORX,6X16

92151-1911

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
