2005 Kawasaki ZR-7S (Canada Only) Ignition System Diagram

← All diagrams

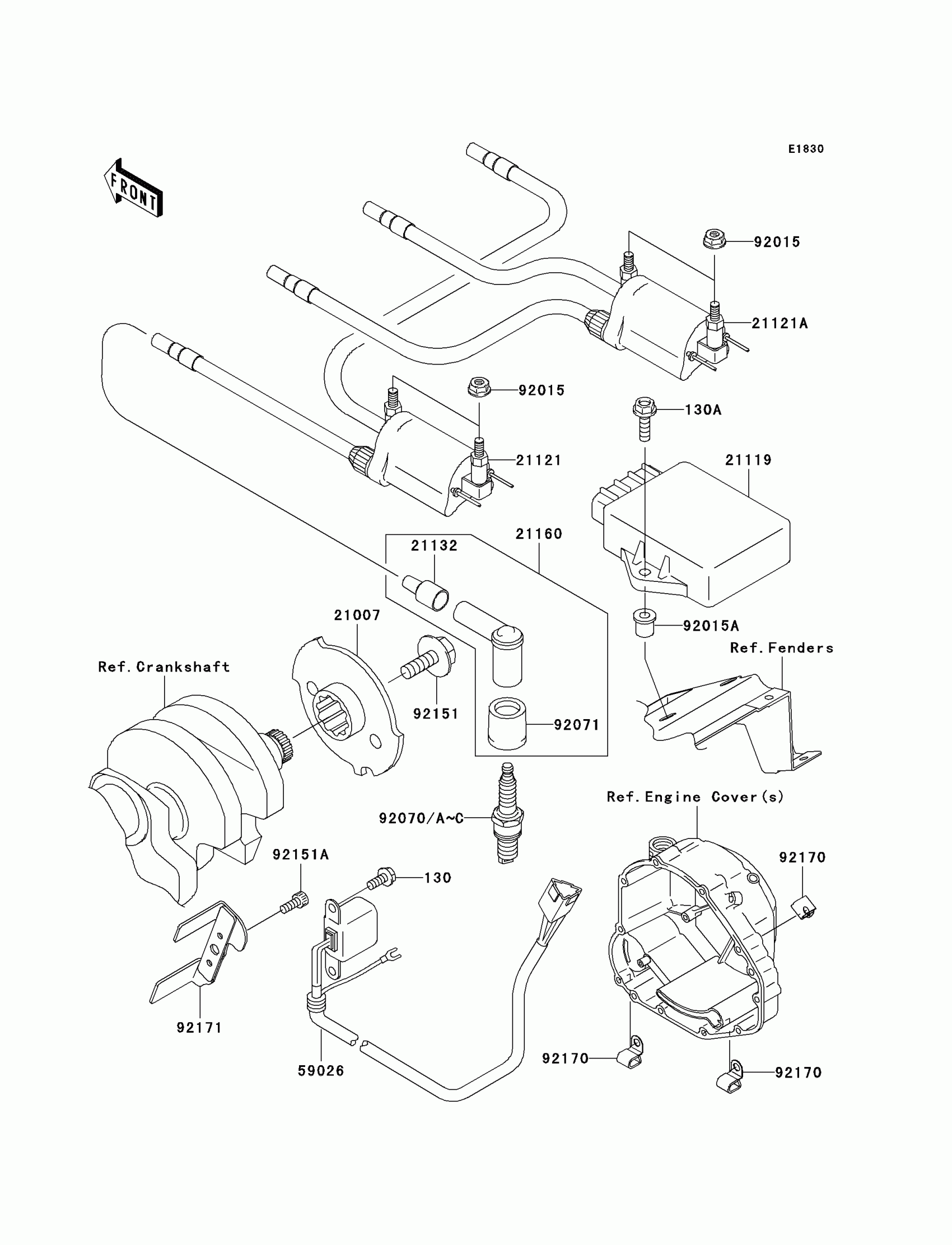

Find the part on the Ignition System diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZR-7S (Canada Only) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

21007

ROTOR

21007-1353

1
Out of stock

21119

IGNITER

21119-1541

1
Out of stock

21121

COIL-IGNITION,#1

21121-1177

1
Out of stock

21121A

COIL-IGNITION,#2

21121-1178

1
Out of stock

21132

GROMMET,HIGH TENSION

21132-005

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1085

1
Out of stock

59026

COIL-PULSING

59026-1152

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92070

Not Available As Spare Part - Friction Washer

—
Out of stock

92070A

Not Available As Spare Part - Friction Washer

1
Out of stock

92070B

PLUG-SPARK,DR9EA(NGK)

92070-1189

1
Out of stock

92070C

PLUG-SPARK,DR8EA(NGK)

92070-1199

—
Out of stock

92071

GROMMET,PLUG CAP

92071-1184

1
Out of stock

92151

BOLT,8X23

92151-1308

1
Out of stock

92151A

BOLT,SOCKET,5X12

92151-1365

1
Out of stock

92170

CLAMP

92170-1577

1
Out of stock

92171

CLAMP

92171-1150

1
Out of stock
