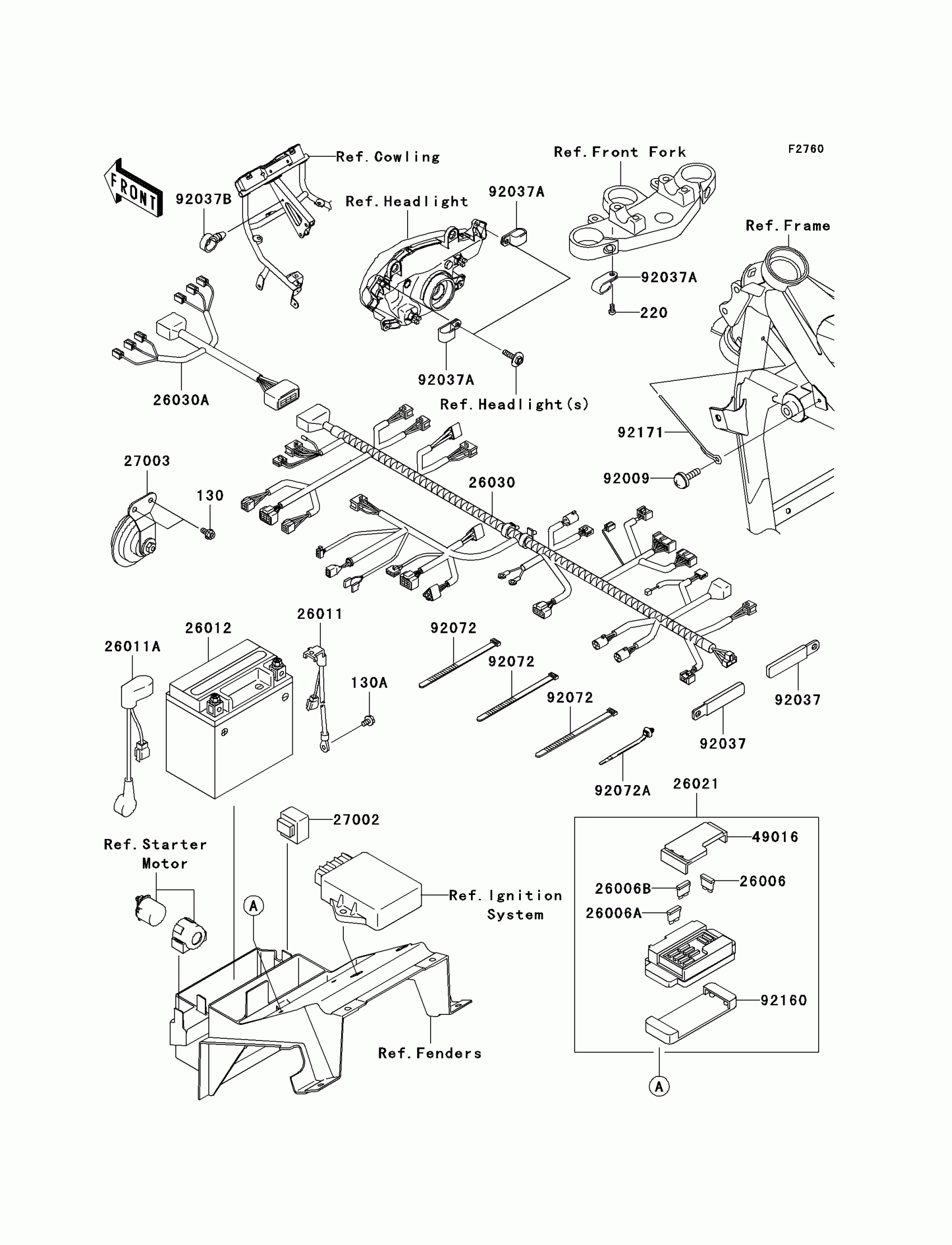

Kawasaki ZR-7S (Canada Only) Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

220

SCREW-PAN-CROS,5X10

220C0510

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26006B

FUSE,15A-B

26006-1069

$4.80

26011

WIRE-LEAD,BATTERY(-)

26011-1799

$39.83

26011A

WIRE-LEAD,BATTERY(+)

26011-1803

$46.48

26012

BATTERY,YTX12-BS,12V 10AH

26012-1330

$121.05

26021

JUNCTION BOX

26021-1104

$218.24

26030

HARNESS,MAIN

26030-1847

$424.55

26030A

HARNESS,FR

26030-1848

$95.08

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN

27003-1392

$85.47

49016

COVER-SEAL,FUSE

49016-1180

$13.29

92009

SCREW,6X14

92009-1662

$2.99

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP

92037-1608

$6.18

92037B

CLAMP,HOSE

92037-1827

$5.69

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92160

DAMPER,JUNCTION BOX

92160-1650

$12.78

92171

CLAMP

92171-1315

$8.69
